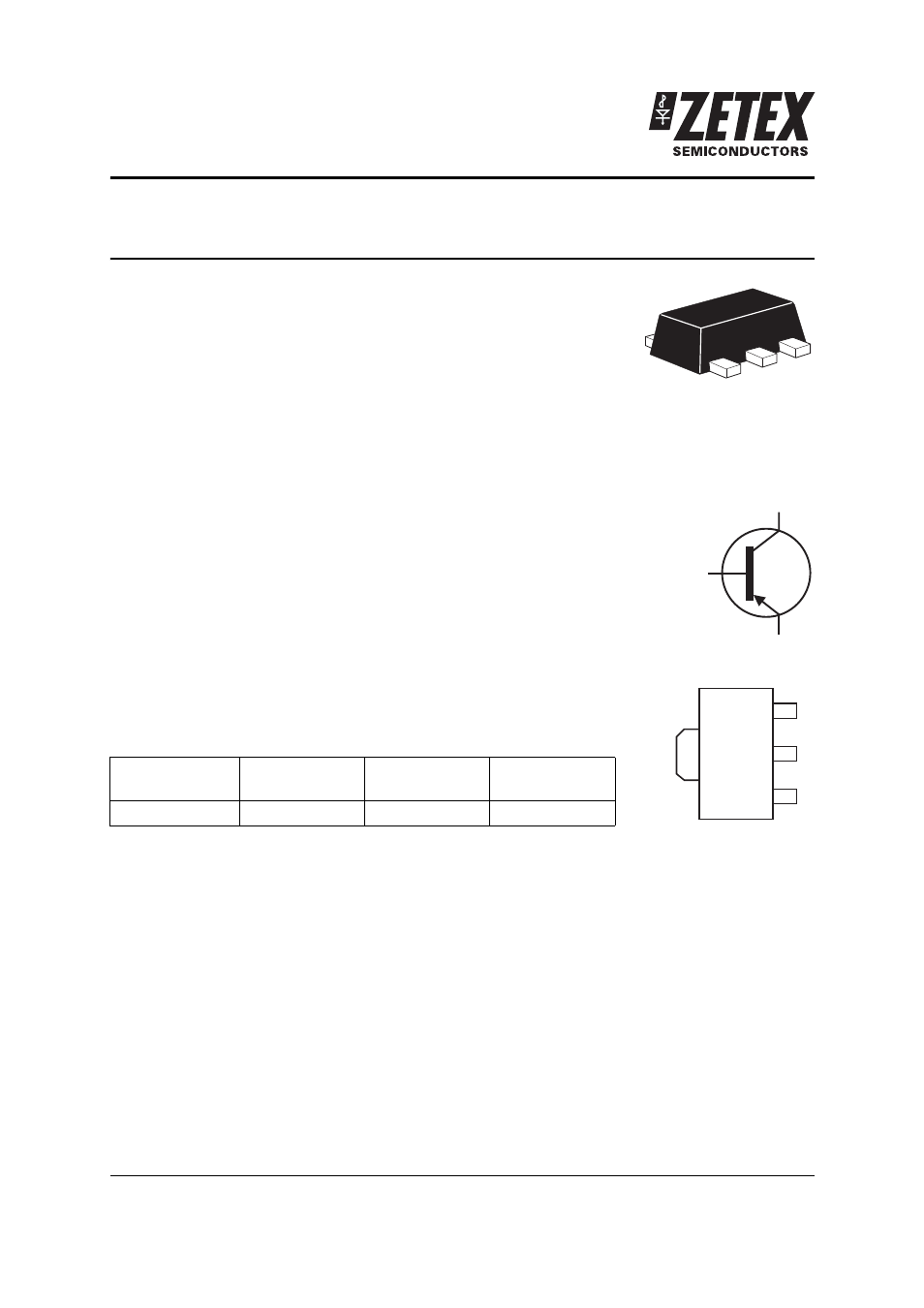

ZXTP5401Z
150V, SOT89, PNP High voltage transistor
Summary
BV
CEO
> -150V
BV
EBO
> -5V
I
C(cont)
= -600mA
P
D
= 1.2W
Complementary part number ZXTN5551Z
Description
A high voltage PNP transistor in a small outline surface mount package.
Features
•
150V rating
•
SOT89 package
Applications
•
High voltage amplification
Ordering information
Device marking
P01
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP5401ZTA
7
12
1000
C
E
B
C
E
Pinout - top view
C
B
