ZXTP03200BZ
2 0 0 V P N P L O W V
C E ( s a t )
T R A N S I S T O R I N S O T - 8 9
Features
• BV
CEO
> -200V
• BV
ECO
> -2V
•
Continuous current I
C(cont)
= 2A
•
V
CE(sat
< -160mV @ -1A
•
R
CE(sat)
=130m
Ω
•
P
D
= 2.4W
•
2 Amps continuous current
•
Up to 5 Amps peak current
•
Very low saturation voltage
•
Enhanced switching performance
Applications
• DC-DC
Convertors
Mechanical Data
• Case:
SOT-89
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish
•
Weight: 0.052 grams (approximate)
Ordering Information
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTP03200BZTA 1N2
7
12
1000

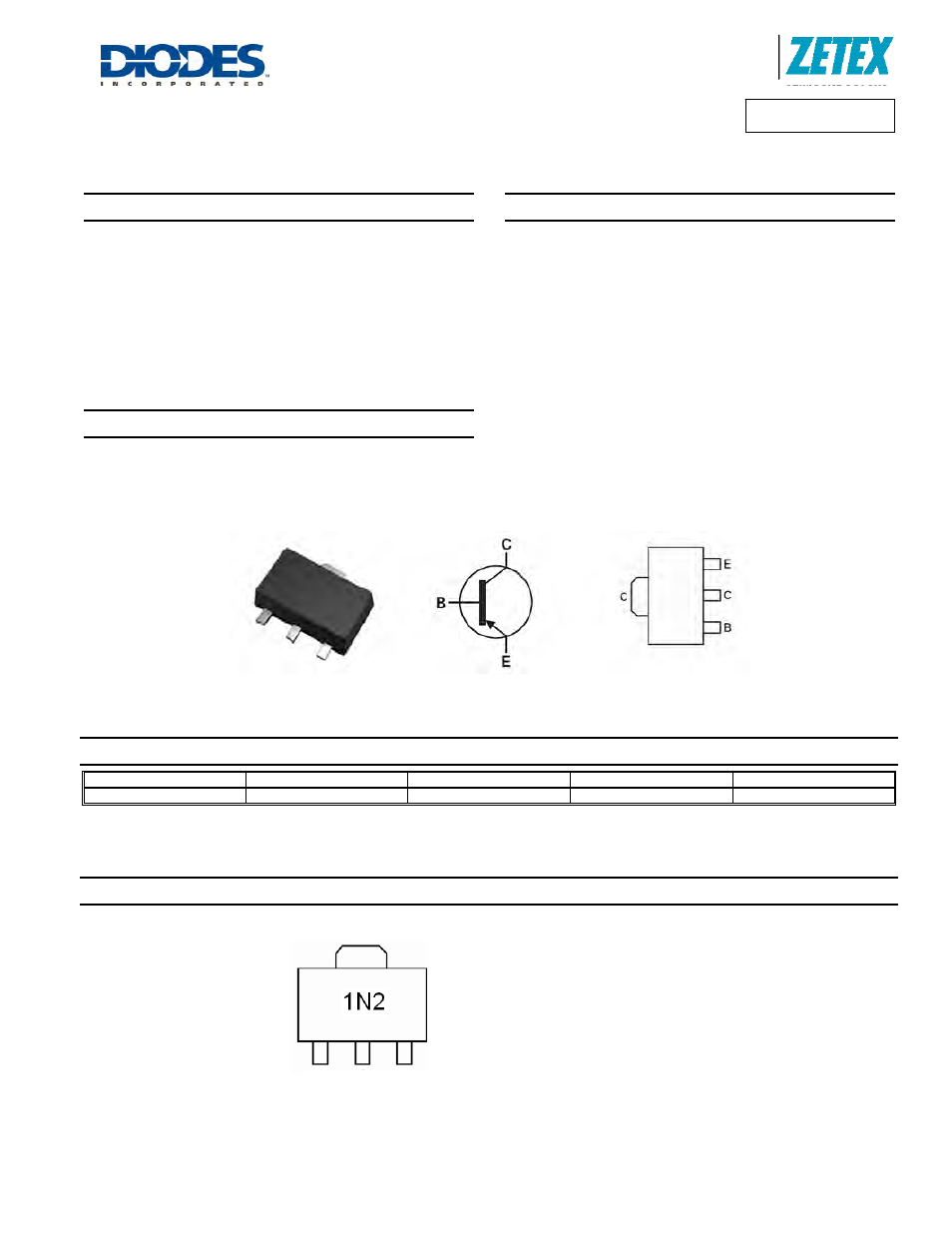

Marking Information
1N2 = Product type Marking Code
Top View
Device symbol
Pin Configuration
SOT-89
