140V PNP SILICON PLANAR MEDIUM POWER TRANSISTOR IN SOT223
Features
• BV
CEO
> -140V
•
I
C
= -4A high Continuous Collector Current
•
I
CM
= -10A Peak Pulse Current
•
Low saturation voltage V
CE(sat)
< -120mV @ I
C
= -1A
•
R
SAT
= 92m
Ω for a low equivalent On-Resistance
•
h
FE
specified up to -10A for a high gain hold up
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Application
• Motor
driving
• Line
switching
•
High side switches
•
Subscriber line interface cards (SLIC)
Mechanical Data
• Case:
SOT223
•
Case material: molded plastic. “Green” molding compound.
•
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight: 0.112 grams (approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTP2014GTA ZXTP2014
7
12
1,000
ZXTP2014GTC ZXTP2014
13
12
4,000
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
ZXTP2014 = Product Type Marking Code

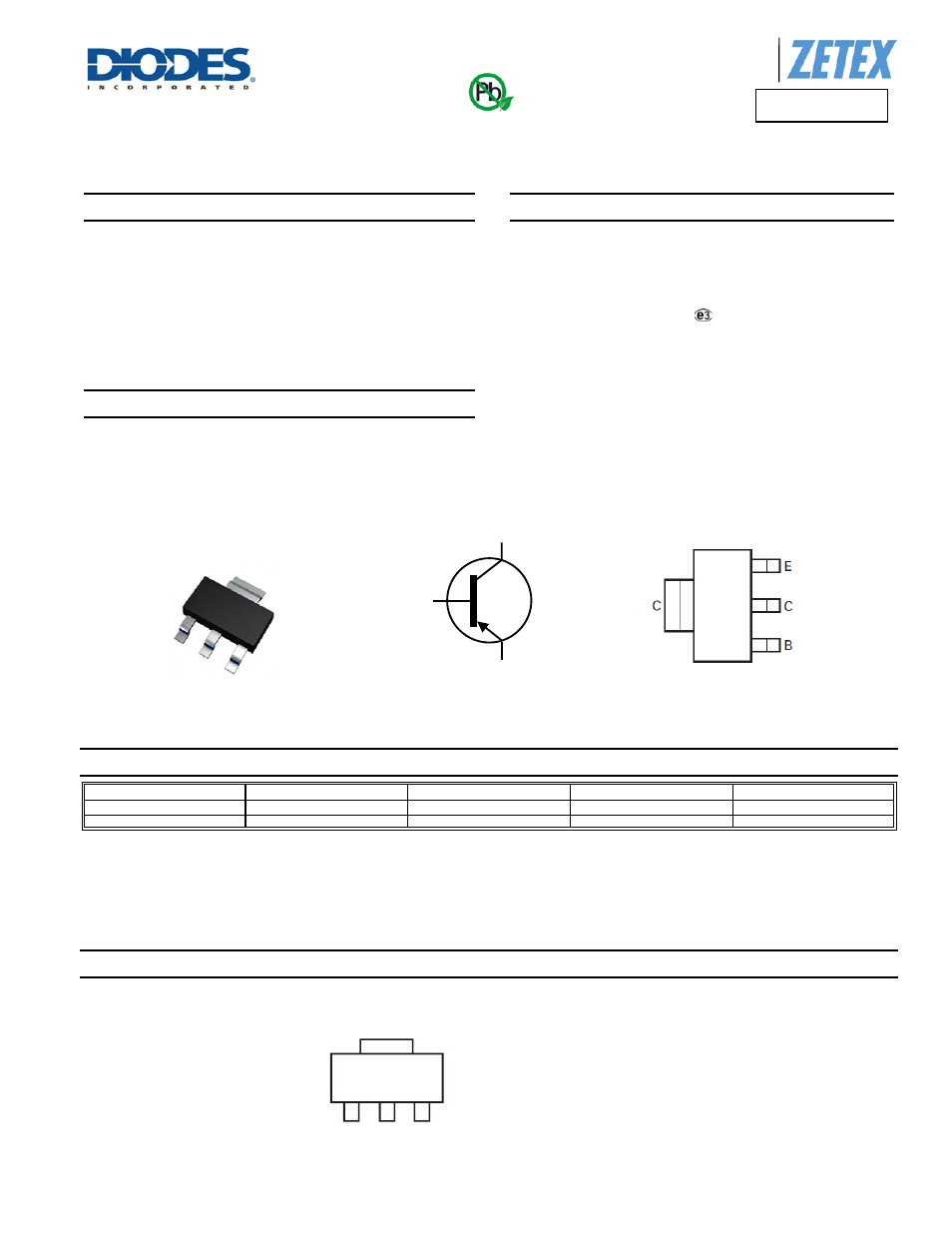

SOT223
Top View
Device Symbol
Top View
Pin-Out
ZXTP
2014
Green
C
E
B
