ZXTP4003G
Datasheet Number: DS35459 Rev 1 - 2
1 of 5
December 2011
© Diodes Incorporated
A Product Line of
Diodes Incorporated
ZXTP4003G
100V PNP LED DRIVING TRANSISTOR IN SOT223
Features
• BV
CEO
> -100V
•
Maximum continuous current I
C
= -1A
•
h
FE
> 100 @ I
C
= -150mA, V
CE
= -0.2V
•
Lead Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Applications
•
LED TV backlight
Mechanical Data
• Case:
SOT223
•
Case material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish
•
Weight: 0.112 grams (Approximate)
Ordering Information
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTP4003GTA ZXTP4003
7
12
1,000
Notes:
1. No purposefully added lead.
2. “Green” devices, Halogen and Antimony Free, Diodes Inc’s “Green” Policy can be found on our website at

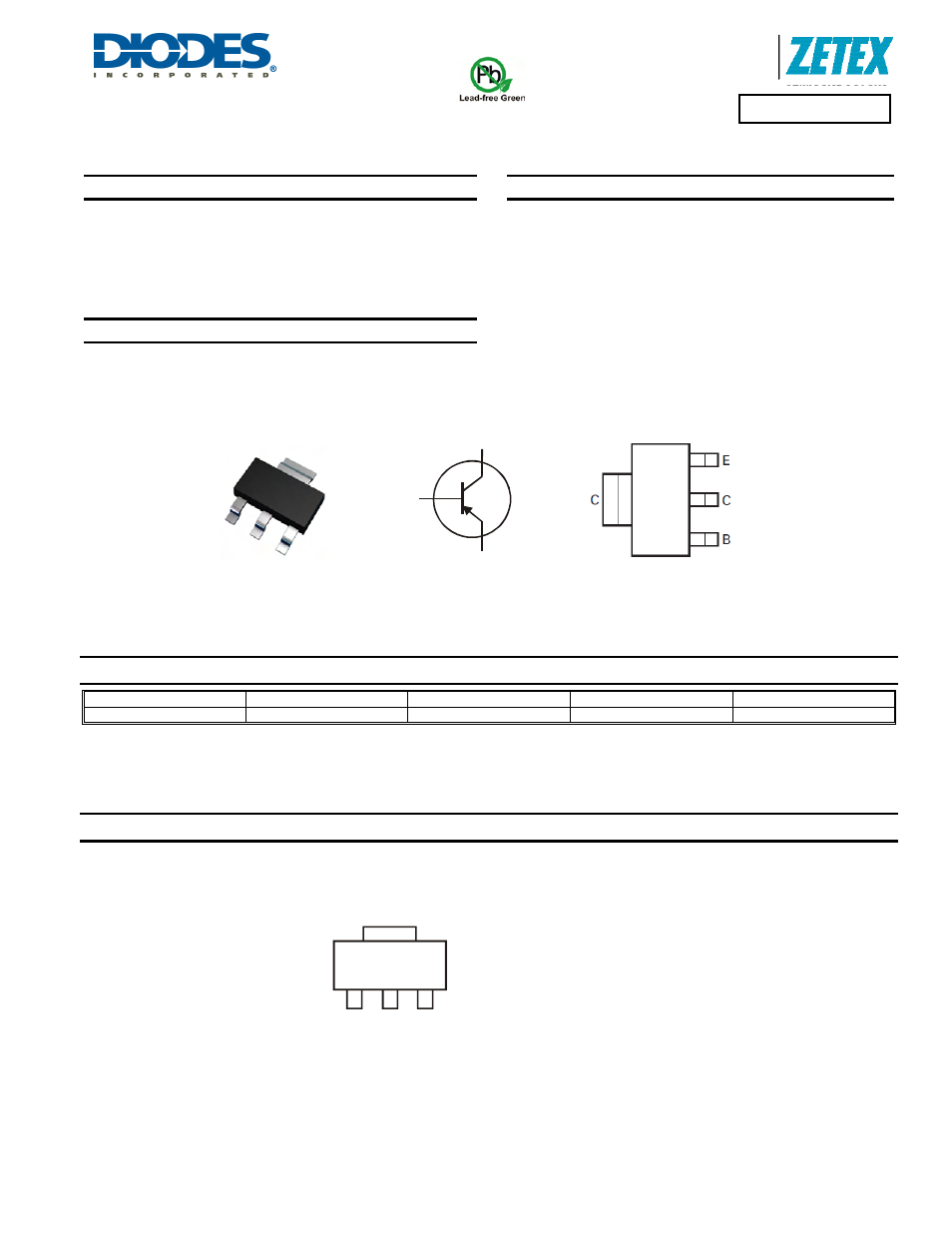

Marking Information
SOT223
Top View
Device Symbol
Top View
Pin-Out
E
B
C
ZXTP4003 = Product type Marking Code
ZXTP
4003
