MMBTA05 / MMBTA06
Document number: DS30037 Rev. 14 - 2
6 of 7
www.diodes.com
November 2013
© Diodes Incorporated
MMBTA05 / MMBTA06

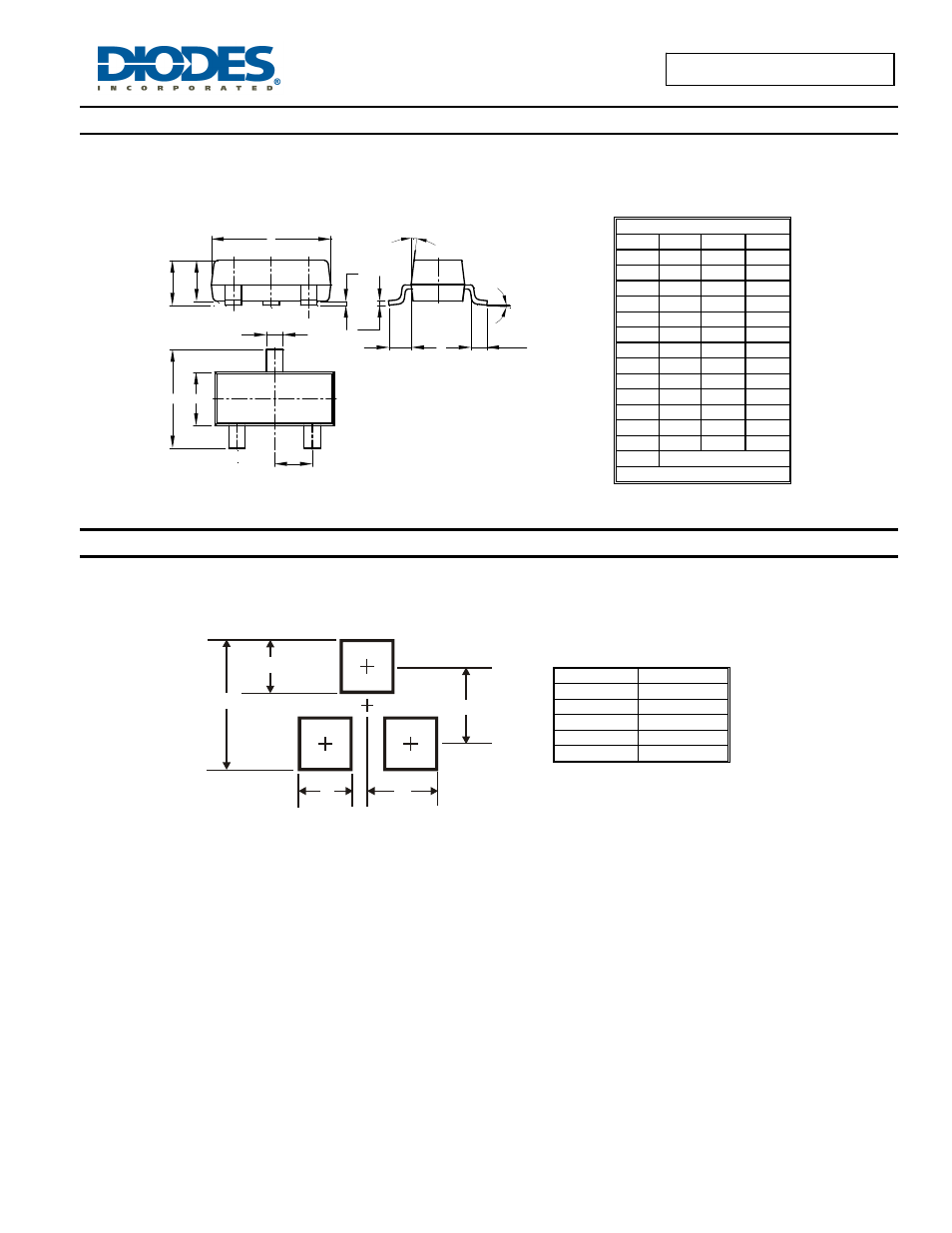

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOT23
Dim Min Max Typ
A 0.37 0.51 0.40
B 1.20 1.40 1.30
C 2.30 2.50 2.40
D 0.89 1.03 0.915
F 0.45 0.60 0.535
G 1.78 2.05 1.83
H 2.80 3.00 2.90
J 0.013 0.10 0.05
K 0.890 1.00 0.975
K1 0.903 1.10 1.025
L 0.45 0.61 0.55
L1 0.25 0.55 0.40
M 0.085 0.150 0.110
a  8°
All Dimensions in mm
Dimensions Value (in mm)
Z 2.9
X 0.8
Y 0.9
C 2.0
E 1.35
X E
Y
C
Z
J
K 1 K
L 1
H
L
M
A l l 7 °
A
C B
D
a
