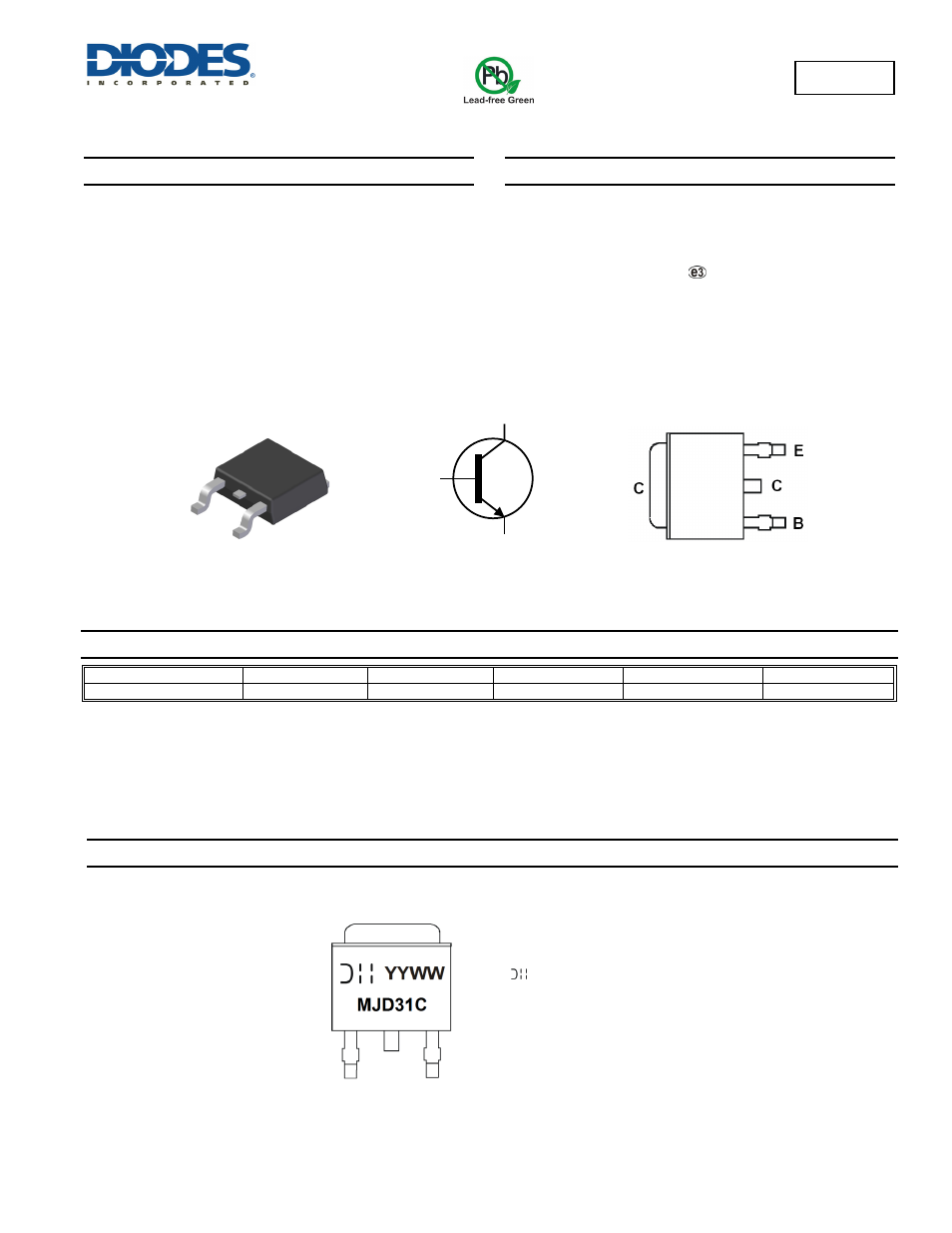

MJD31C
Document number: DS31625 Rev. 6 - 2
1 of 7
March 2014
© Diodes Incorporated
MJD31C
100V NPN HIGH VOLTAGE TRANSISTOR IN TO252
Features
BV
CEO
> 100V
I
C
= 3A high Continuous Collector Current
I
CM
= 5A Peak Pulse Current
Ideal for Power Switching or Amplification Applications
Complementary PNP Type: MJD32C
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic, "Green" Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.34 grams (approximate)
Ordering Information
(Note 4)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
MJD31C-13 AEC-Q101
MJD31C
13
16
2,500
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green"
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
Device Schematic
Pin Out Configuration
Top view
MJD31C = Product Type Marking Code
= Manufacturers’ code marking
YYWW = Date Code Marking
YY = Last Digit of Year (ex: 10 = 2010)
WW = Week Code (01 – 53)
TO252 (DPAK)
C
E
B
