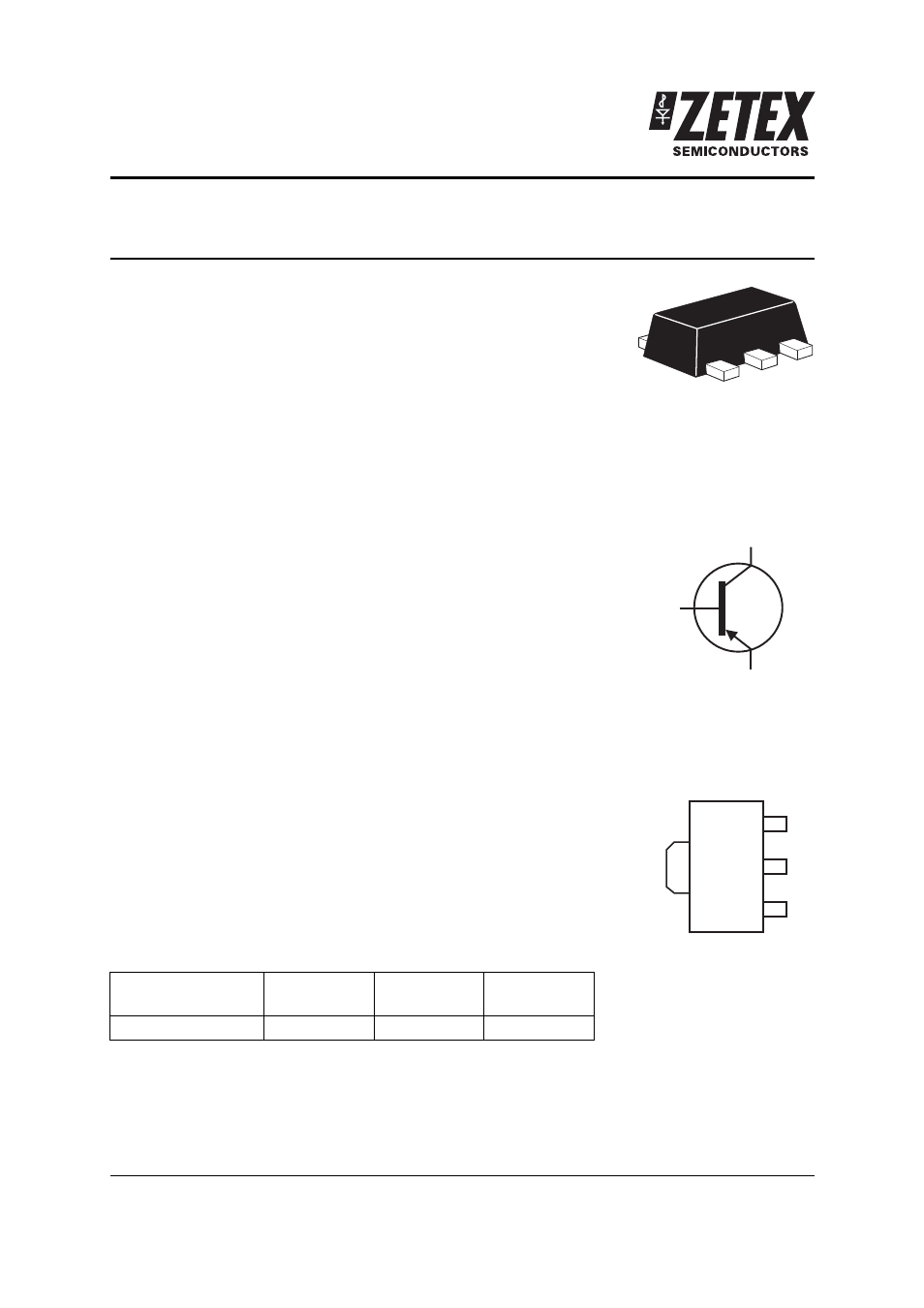

ZXTP25040DZ
40V PNP medium power transistor in SOT89
Summary
BV
CEO
> -40V
BV
ECO
> -3V
I
C(cont)
= -3.5A
R
CE(sat)
= 55m
⍀
V
CE(sat)
< -90mV @ 1A
P
D
= 2.4W
Complementary part number ZXTN25040DZ
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it ideally
suited to applications where space is at a premium.
Features
•
High power dissipation SOT89 package
•
High peak current
•
Low saturation voltage
•
3V reverse blocking voltage
Applications
•
MOSFET and IGBT gate driving
•
DC - DC converters
•
Motor drive
•
High side driver
Ordering information
Device marking
•
1L6
Device
Reel size
(inches)
Tape width
(mm)
Quantity
per reel
ZXTP25040DZTA
7
12
1000
C
E
B
C
E
Pinout - top view
C
B
