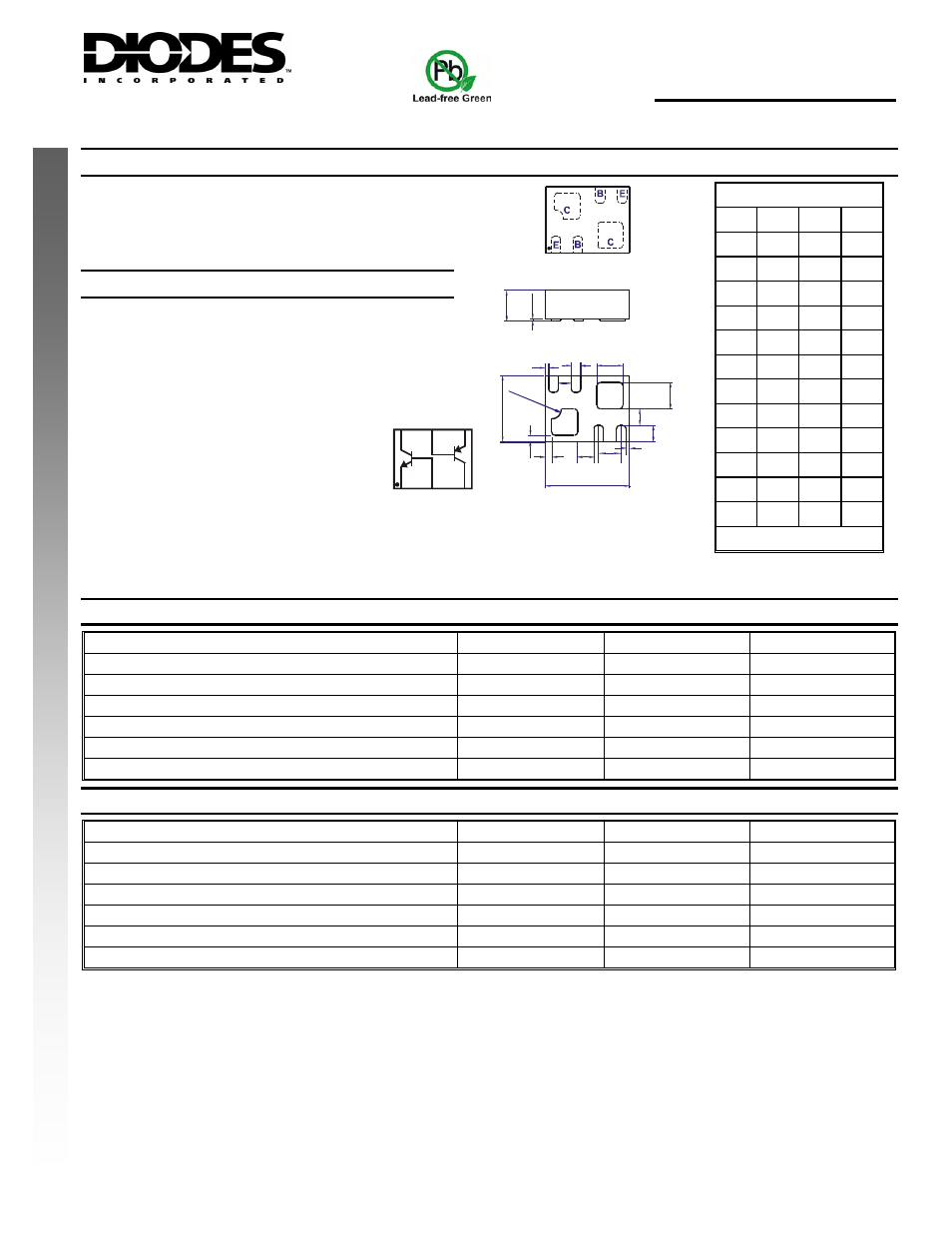

MMDT3946LP4
COMPLEMENTARY NPN / PNP SURFACE MOUNT TRANSISTORS
Features
•
Complementary Pair: One 3904 (NPN) and One 3906 (PNP)
• Epitaxial Planar Die Construction
•
Ideally Suited for Automated Assembly Processes
•
Lead Free by Design/RoHS Compliant (Note 1)
•
“Green” Device (Note 2)
Mechanical Data
• Case: DFN1310H4-6
• Case Material: Molded Plastic. “Green Molding”
Compound. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020C
•
Terminals: Finish – NiPdAu over Copper leadframe (Lead
Free Plating) Solderable per MIL-STD-202, Method 208
•
Marking & Type Code Information: See Page 4
•
Ordering Information: See Page 4
Bottom View
Side View
G H
B
K
E
C
D
R0.15
0
Top View
A
L
L
N
M
N D
Z
Z
* Dimensions D, K, L, N Repeat 4X
** Dimensions E, M, Z Repeat 2X
DFN1310H4-6
Dim Min Max Typ
A 1.25 1.38 1.30
B 0.95 1.08 1.00
C 0.20 0.30 0.25
D* - - 0.10
E** - - 0.20
G - 0.40 -
H 0 0.05 0.02
K* 0.10 0.20 0.15
L* 0.30 0.50 0.40
M** - - 0.35
N* - - 0.25
Z** - - 0.05
All Dimensions in mm
NEW PROD
UC
T
C
2
B
2
B
1
E
1
E
2
C
1
Internal Schematic
(TOP VIEW)
E
1
, B
1
, C
1
= PNP3906 Section
E
2
, B
2
, C
2
= NPN3904 Section
Maximum Ratings, NPN 3904 Section
@T A = 25°C unless otherwise specified
Characteristic Symbol Value Unit
Collector-Base Voltage V
CBO
60 V
Collector-Emitter Voltage V
CEO
40 V
Emitter-Base Voltage V
EBO
6.0 V
Collector Current – Continuous I
C
200 mA
Power Dissipation (Notes 3, 4) P
d
200 mW
Thermal Resistance, Junction to Ambient (Note 3) R θJA 625 °C/W
Maximum Ratings, PNP 3906 Section
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Collector-Base Voltage V
CBO
-40 V
Collector-Emitter Voltage V
CEO
-40 V
Emitter-Base Voltage V
EBO
-5.0 V
Collector Current - Continuous (Note 1) I
C
-200 mA
Power Dissipation (Notes 3, 4) P
d
200 mW
Thermal Resistance, Junction to Ambient (Note 3) R θJA 625 °C/W
Notes: 1. No purposefully added lead.
2. Diodes Inc.’s “Green” policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB.
4. Maximum combined dissipation.
DS30822 Rev. 4 - 2 1 of 5
www.diodes.com
