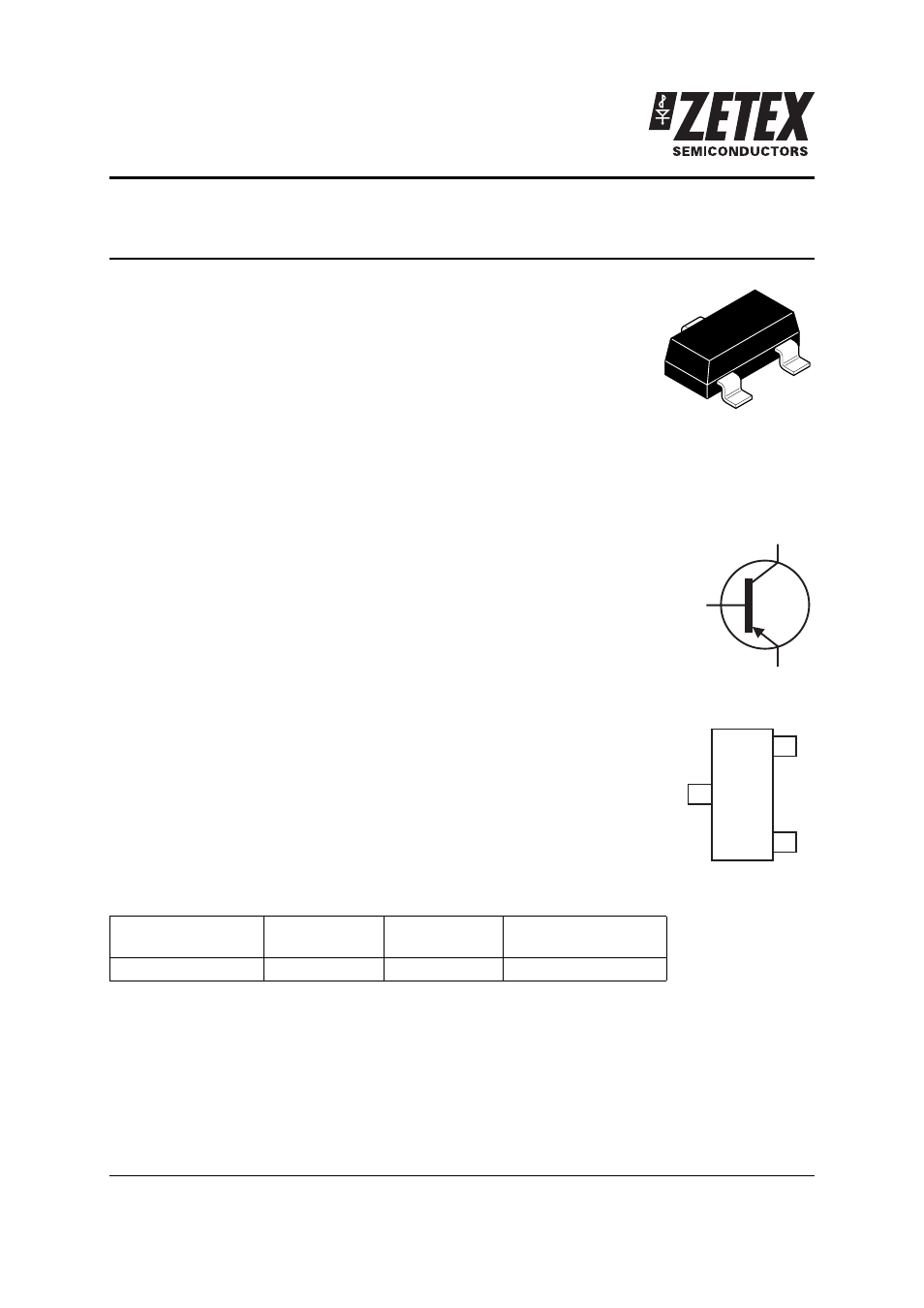

ZXTP25020DFL
20V, SOT23, PNP low power transistor
Summary
BV
CEO
> -20V
BV
ECO
> -4V
I
C(cont)
= 1.5A
V
CE(sat)
< 85 mV @ 1A
R
CE(sat)
= 54m
⍀
P
D
= 350mW
Complementary part number ZXTN25020DFL
Description
Advanced process capability has been used to achieve high current gain
hold up making this device ideal for applications requiring high pulse
currents.
Features
•
High peak current
•
Low saturation voltage
Applications
•
DC-DC converters
•
MOSFET and IGBT gate driving
Ordering information
Device marking
1F2
Device
Reel size
(inches)
Tape width
(mm)
Quantity per reel
ZXTP25020DFLTA
7
8
3000
C
E
B
C
E
B
Pinout - top view
