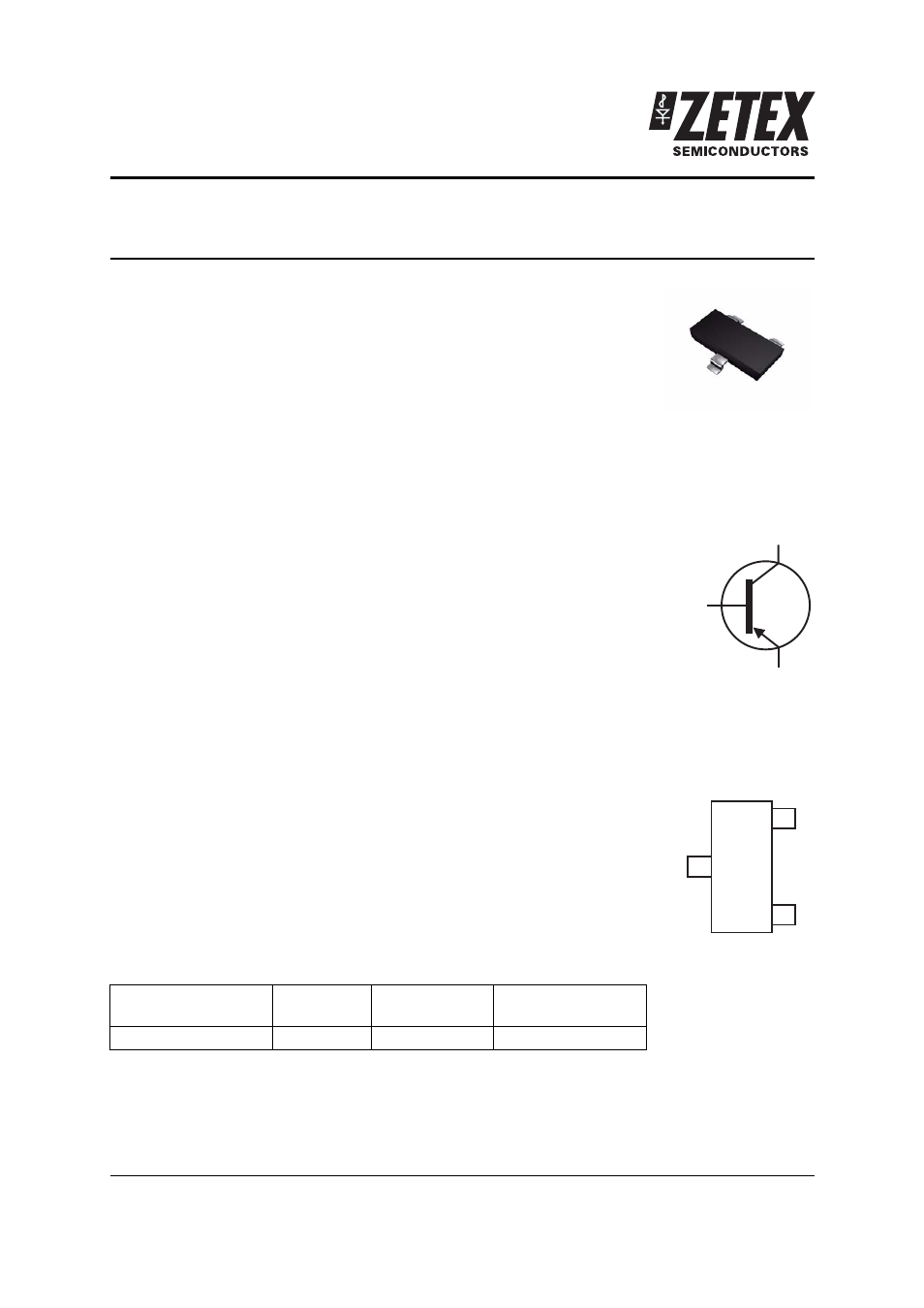

ZXTP25020CFH
20V, SOT23, PNP medium power transistor
Summary
BV
CEO
> -20V
BV
ECO
> -7V
I
C(cont)
= -4A
R
CE(sat)
= 34m
⍀
V
CE(sat)
< -55mV @ 1A
P
D
= 1.25W
Complementary part number ZXTN25020CFH
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it ideally
suited to applications where space is at a premium.
Features
•
High power dissipation SOT23 package
•
High peak current
•
Low saturation voltage
•
7V reverse blocking voltage
Applications
•
MOSFET and IGBT gate driving
•
DC - DC converters
•
Motor drive
•
High side driver
Ordering information
Device marking
1B2
Device
Reel size
(inches)
Tape width
(mm)
Quantity per reel
ZXTP25020CFHTA
7
8
3,000
C
E
B
C
E
B
Pinout - top view
