ZXTP19020DZ
20V PNP HIGH GAIN TRANSISTOR IN SOT89
Features
• BV
CEO
> -20V
•
High current capability Max Continuous Current I
C
= -6A
•
Low saturation voltage V
CE(sat)
< -47mV @ I
C
= -1A
•
R
CE(sat)
= 28m
Ω
•
P
D
= 2.4W
•
Complementary part number ZXTN19020DZ
•
Lead Free, RoHS Compliant (Note 1)
•
Halogen and Antimony Free, “Green” Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT89
•
Moisture Sensitivity: Level 1 per J-STD-020
•
UL Flammability Rating 94V-0
•
Terminals: Matte Tin Finish
•
Weight: 0.052 grams (Approximate)
Application
•
Power disconnect switch
• Battery
chargers
•
High side drivers
• Motor
drive
Ordering Information
(Note 3)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
ZXTP19020DZTA
1M1 7
12
1,000
Notes:
1. No purposefully added lead.
2. Halogen and Antimony Free. Diodes Inc’s “Green” Policy can be found on our website at
3. For packaging details, go to our website at

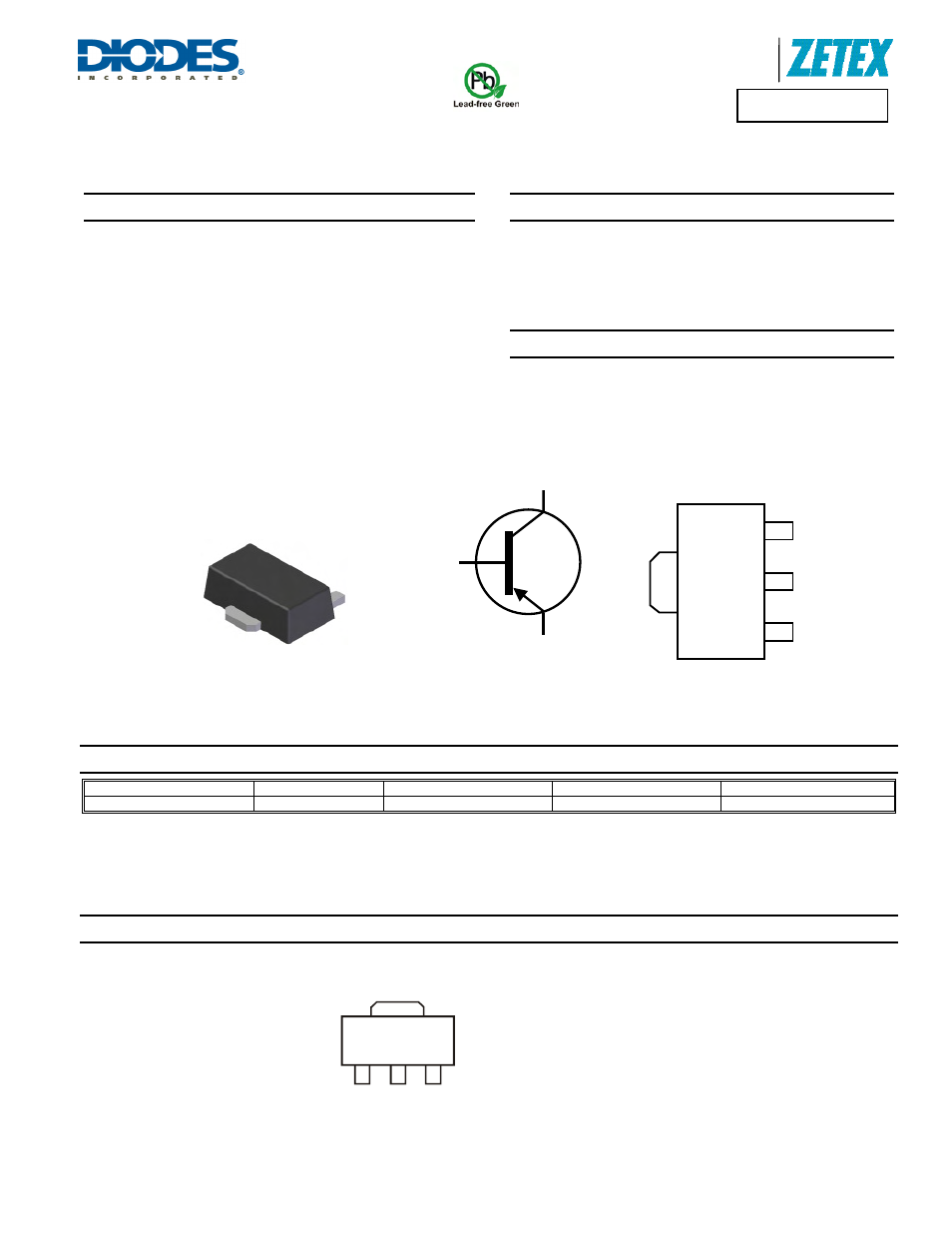

Marking Information
Top View
SOT89
Device symbol
Pin-out Top
1M1 = Product Type Marking Code
C
E
B
C
E
C
B
1M1
