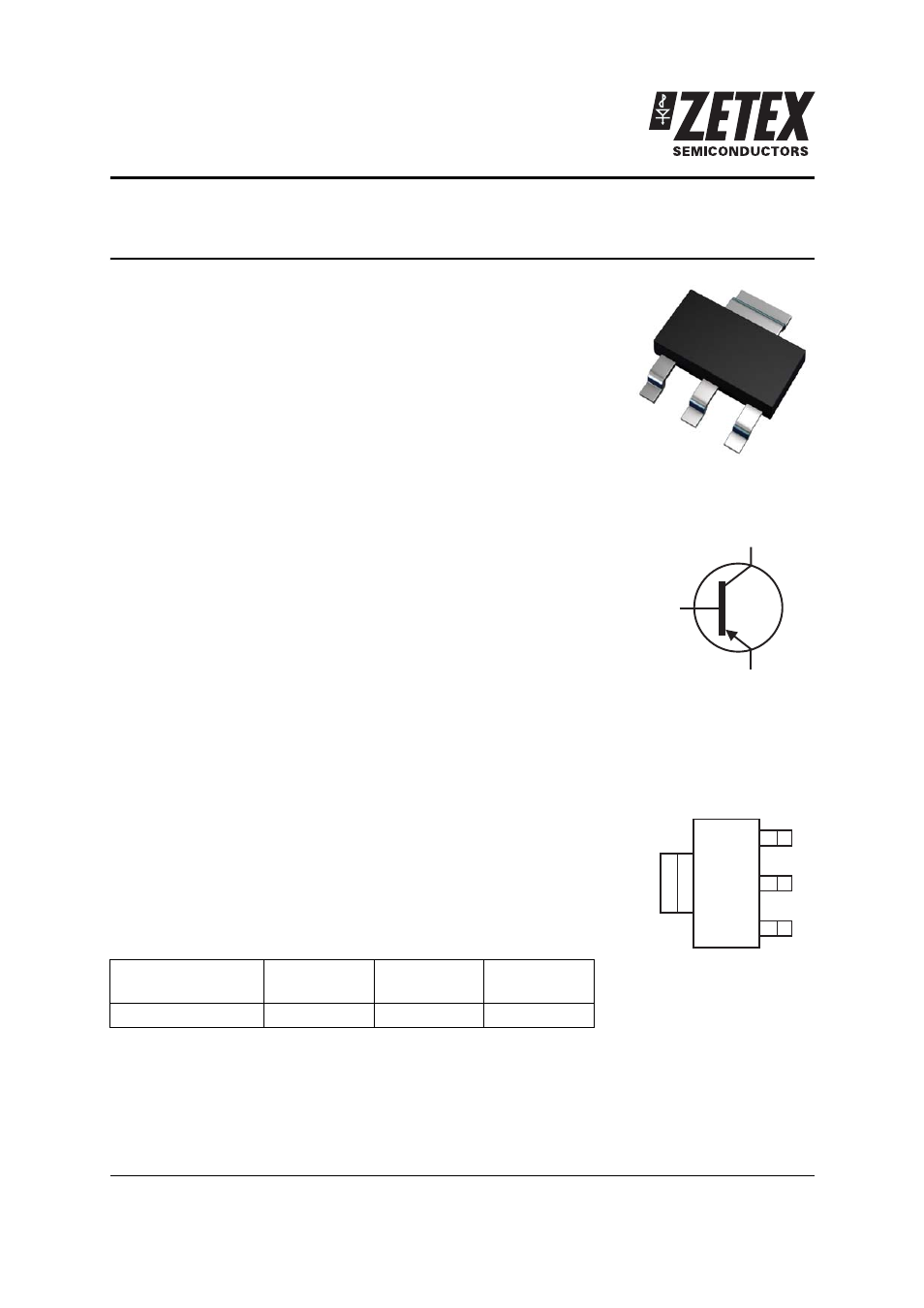

ZXTP19020DG
20V PNP high gain transistor in SOT223

Summary

BV

CEO

> -20V

BV

ECO

> -4V

I

C(cont)

= 8A

V

CE(sat)

< -47mV @ -1A

R

CE(sat)

= 28m

P

D

= 3.0W

Complementary part number ZXTN19020DG

Description

Packaged in the SOT223 outline this new low saturation PNP transistor
offers extremely low on state losses making it ideal for use in DC-DC
circuits and various driving and power management functions.

Features

Higher power dissipation SOT223 package

High gain

High peak current

Low saturation voltages

4V reverse blocking voltage

Applications

Power disconnect switch

High side drivers

Motor drive

Ordering information

Device marking

ZXTP19020D

Device

Reel size

(inches)

Tape width

(mm)

Quantity

per reel

ZXTP19020DGTA

7

12

1000

C

E

B

C

E

C

B

Pinout - top view
