MMSZ5221B - MMSZ5259B
Document number: DS18010 Rev. 27 - 2
4 of 5
www.diodes.com
September 2012
© Diodes Incorporated
MMSZ5221B - MMSZ5259B

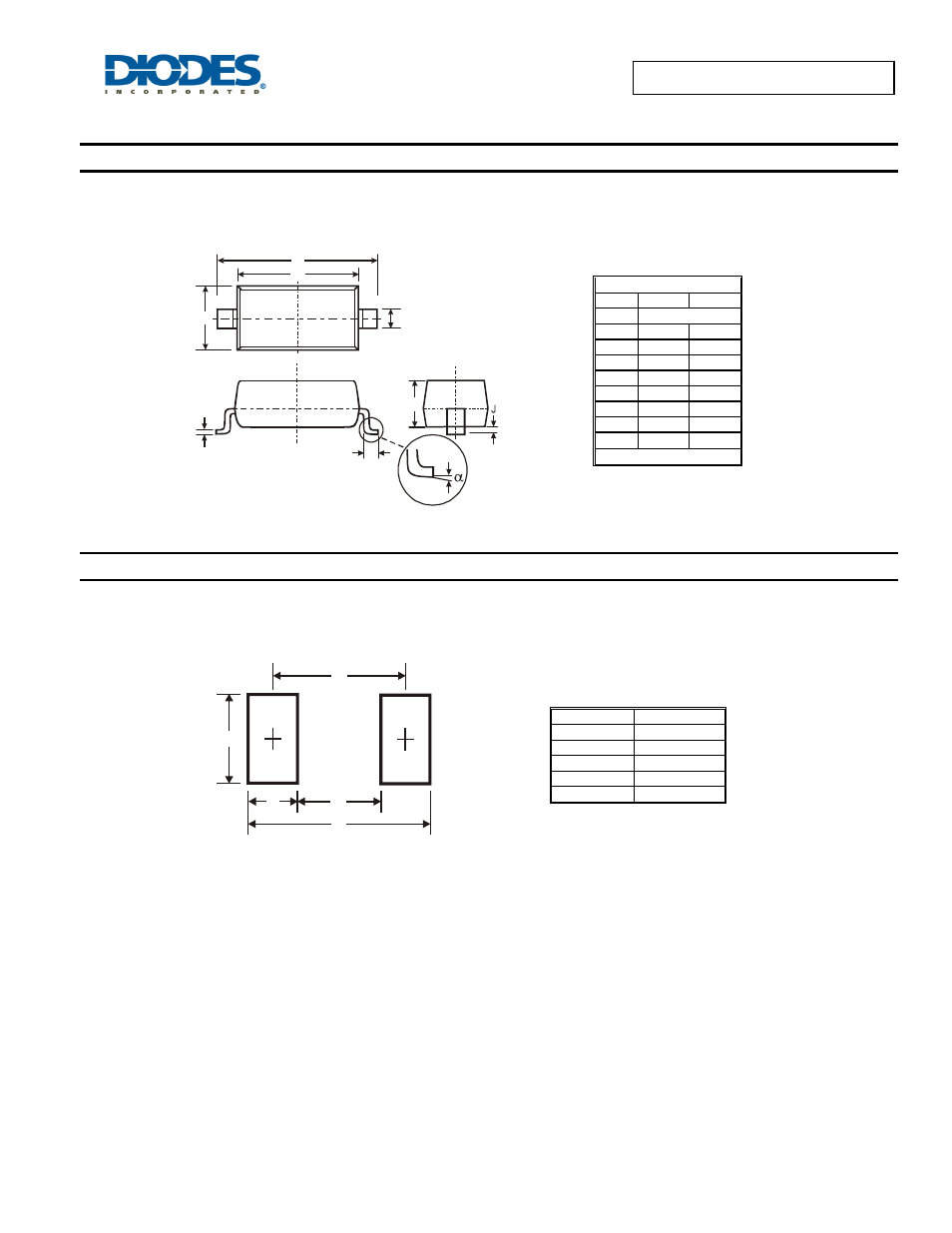

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOD123
Dim Min Max
A 0.55 Typ
B 1.40 1.70
C 3.55 3.85
H 2.55 2.85
J 0.00 0.10
K 1.00 1.35
L 0.25 0.40
M 0.10 0.15
α 0 8°
All Dimensions in mm
Dimensions Value (in mm)
Z 4.9
G 2.5
X 0.7
Y 1.2
C 3.7
K
L
M
C
H
B A
Z
X
C
G Y
