MURS140 - MURS160
Document number: DS30130 Rev. 11 - 2
1 of 5
www.diodes.com
October 2012
© Diodes Incorporated

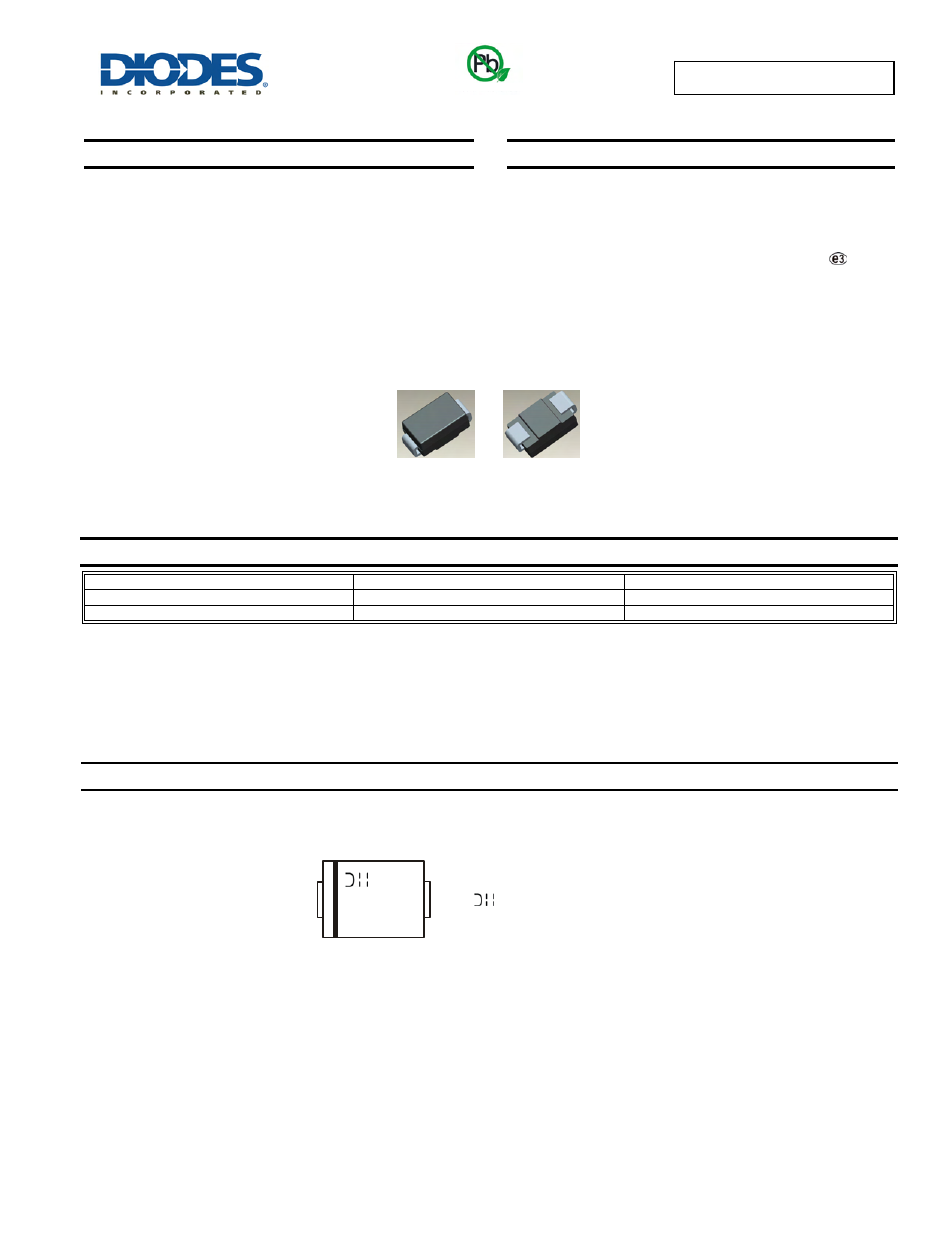

MURS140 - MURS160
1.0A SURFACE MOUNT SUPER-FAST RECTIFIER
Features
•
Glass Passivated Die Construction
• Super-Fast Recovery Time For High Efficiency
•
Surge Overload Rating to 35A Peak
•
Ideally Suited for Automated Assembly
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Mechanical Data
•
Case: SMB
• Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish (Lead Free Plating). Solder Plated
Terminal - Solderable per MIL-STD-202, Method 208
• Polarity: Cathode Band or Cathode Notch
• Weight: 0.093 grams (approximate)
Ordering Information
(Note 5)
Part Number Case Packaging
MURS140-13-F SMB 3000/Tape & Reel
MURS160-13-F SMB 3000/Tape & Reel
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
5. For packaging details, go to our website at http://www.diodes.com.
Marking Information
Top View Bottom View
Green
U1xB = Product type marking code
U1GB = MURS140
U1JB = MURS160
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 2 for 2002)
WW = Week code (01 to 53)
YWW
U1xB
SMB
