MURS120
Document number: DS30179 Rev. 8 - 2
3 of 4
www.diodes.com
September 2010
© Diodes Incorporated
MURS120
Ordering Information
(Note 7)
Part Number Case Packaging
MURS120 -13-F SMB 3000/Tape & Reel
Notes: 7. For packaging details, go to our website at http://www.diodes.com.
Marking Information

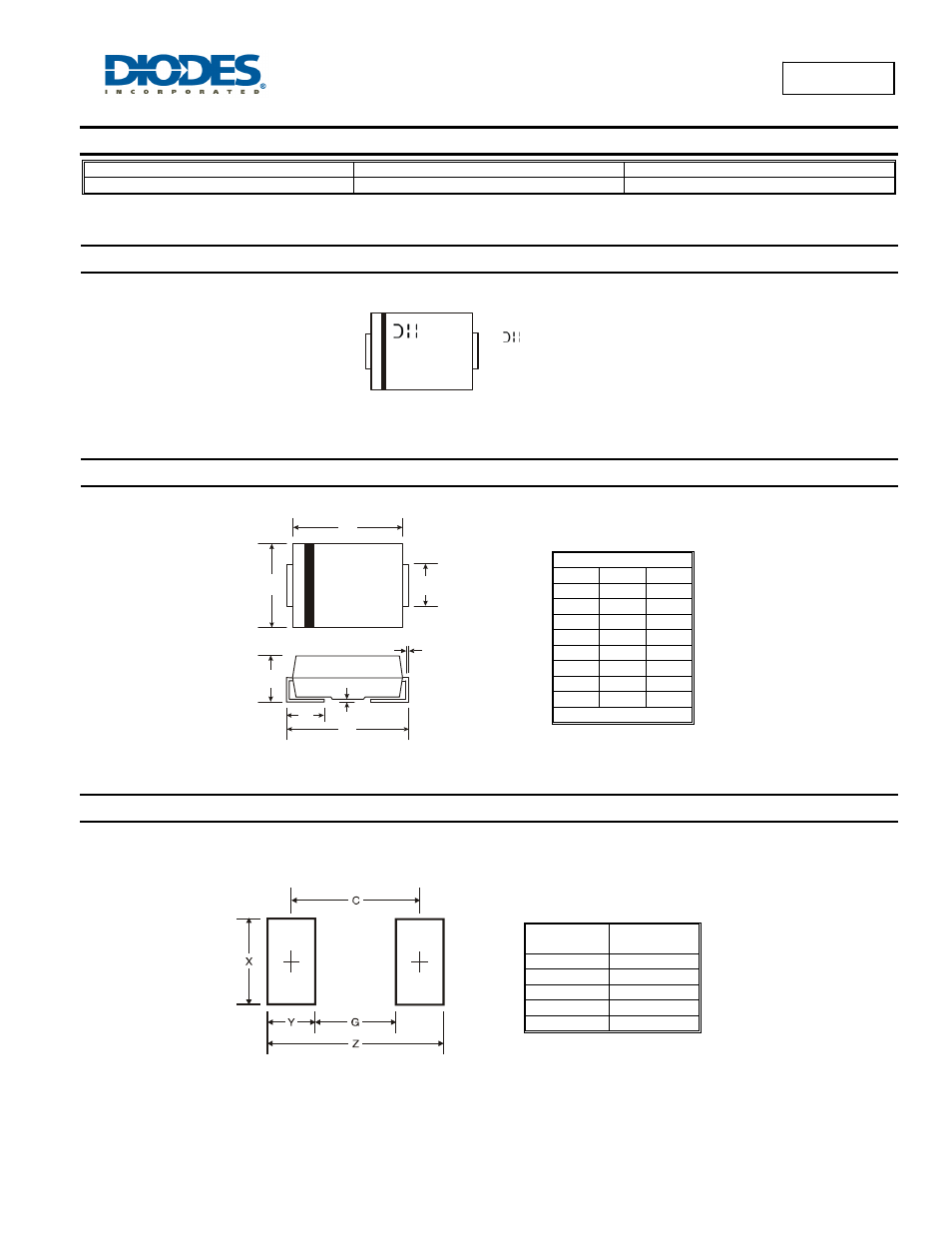

Package Outline Dimensions
Suggested Pad Layout
SMB
Dim Min Max
A 3.30 3.94
B 4.06 4.57
C 1.96 2.21
D 0.15 0.31
E 5.00 5.59
G 0.05 0.20
H 0.76 1.52
J 2.00 2.50
All Dimensions in mm
SMB
Dimensions
Value (in mm)
Z 6.7
G 1.8
X 2.3
Y 2.5
C 4.3
U1DB = Product type marking code
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 2 for 2002)
WW = Week code (01 - 53)
YWW
U1DB
A
B
C
D
G
H
E
J
