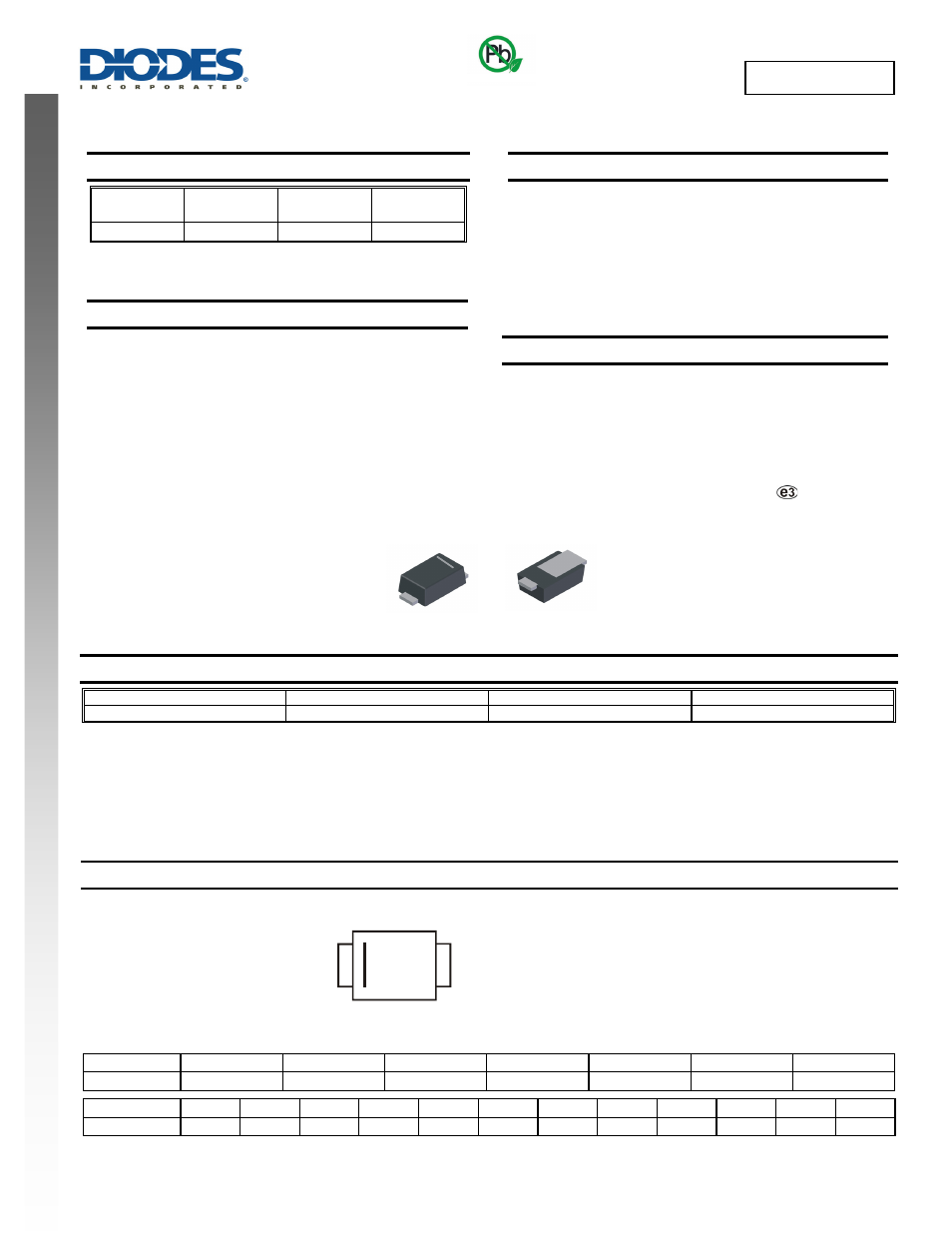

PD3S120LQ
NEW PROD
UC
T
1.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
PowerDI
®
323
Product Summary
V
R
(V)
I
F
(A)
V
F MAX
(V)
@ +25°C
I
R MAX
(mA)
@ +25°C
20 1.0 0.42
0.16
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the
stringent requirements of Automotive Applications. It is ideally suited
to use as :
•
Polarity Protection Diode
• Re-circulating
Diode
• Switching
Diode
Features and Benefits
•
Guard Ring Die Construction for Transient Protection
•
High Surge Capability
•
Ultra-Small Surface Mount Package
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
•
PPAP Capable (Note 4)
Mechanical Data
• Case:
PowerDI
®
323
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Polarity: Cathode Band
•
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.006 grams (approximate)
Ordering Information
(Note 5)
Part Number
Compliance Case
Packaging
PD3S120LQ-7 Automotive PowerDI
®
323
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to
5. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code
Y
Z
A
B
C
D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
Bottom View
34 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: B = 2014)
M = Month (ex: 9 = September)
34
YM
Green
