PD3S160
Document number: DS30899 Rev. 7 - 2
4 of 5
www.diodes.com
September 2012
© Diodes Incorporated
PD3S160

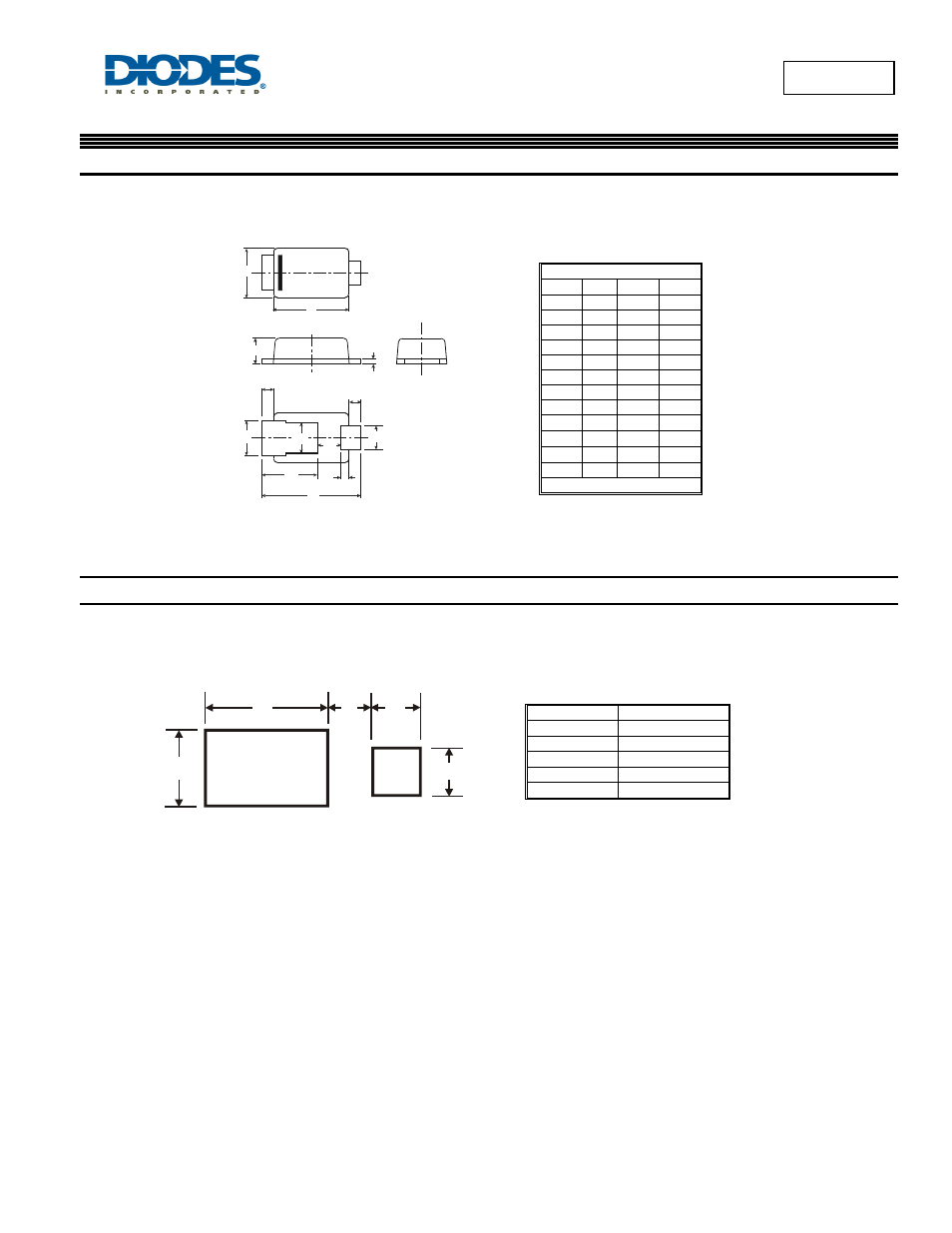

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
POWERDI323
Dim Min Max Typ
A 2.40 2.60 2.50
B 1.85 1.95 1.90
C 1.20 1.30 1.25
D 0.60 0.70 0.65
E 0.78 0.98 0.88
E1 0.50 0.70 0.60
E2 0.60 1.00 0.80
H 0.08 0.18 0.13
L 0.20 0.40 0.30
L1 ⎯ ⎯ 1.40
L3 ⎯ ⎯ 0.20
L4 0.40 0.80 0.60
All Dimensions in mm
Dimensions Value (in mm)
G 0.5
X1 2.0
X2 0.8
Y1 0.8
Y2 1.1
B
C
E
L1
L
L
H
D
L1
L3
A
L4
E1 E2
X1 G X2
Y2
Y1
