ADVANCED INFORMATION

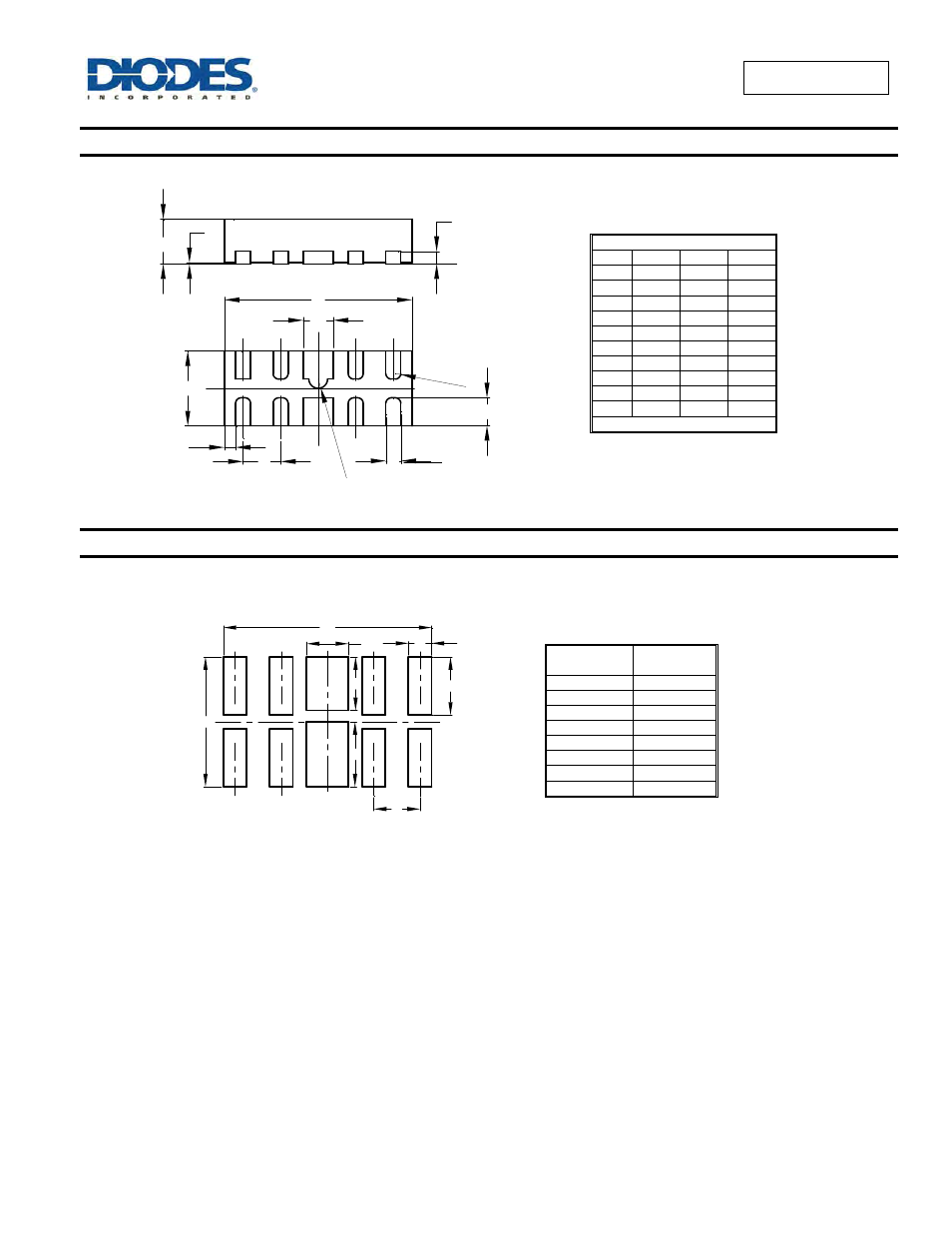

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
U-DFN2510-10
Dim Min Max Typ
A 0.545 0.605 0.575
A1 0 0.05 0.03
A3 - - 0.13
b 0.15 0.25 0.20
b1 035 0.45 0.40
D 2.450 2.575 2.500
e - - 0.50
E 0.950 1.075 1.000
L 0.325 0.425 0.375
Z - - 0.150
All Dimensions in mm
Dimensions
Value
(in mm)
C 0.500
X 0.250
X1 0.450
X2 2.250
Y 0.625
Y1 0.575
Y2 0.700
Y3 1.400
X 2
Y 3
Y
X
Y 2
Y 1
X 1
C
Z
b 1
R 0
. 1
2 5
R 0 . 0 7 5
D
E
e b
L
A
A 1
A 3
S e a t i n g P l a n e
