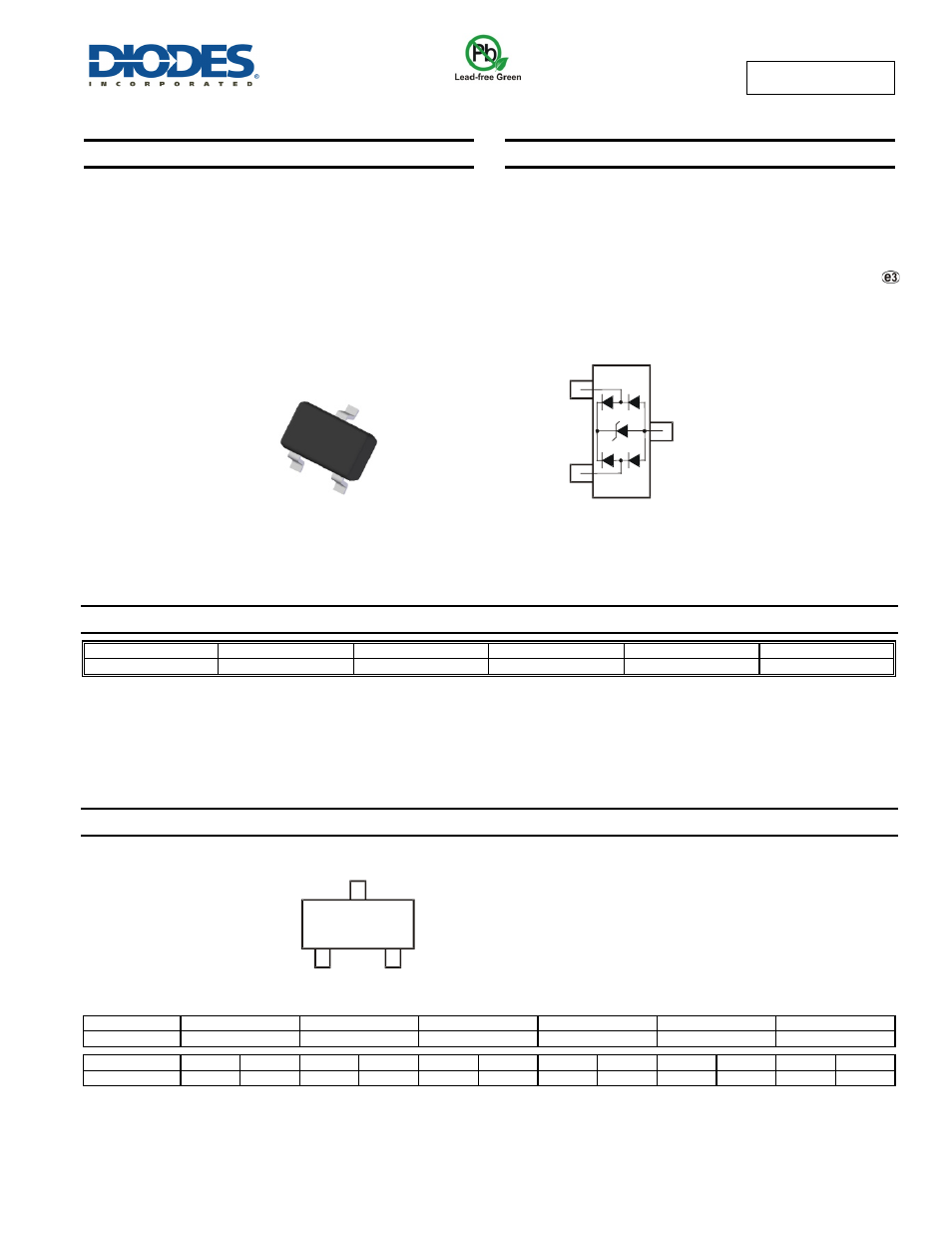

DT1452-02SO

Document number: DS36355 Rev. 2 - 2

1 of 5

www.diodes.com

December 2013

© Diodes Incorporated

DT1452-02SO

ADVAN

CE I

N

F

O

RM

ATI

O

N


2 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY

Features

IEC 61000-4-2 (ESD): Air – ±16kV, Contact – ±16kV

IEC 61000-4-4 (EFT) Additional Level, 55A (5/50ns)

IEC 61000-4-5 (Lightning): 5A (8/20µs)

2 Channels of ESD protection

Low Channel Input Capacitance of 1.2pF Typical

Typically Used at High Speed Ports such as USB 2.0,
IEEE1394, Serial ATA, DVI, HDMI, PCI

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)


Mechanical Data

 Case:

SOT23

Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 lead frame
(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Weight: 0.009 grams (approximate)

















Ordering Information

(Note 4)

Product

Compliance Marking

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

DT1452-02SO-7

Standard

BD1

7

8

3,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.



Marking Information










Date Code Key

Year

2013

2014

2015

2016 2017 2018

Code A

B

C

D

E

F

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D





Top View

Device Schematic

BD1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 5 = May)

SOT23

BD1

Y

M

I/O 1

I/O 2

V

SS
