DRTR5V0U1LP
Document number: DS36051 Rev. 2 - 2
1 of 5
March 2013
© Diodes Incorporated
DRTR5V0U1LP
NEW PROD
UC
T
LOW CAPACITANCE SINGLE ESD PROTECTION TVS DIODE
Features
IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV
1 Channel of ESD Protection
Low Channel Input Capacitance of 1.0pF Typical
Low Profile Package (0.53mm max) and Ultra-small PCB
Footprint Area (1.08 * 0.68mm max) Suitable for Compact
Portable Electronics
Typically Used at High Speed Ports such as USB 2.0,
IEEE1394, Serial ATA, DVI, HDMI, PCI
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
X1-DFN1006-2
Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208
Weight: 0.001 grams (Approximate)
Ordering Information
(Note 4)
Product
Compliance Marking
Reel size(inches)
Tape width(mm)
Quantity per reel
DRTR5V0U1LP-7B
AEC-Q101
U6
7
8
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information

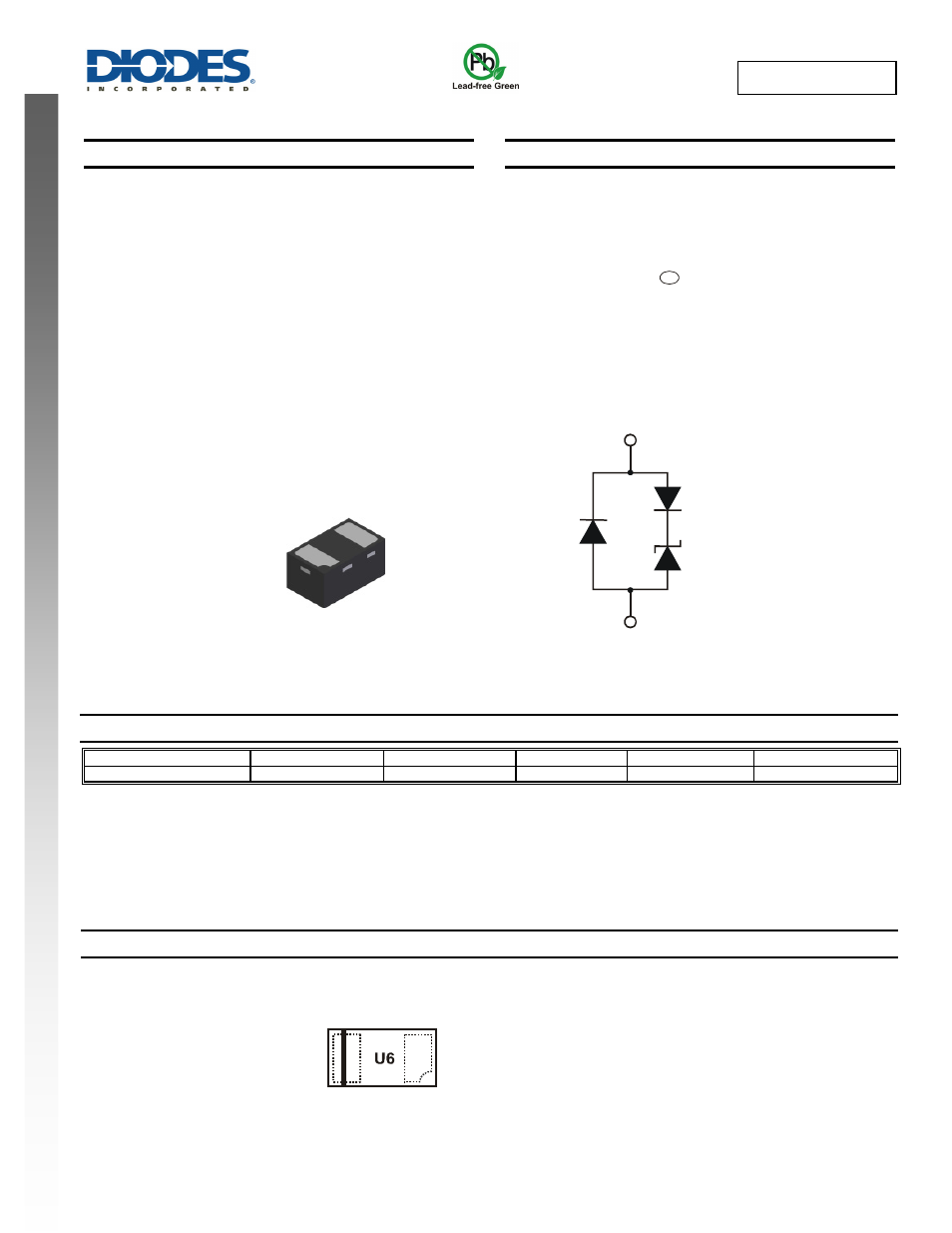

Device Schematic
X1-DFN1006-2
Bottom View
U6 = Product Type Marking Code
Line Denotes Pin 1 or Cathode Side
Pin 1
Pin 2
e4
