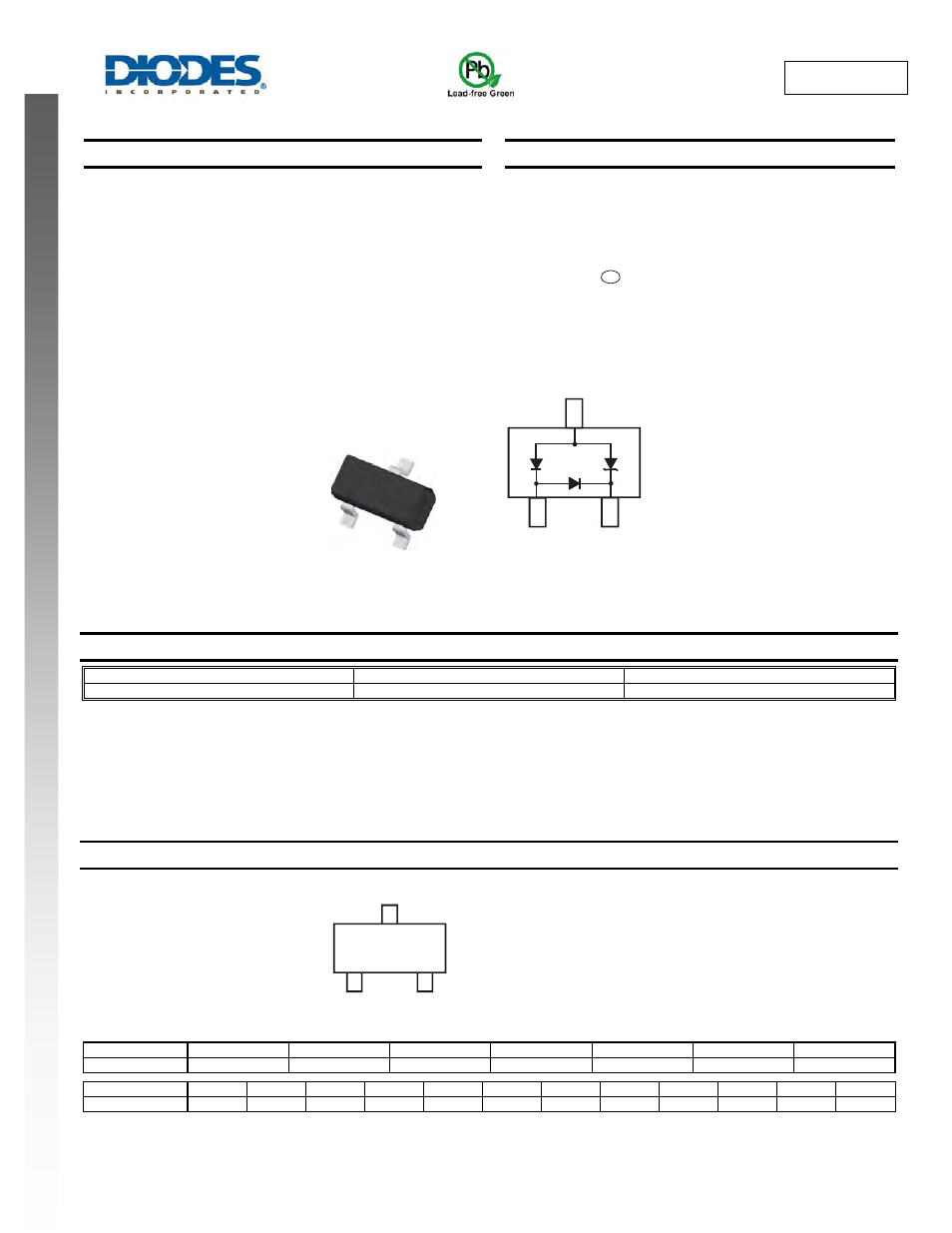

DLPT05W

NEW PROD

UC

T


SURFACE MOUNT DATALINE PROTECTION DEVICE

Features

300 Watts Peak Pulse Power (tp = 8x20µs)

Transient Protection for Data Line to IEC61000-4-2 level 4 (ESD),
8kV HBM
ƒ

Contact: Discharge

±30kV

ƒ

Air: Discharge

±30kV

• IEC

61000-4-4

(EFT)

• Low

Leakage

Current

Surface Mount Package Ideally Suited for Automated Insertion

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)



Mechanical Data

• Case:

SOT323

Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Solderable per MIL-STD-202, Method 208

Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe)

Terminal Connections: See Diagram

Weight: 0.006 grams (approximate)




















Ordering Information

(Note 4)

Part Number

Case

Packaging

DLPT05W-7

SOT323

3000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.





Marking Information












Date Code Key

Year

2011

2012

2013

2014

2015

2016

2017

Code Y

Z

A

B

C D

E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D





Top View

Device Schematic

AT1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)

AT1

YM

SOT323

TVS

V

CC

GROUND

LINE TO
BE PROTECTED

e3
