DESD3V3S1BL
Document number: DS35995 Rev. 3 - 2
1 of 4
March 2014
© Diodes Incorporated

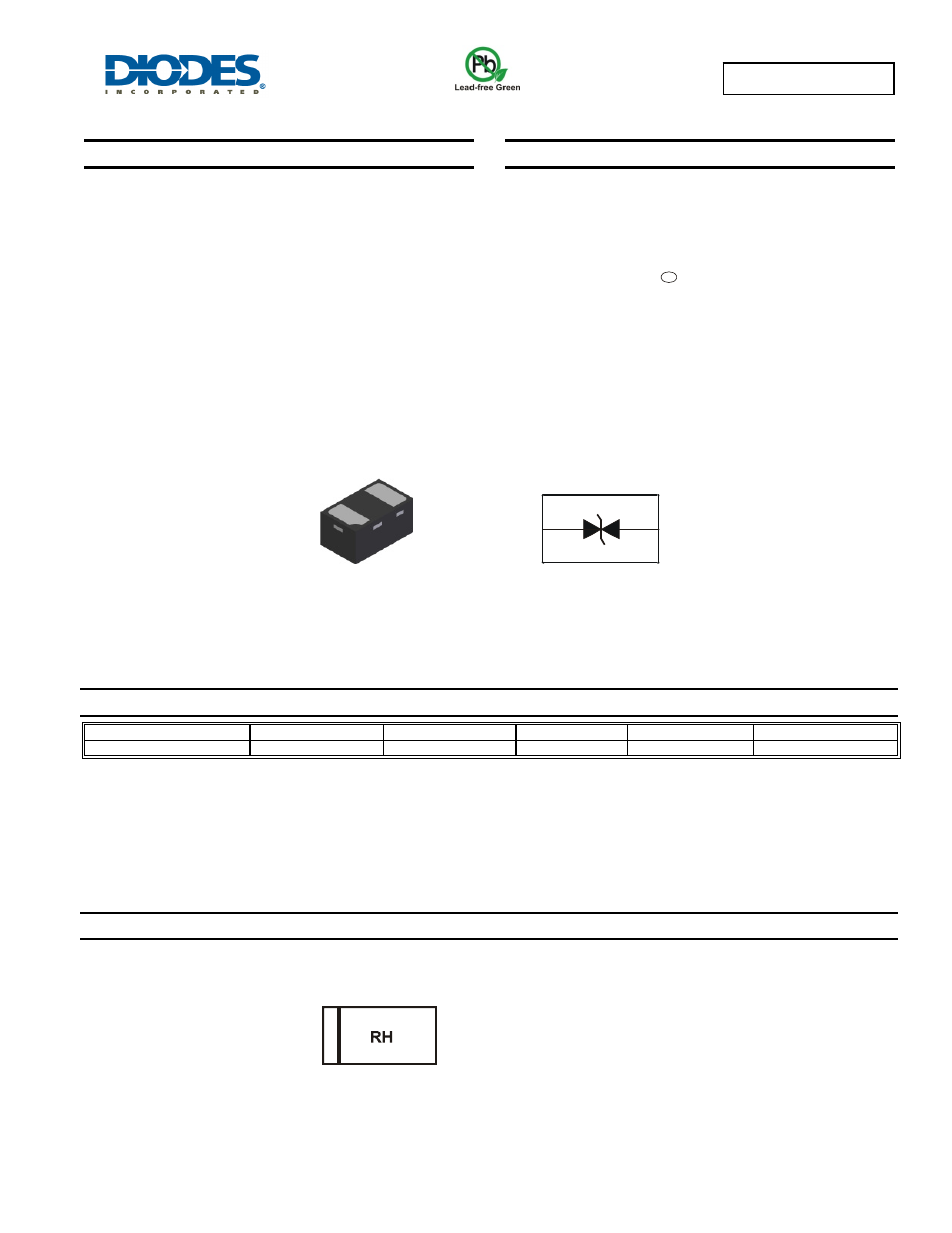

DESD3V3S1BL
LOW CAPACITANCE BIDIRECTIONAL TVS DIODES
Features
Low Profile Package (0.53mm max) and Ultra-small PCB
Footprint Area (1.08 * 0.68mm max) Suitable for Compact
Portable Electronics
Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±30kV, Contact ±25kV
1 Channel of ESD Protection
Low Channel Input Capacitance
Typically Used in Cellular Handsets, Portable Electronics,
Communication Systems, Computers and Peripherals
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case: X1-DFN1006-2
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208
Polarity: Cathode Band
Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Product
Compliance Marking
Reel size(inches)
Tape width(mm)
Quantity per reel
DESD3V3S1BL-7B
Standard
RH
7
8
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Device Schematic
Bottom View
RH = Product Type Marking Code
Line Denotes Cathode Side
X1-DFN1006-2
e4
