SMCJ5.0(C)A - SMCJ170(C)A
Document number: DS19003 Rev. 18 - 2
5 of 6
www.diodes.com
June 2012
© Diodes Incorporated
SMCJ5.0(C)A - SMCJ170(C)A

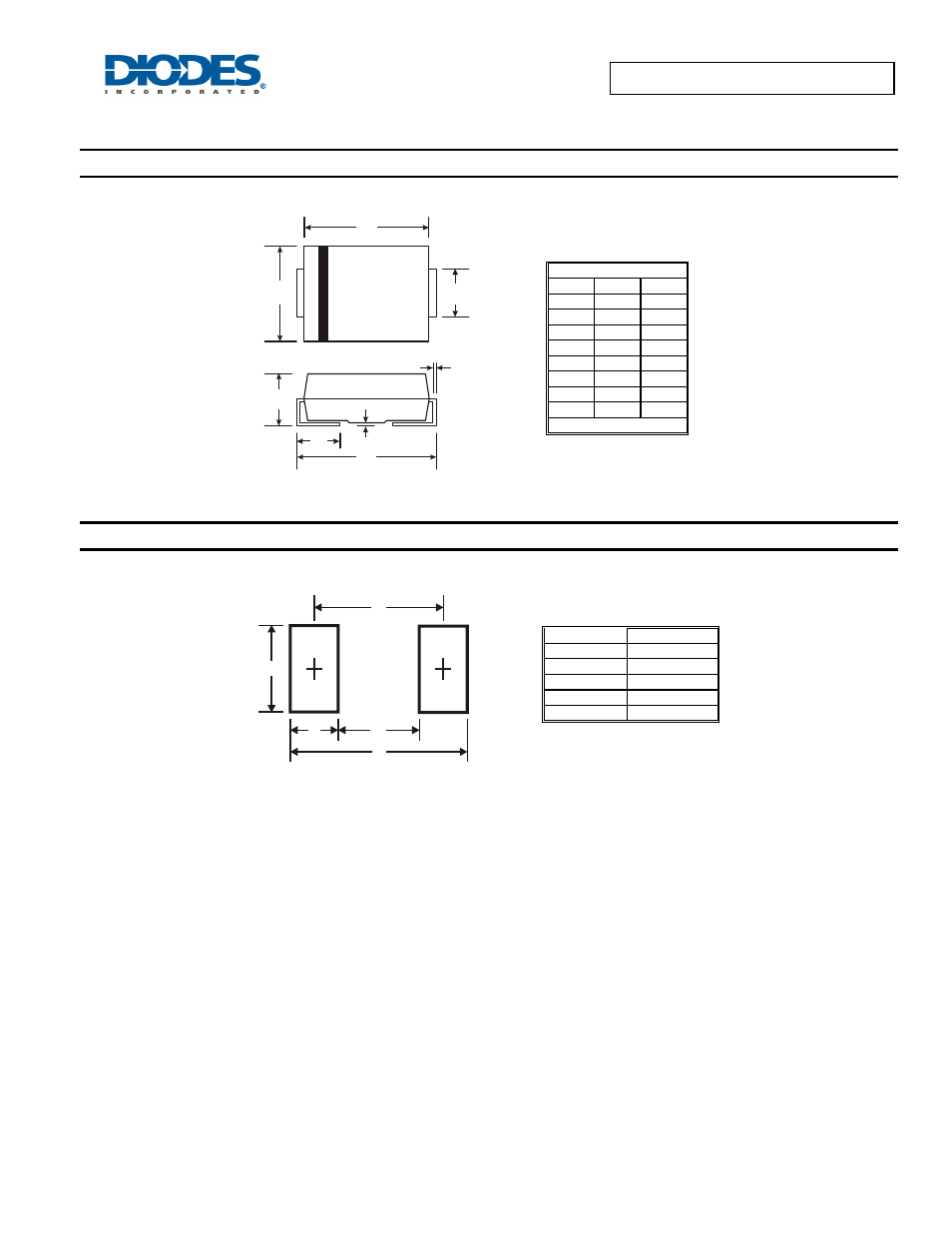

Package Outline Dimensions
Suggested Pad Layout
SMC
Dim Min Max
A 5.59 6.22
B 6.60 7.11
C 2.75 3.18
D 0.15 0.31
E 7.75 8.13
G 0.10 0.20
H 0.76 1.52
J 2.00 2.50
All Dimensions in mm
Dimensions Value (in mm)
Z 9.3
G 4.4
X 3.3
Y 2.5
C 6.8
A
B
C
D
G H
E
J
Z
X
C
G Y
