DLP05LC
Document number: DS30283 Rev. 11 - 2
3 of 4
www.diodes.com
September 2009
© Diodes Incorporated
DLP05LC

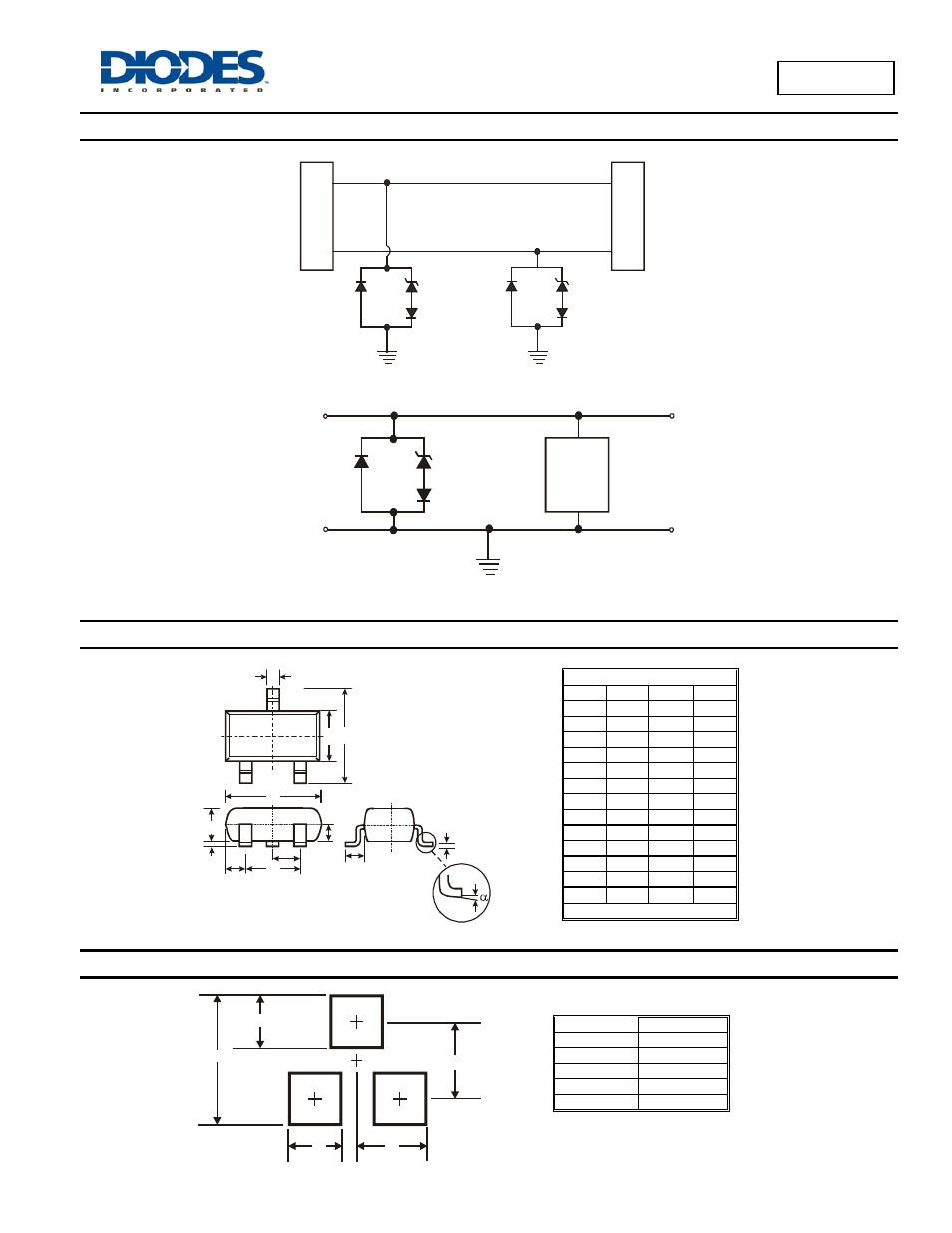

Typical Application Schemes
Package Outline Dimensions
Suggested Pad Layout
SOT-23
Dim Min Max Typ
A 0.37 0.51 0.40
B 1.20 1.40 1.30
C 2.30 2.50 2.40
D 0.89 1.03 0.915
F 0.45 0.60 0.535
G 1.78 2.05 1.83
H 2.80 3.00 2.90
J 0.013 0.10 0.05
K 0.903 1.10 1.00
K1 - - 0.400
L 0.45 0.61 0.55
M 0.085 0.18 0.11
α 0° 8° -
All Dimensions in mm
Dimensions Value (in mm)
Z 2.9
X 0.8
Y 0.9
C 2.0
E 1.35
A
M
J L
D
F
B C
H
K
G
K1
X E
Y
C
Z
TYPICAL APPLICATION SCHEMATICS
TYPICAL USB DATA LINE APPLICATION
D+
D-
USB INPUT
CONNECTOR
USB OUTPUT
CONNECTOR
TYPICAL V POWER LINE PROTECTION
CC
V
CC
IC
GROUND
