Diodes DESD24VS2SO User Manual
Features, Mechanical data, Ordering information

DESD24VS2SO
Document number: DS36184 Rev. 2 - 2
1 of 4
April 2014
© Diodes Incorporated
DESD24VS2SO
ADVAN
CE I
N
F
O
RM
ATI
O
N
24V CAN/LIN BUS PROTECTOR
Features
•
Provides ESD Protection per IEC 61000-4-2 Standard:
Air – ±30kV, Contact – ±30kV
•
230W Peak Power Dissipation
•
Typically Used to Protect LIN and CAN Transceiver from ESD
and other Harmful Transient Voltage Events
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Weight: 0.009 grams (Approximate)
Ordering Information
(Note 4)
Product
Compliance Marking
Reel size(inches)
Tape width(mm)
Quantity per reel
DESD24VS2SO-7
AEC-Q101
A19
7
8
3,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2013
2014
2015
2016 2017 2018 2019
Code
A B C D E F G
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D

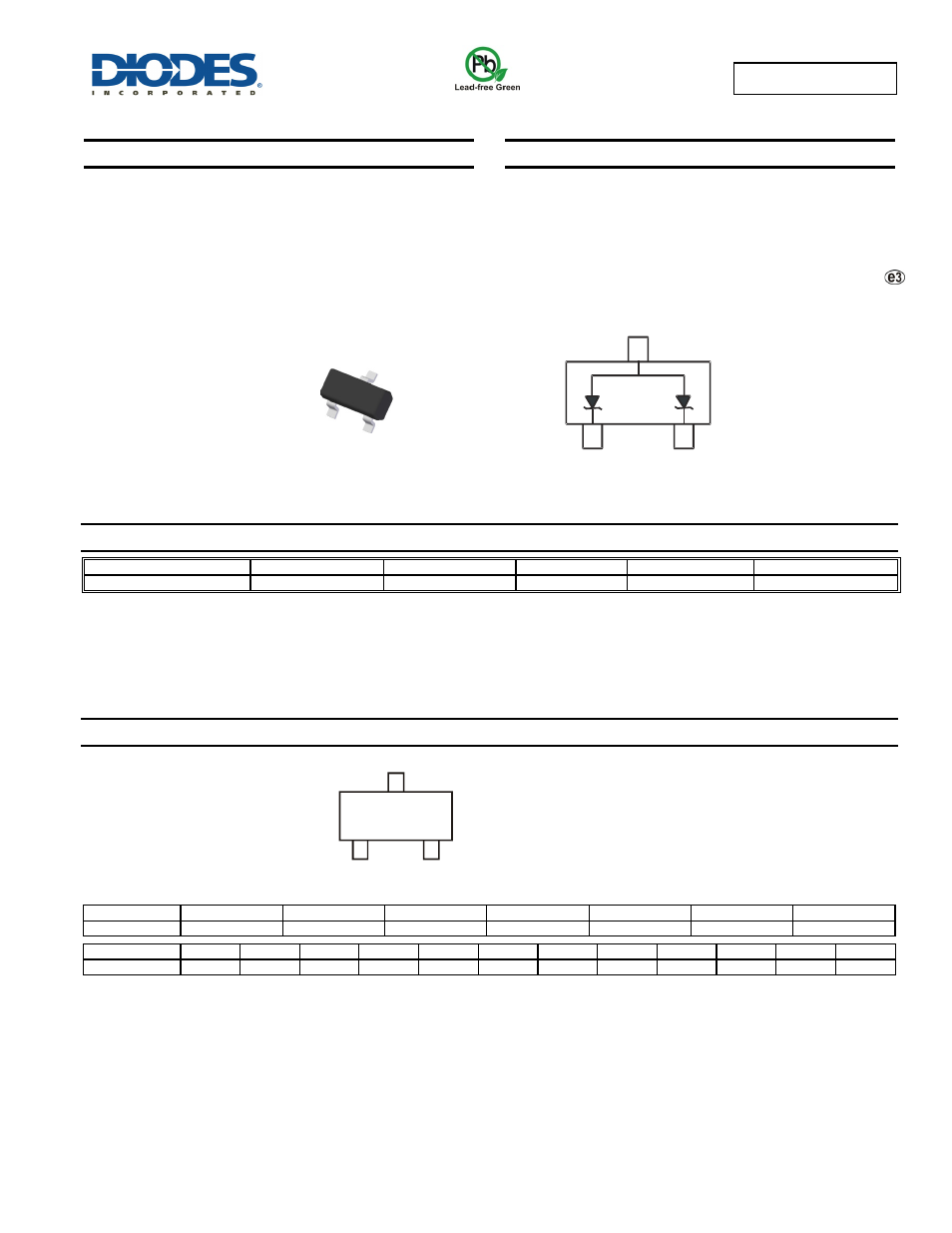

Device Schematic
Top View
A19 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
1
2
3
A19
YM
