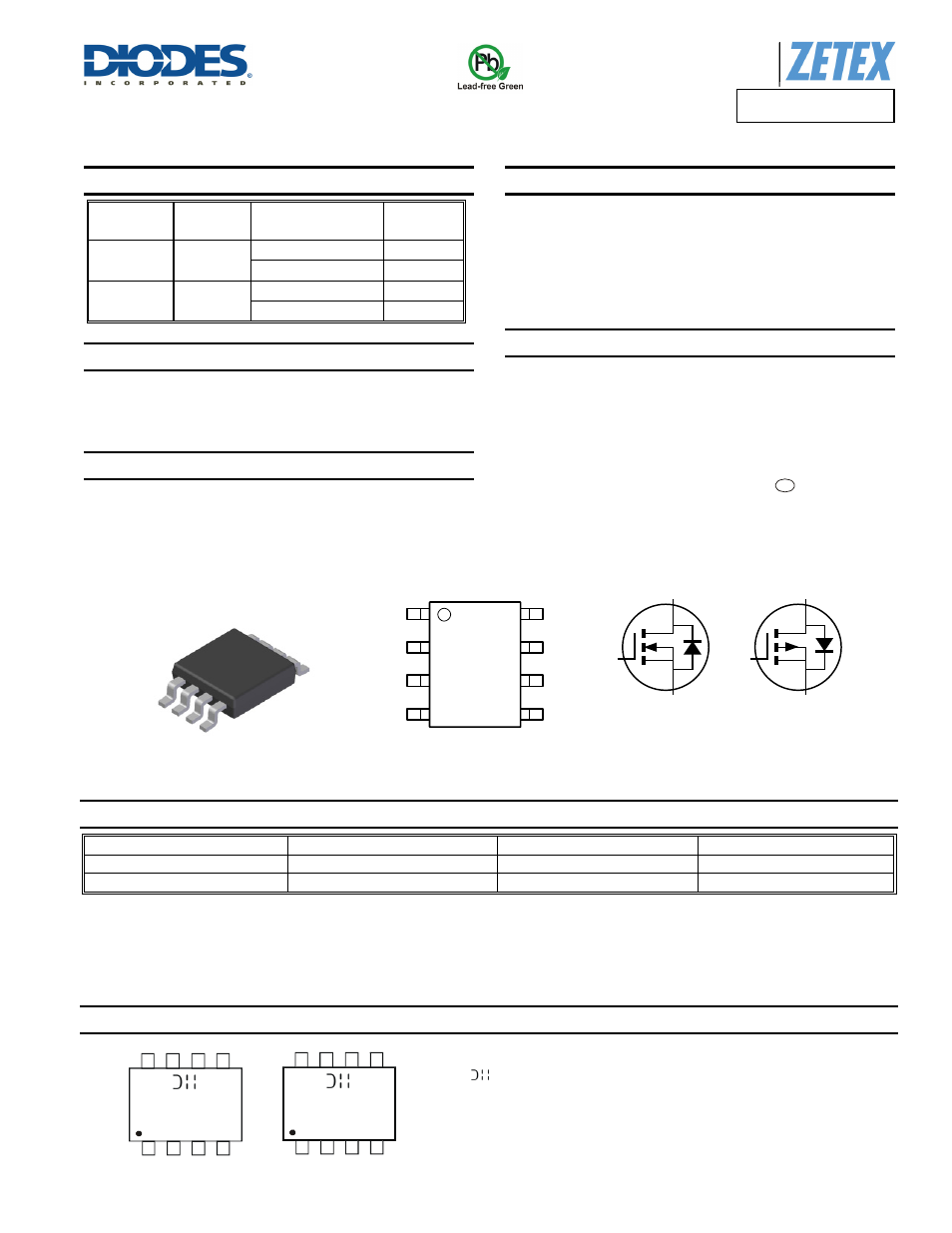

DMC4028SSD
Document Number: D35041 Rev: 2 - 2
1 of 11
April 2013
© Diodes Incorporated
ADVAN
CE I
N
F
O
RM
ATI
O
N
A Product Line of
Diodes Incorporated
DMC4028SSD
40V COMPLEMENTARY DUAL ENHANCEMENT MODE MOSFET
Product Summary
Device
V
(BR)DSS
R
DS(on)
Max
I
D
T
A
= +25
C
Q1 40V
28m
@ V
GS
= 10V
7.2A
49m
@ V
GS
= 4.5V
5.4A
Q2 -40V
50m
@ V
GS
= -10V
-5.2A
79m
@ V
GS
= -4.5V
-4.7A
Description
This MOSFET has been designed to minimize the on-state resistance
and yet maintain superior switching performance, making it ideal for
high efficiency power management applications.
Applications
Motor
Control
Backlighting
DC-DC
Converters
Power Management Functions
Features and Benefits
Low
On-Resistance
Fast Switching Speed
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SO-8
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals Connections: See diagram below
Terminals: Finish - Matte Tin annealed over Copper lead frame.
Solderable per MIL-STD-202, Method 208
Weight: 0.074 grams (approximate)
Ordering Information
(Note 4)
Part Number
Compliance Case
Packaging
DMC4028SSD-13
Standard
SO-8
2500 / Tape & Reel
DMC4028SSDQ-13
Automotive
SO-8
2500 / Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”
Marking Information
Top View
SO-8
Equivalent Circuit
D2
S2
G2
D1
Q1 N-Channel
Q2 P-Channel
S1
G1
D1
S1
G1
S2
G2
Top view
D1
D2
D2
Top View
= Manufacturer’s Marking
C4028SD = Product Type Marking Code for DMC4028SSD-13
C4028DQ = Product Type Marking Code for DMC4028SSDQ-13
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01 - 53)
C4028SD
YY WW
C4028DQ
YY
WW
e3
