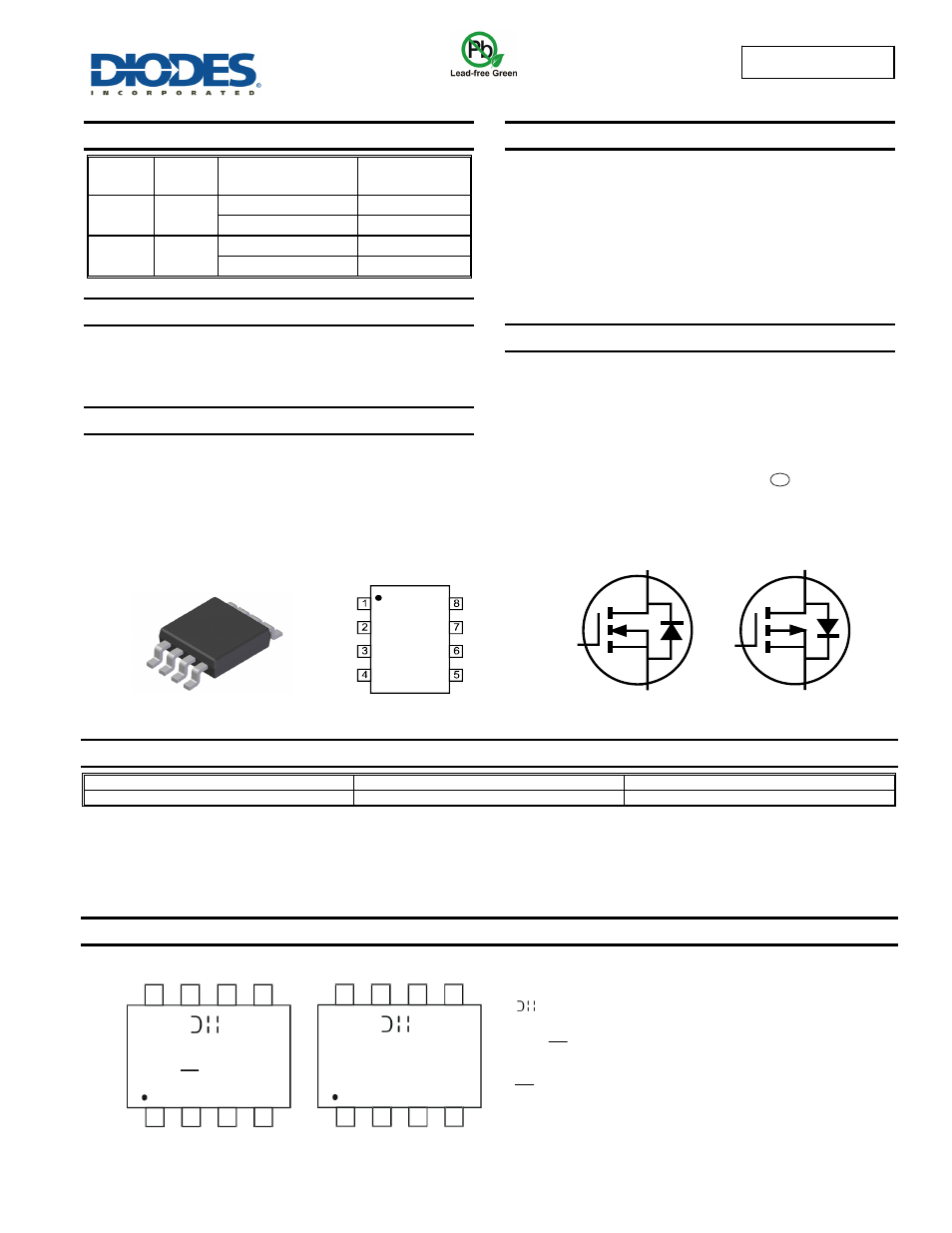

DMC3021LSD
NEW PROD
UC
T
D2
S2
G2
D1
S1
G1
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device V
(BR)DSS
R
DS(on)
max
I
D
Max
T
A
= +25 °C
Q2 30V
21m Ω @ V
GS
= 10V 8.5A
32m Ω @ V
GS
= 4.5V 7.2A
Q1 -30V
39m Ω @ V
GS
= -10V -7A
53m Ω @ V
GS
= -4.5V -5.6A
Description and
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
• Power Management Functions
• Analog Switch
• Load Switch
Features
• Low On-Resistance
• Low Input Capacitance
• Fast Switching Speed
• Low Input/Output Leakage
• Complementary Pair MOSFET
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SO-8
• Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals Connections: See Diagram
• Terminals: Finish - Matte Tin annealed over Copper lead frame
Solderable per MIL-STD-202, Method 208
• Weight: 0.072 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
DMC3021LSD-13 SO-8 2500/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SO-8
Top View Top View
S2
D1 S1
D2
G1
G2 D2
D1
N-Channel MOSFET P-Channel MOSFET
1 4
8 5
C3021LD
YY WW
1 4
8 5
C3021LD
YY WW
= Manufacturer’s Marking
C3021LD = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Year (ex: 14 = 2014)
WW = Week (01 - 53)
YY = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YY = Date Code Marking for CAT (Chengdu Assembly/ Test site)
Chengdu A/T Site Shanghai A/T Site
