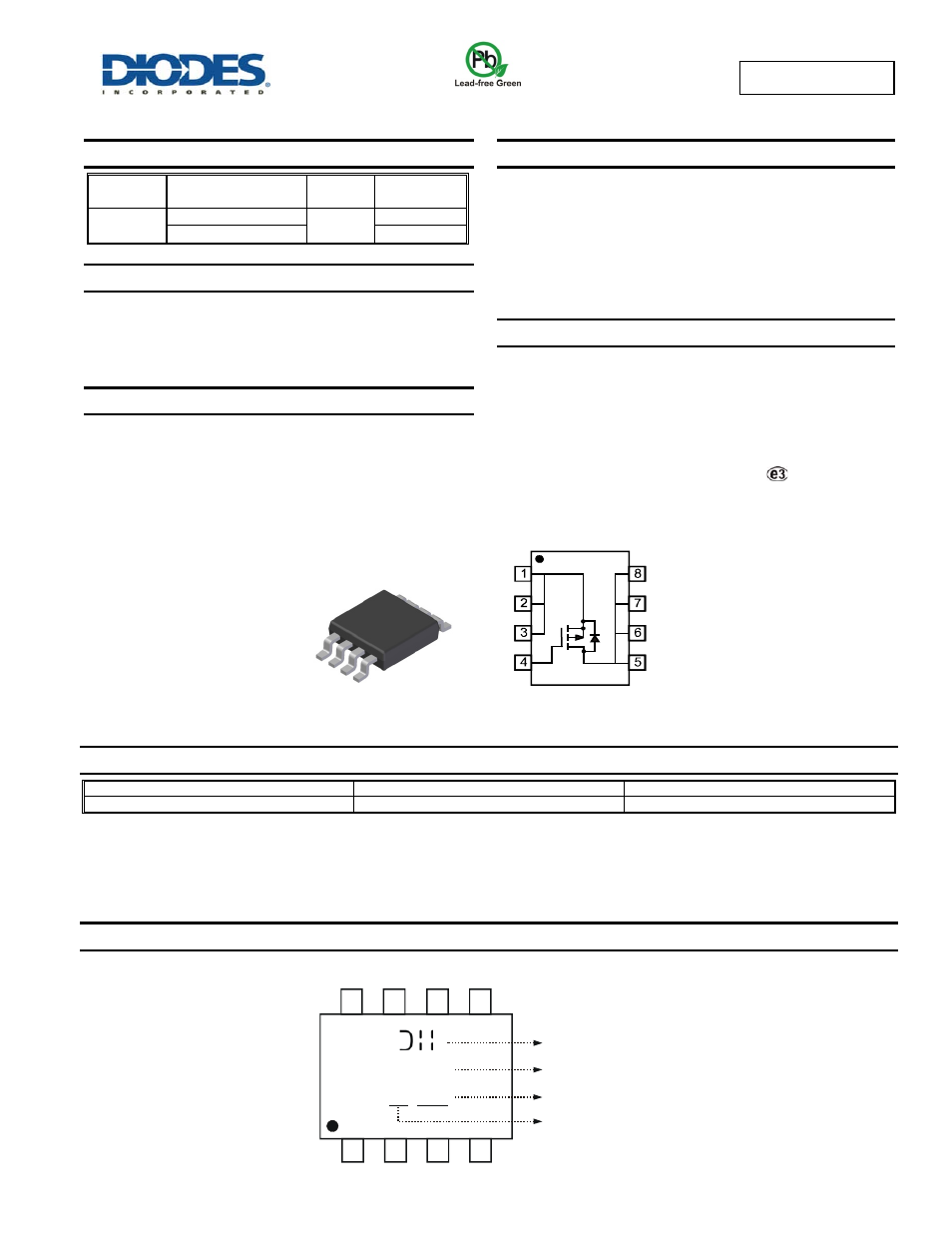

DMP3085LSS
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V (BR)DSS R DS(ON) MAX
Package
I D
T A = +25°C
-30V
70m Ω @V
GS
= -10V
SO-8
-3.8A
95m Ω @V
GS
= -4.5V -3.2A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
 Backlighting

Power Management Functions
 DC-DC
Converters
Features
 Low On-Resistance

Low Input Capacitance

Fast Switching Speed
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
 Case:
SO-8
 Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020
 Terminal
Connections Indicator: See diagram
 Terminals: Finish  Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208

Weight: 0.008 grams (approximate)
Ordering Information
Part Number Case Packaging
DMP3085LSS-13 SO-8 2500/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Top View
Logo
Part no .
Year: “12” = 2012
1 4
8 5
P3085SS
YY WW Xth week: 01 ~ 53
S
D
D
G
D
D
S
S
Top View
Internal Schematic
SO-8
Top View
