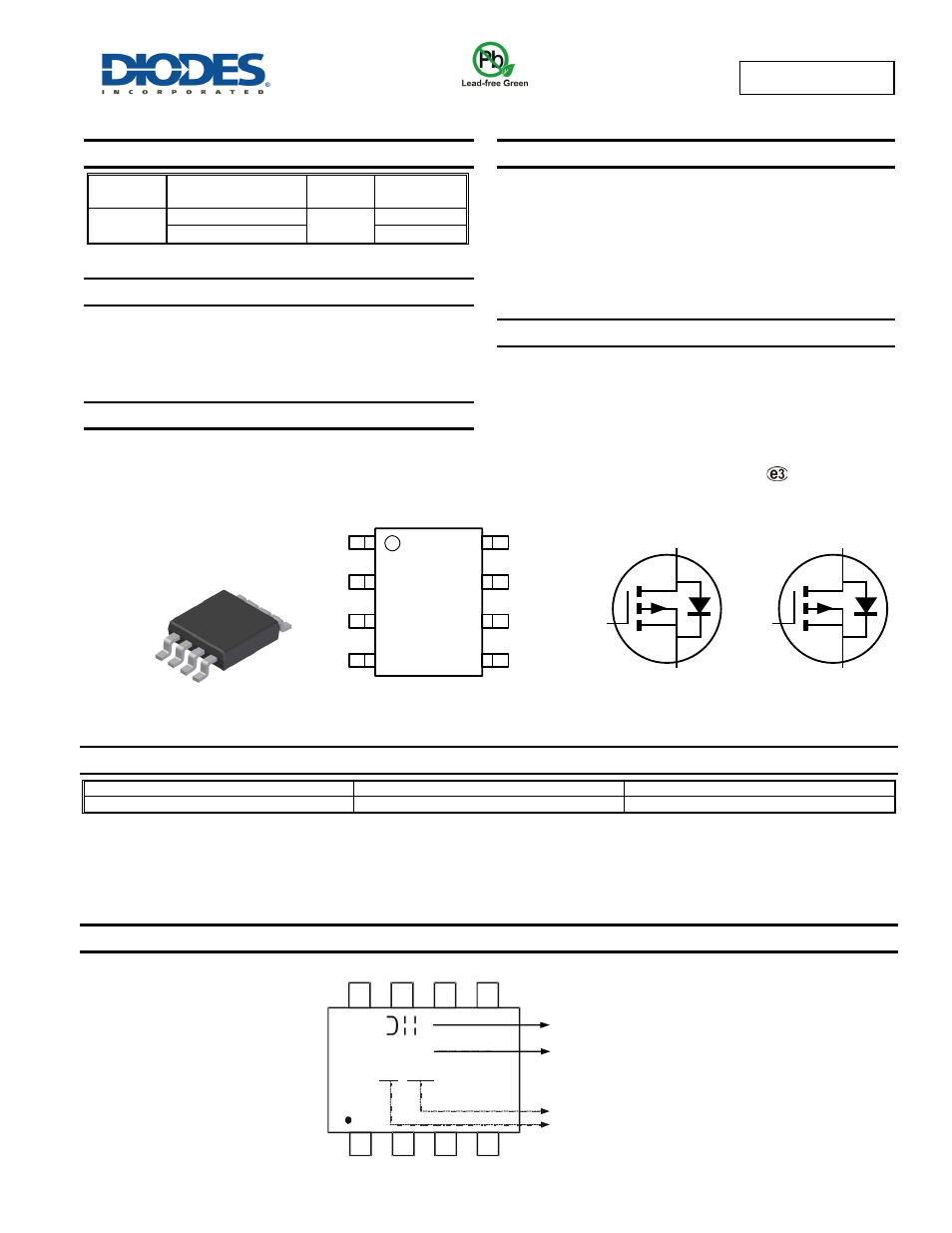

DMP3085LSD
Document number: DS36194 Rev. 1 - 0
1 of 6
www.diodes.com
May 2013
© Diodes Incorporated
DMP3085LSD
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON) MAX
Package
I
D
T
A
= +25°C
-30V
70mΩ @V
GS
= -10V
SO-8
-3.9A
95mΩ @V
GS
= -4.5V
-3.3A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
Backlighting
Power Management Functions
DC-DC
Converters
Features
Low
On-Resistance
Low Input Capacitance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
Case:
SO-8
Case Material: Molded Plastic, "Green" Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal
Connections
Indicator: See diagram
Terminals:
Finish
Matte Tin annealed over Copper lead frame
Solderable per MIL-STD-202, Method 208
Weight: 0.074 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMP3085LSD-13
SO-8
2500/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
Top View
Internal Schematic
SO-8
Top View
D1
S1
G1
S2
G2
D1
D2
D2
D2
S2
G2
D1
S1
G1
Equivalent Circuit
Top View
Logo
Part no.
Year: “12” = 2012
1
4
8
5
P3085SD
YY WW
Xth week: 01~53
