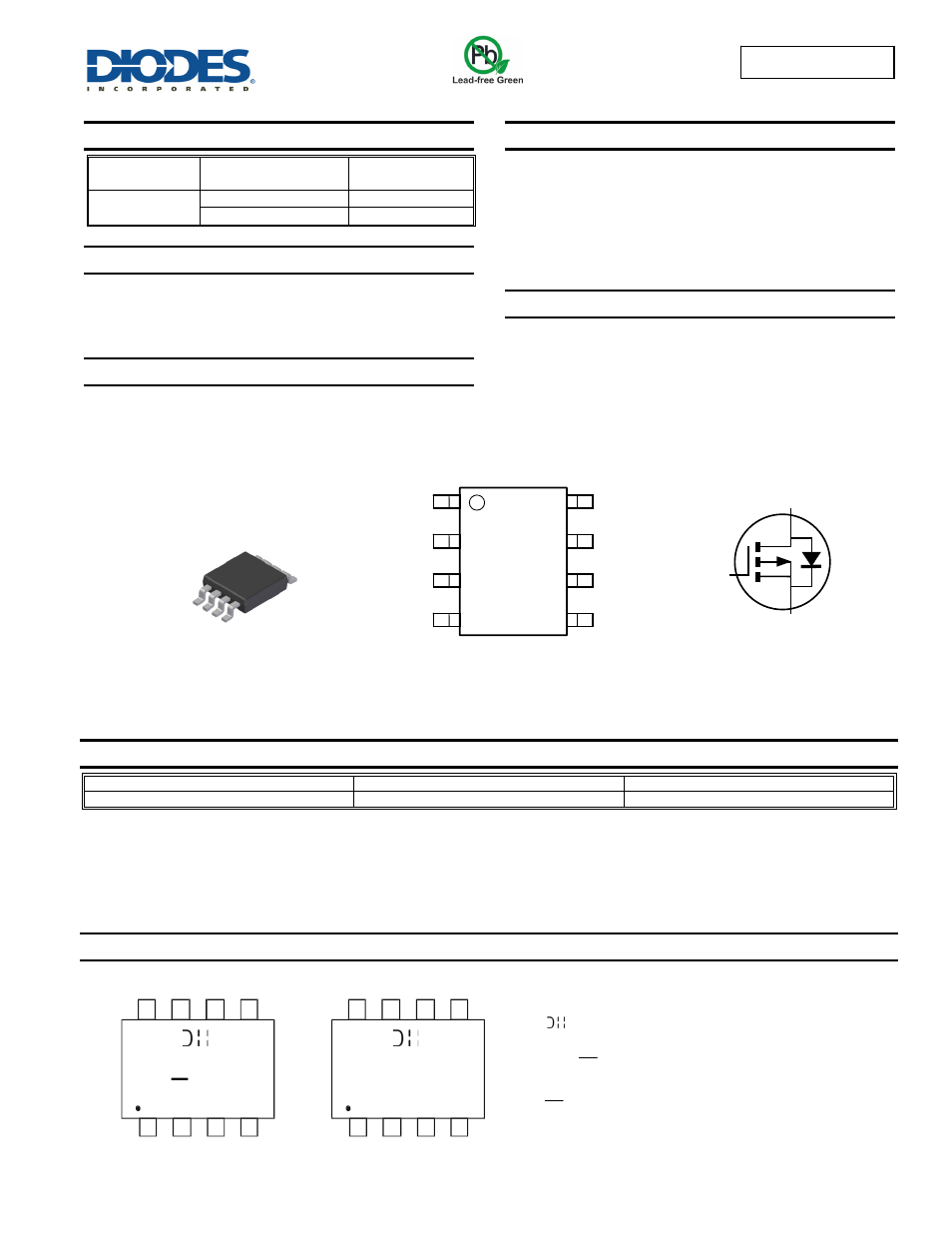

DMP3037LSS
NEW PROD
UC
T
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
C
= +25°C
-30V
32mΩ @ V
GS
= -10V
-5.8A
50mΩ @ V
GS
= -4.5V
-4.6A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
DC-DC
Converters
Power management functions
Backlighting
Features
Low
On-Resistance
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SO-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram Below
Weight: 0.072 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMP3037LSS-13
SO-8
2500 / Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
SO-8
D
S
S
S
G
D
D
D
Top View
Pin-Out
Equivalent Circuit
D
S
G
1
4
8
5
P3037LS
WW
YY
1
4
8
5
P3037LS
WW
YY
Chengdu A/T Site
Shanghai A/T Site
= Manufacturer’s Marking
P3037LS = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Year (ex: 13 = 2013)
WW = Week (01 - 53)
YY = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YY = Date Code Marking for CAT (Chengdu Assembly/ Test site)
