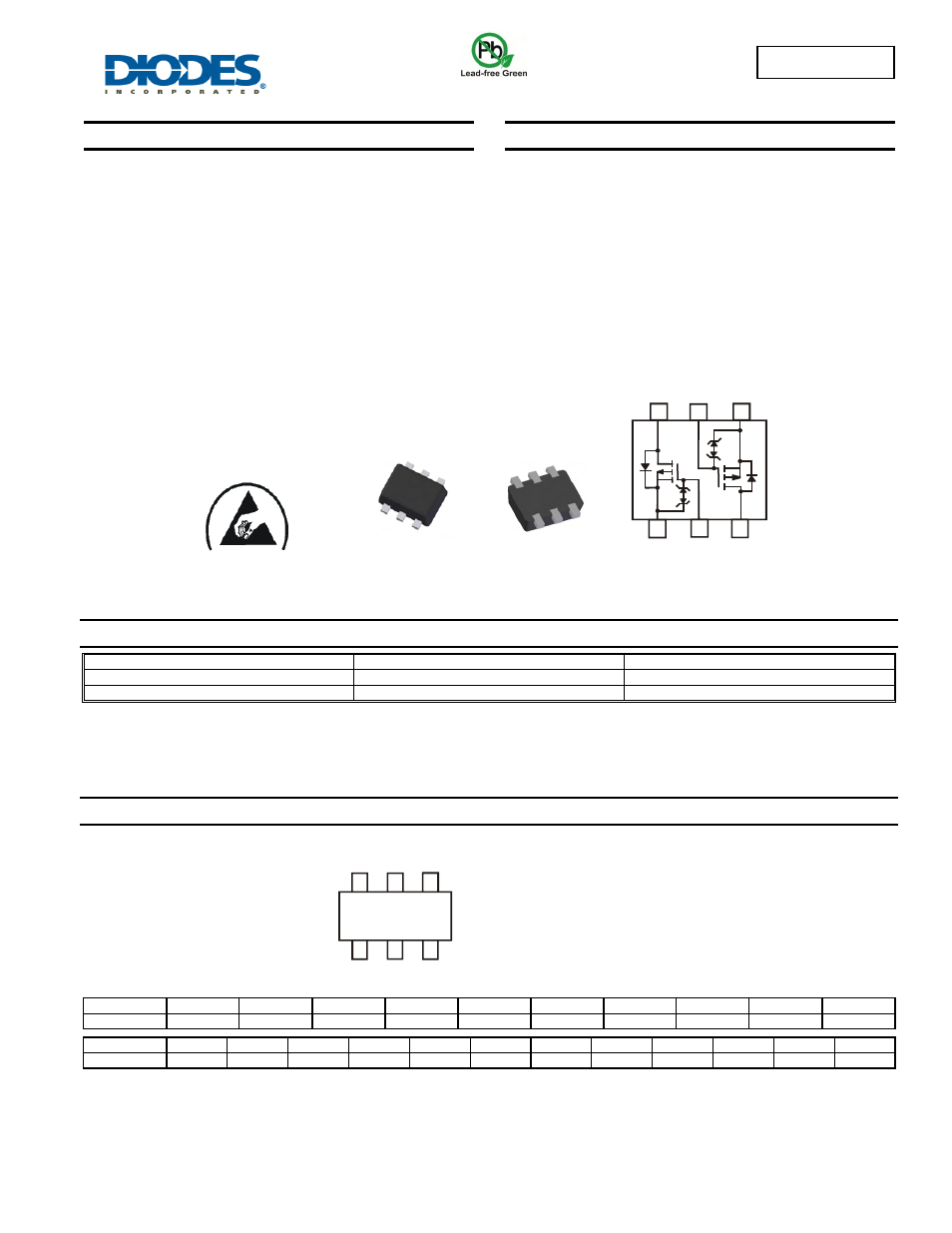

DMG1023UV
DUAL P-CHANNEL ENHANCEMENT MODE MOSFET
Features
•
Dual P-Channel MOSFET
• Low
On-Resistance
•
Low Gate Threshold Voltage
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Ultra-Small Surface Mount Package
•
ESD Protected Up To 3KV
•
Lead Free By Design/RoHS Compliant (Note 1)
•
Halogen and Antimony Free "Green" Device (Note 2)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT563
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram Below
• Terminals:
Finish
- Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.006 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DMG1023UV-7
SOT563
3,000 / Tape & Reel
DMG1023UV-13
SOT563
10,000 / Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. No purposely added lead. Halogen and Antimony free.
2. Diodes Inc.`s “Green” Policy can be found on our websit3. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2008 2009
2010
2011
2012
2013
2014
2015 2016 2017
Code
V W X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
Top View
Bottom View
S
1
D
1
D
2
S
2
G
1
G
2
PA1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: W = 2009)
M = Month (ex: 9 = September)
PA1
YM
ESD PROTECTED TO 3kV
SOT563
