DMG9N65CTI
Document number: DS36027 Rev. 3 - 2
1 of 5
January 2013
© Diodes Incorporated

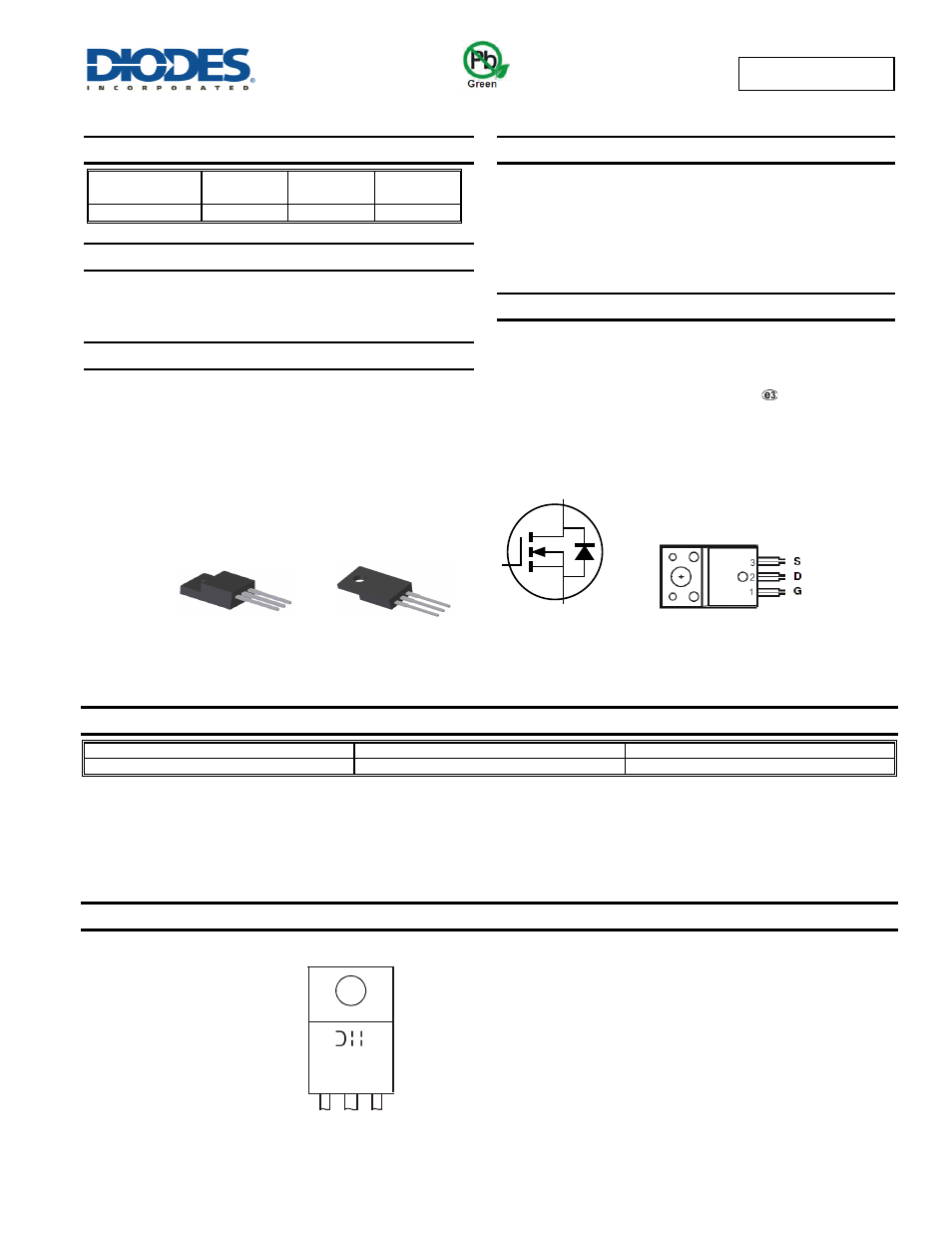

DMG9N65CTI
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
Package
I
D
T
C
= +25°C
650V
V
GS
= 10V
ITO-220AB 9.0A
Description
This new generation complementary dual MOSFET features low on-
resistance and fast switching, making it ideal for high efficiency power
management applications.
Applications
• Motor
Control
• Backlighting
• DC-DC
Converters
•
Power Management Functions
Features
•
Low Input Capacitance
•
High BVDss Rating for Power Application
•
Low Input/Output Leakage
•
Lead-Free Finish; RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
ITO-220AB
•
Case Material: Molded Plastic, “Green” Molding Compound, UL
Flammability Classification Rating 94V-0
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram Below
•
Weight: ITO-220AB – 1.85 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMG9N65CTI ITO-220AB 50
pieces/tube
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Equivalent Circuit
Top View
Pin Out Configuration
D
S
G
Top View
Bottom View
9N65CTI = Product Type Marking Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 13 = 2013)
WW = Week (01 - 53)
ITO-220AB
YYWW AB
9N65CTI
