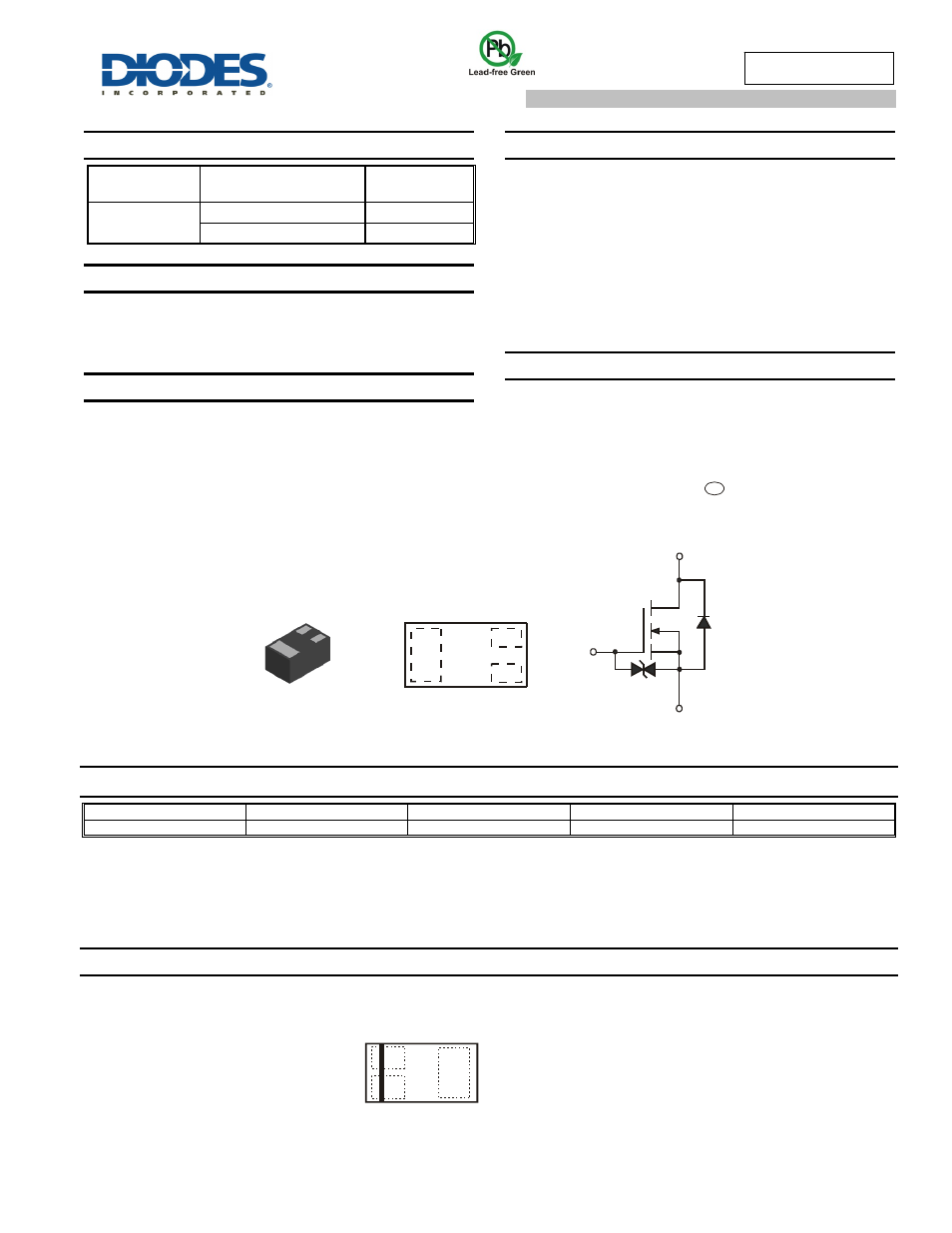

DMN62D1SFB
Document number: DS35252 Rev. 3 - 2
1 of 6
www.diodes.com
April 2014
© Diodes Incorporated
ADVAN
CE I
N
F
O
RM
ATI
O
N
DMN62D1SFB
60V N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
Max
I
D
Max
@ T
A
= +25°C
60V
1.4  @ V
GS
= 10V 0.41A
1.6  @ V
GS
= 4.5V 0.38A
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
 Load Switch
 Portable Applications
 Power Management Functions
Features and Benefits
 Footprint of just 0.6mm 2 – thirteen times smaller than SOT23
 Low On-Resistance
 Low Gate Threshold Voltage
 Fast Switching Speed
 Ultra-Small Surface Mount Package
 ESD Protected Gate 200V
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: X1-DFN1006-3
 Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish – NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
 Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Product Marking Reel size (inches) Tape width (mm) Quantity per reel
DMN62D1SFB-7B NH 7 8 10,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
X1-DFN1006-3
Equivalent Circuit
Top View
Internal Schematic Bottom View
NH = Product Type Marking Code
DMN62D1SFB-7B
Top View
Bar Denotes Gate
and Source Side
NH
Source
Body
Diode
Gate
Protection
Diode
Gate
Drain
D
S
G
e4
