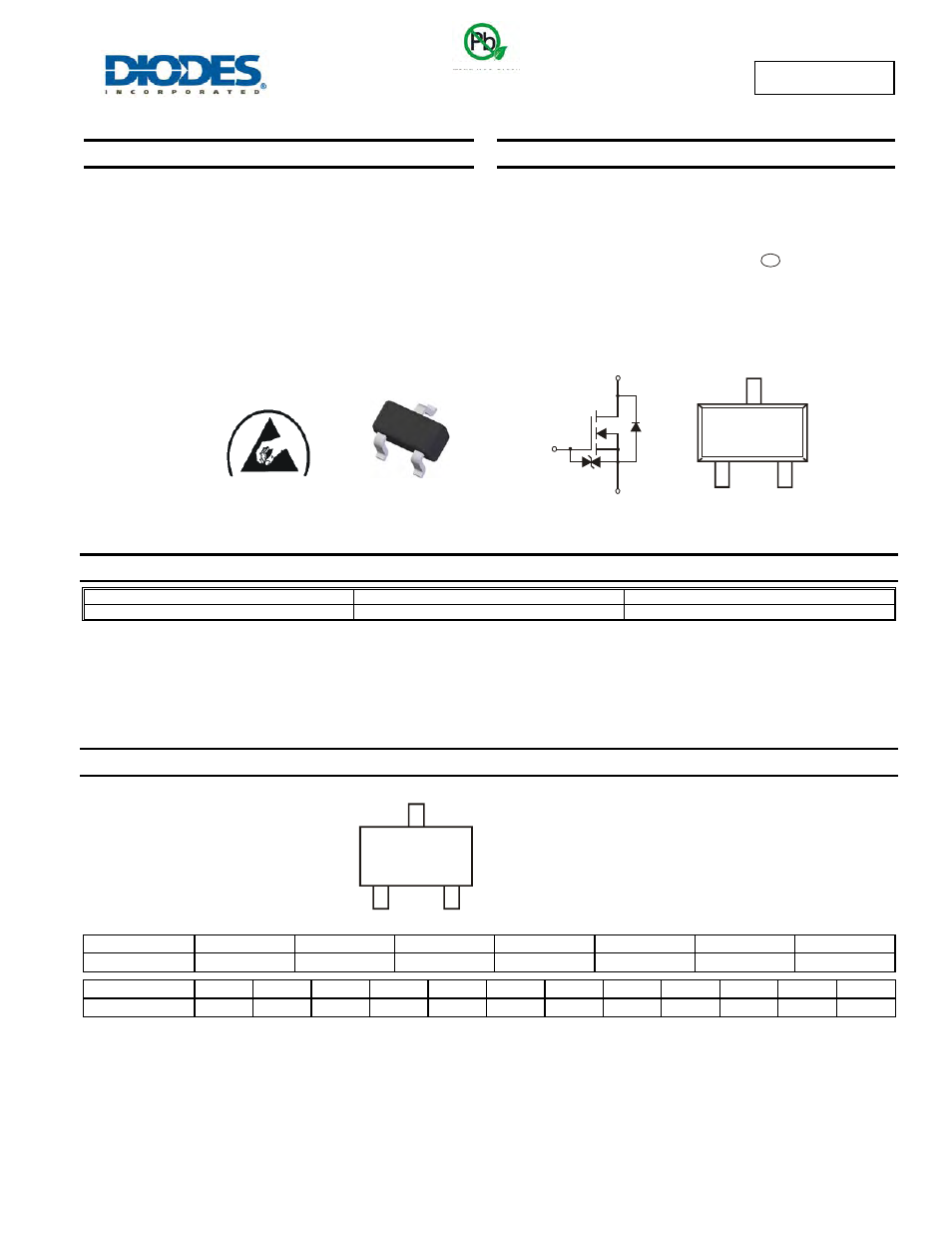

DMN5L06TK
Document number: DS30926 Rev. 5 - 2
1 of 6
July 2012
© Diodes Incorporated
DMN5L06TK
N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Features
• Low
On-Resistance
•
Very Low Gate Threshold Voltage
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
ESD Protected Up To 2kV
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
• Case:
SOT523
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals: Finish – Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram
•
Weight: 0.002 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMN5L06TK-7
SOT523
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2006
2007
2008
2009
2010
2011
2012
Code T U V W X Y Z
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
e3
DAB = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)
SOT523
G
S
D
TOP VIEW
ESD PROTECTED, 2kV
Source
Gate
Protection
Diode
Gate
Drain
Equivalent Circuit
DAB
YM
Top View
Green
