DMB54D0UDW
N-CHANNEL ENHANCEMENT MODE MOSFET PLUS PNP TRANSISTOR
Features
•
N-Channel MOSFET and PNP Transistor in One Package
• Low On-Resistance
•
Very Low Gate Threshold Voltage, 1.0V max
•
Low Input Capacitance
•
Fast Switching Speed
• Low Input/Output Leakage
•
Ultra-Small Surface Mount Package
•
Lead, Halogen and Antimony Free, RoHS Compliant (Note 2 )
•
ESD Protected MOSFET Gate up to 2kV
• "Green" Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT-363
• Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminal Connections: See Diagram
•
Terminals: Finish - Matte Tin annealed over Alloy 42 lead frame.
Solderable per MIL-STD-202, Method 208
•
Marking Information: See Page 5
•
Ordering Information: See Page 5
• Weight: 0.006 grams (approximate)
Maximum Ratings – MOSFET, Q1
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Units
Drain-Source Voltage V DSS
50 V
Gate-Source Voltage V
GSS
±12 V
Drain Current (Note 1) Continuous I
D
160 mA
Pulsed Drain Current (Note 1) I
DM
560 mA
Maximum Ratings - PNP Transistor, Q2
@T A = 25°C unless otherwise specified
Characteristic Symbol Value Unit
Collector-Base Voltage V
CBO
-50 V
Collector-Emitter Voltage V
CEO
-45 V
Emitter-Base Voltage V EBO
-5.0 V
Collector Current I
C
-100 mA
Thermal Characteristics, Total Device
@T
A
= 25°C unless otherwise specified
Characteristic Symbol Value Unit
Total Power Dissipation (Note 1) P D
250 mW
Thermal Resistance, Junction to Ambient (Note 1) R θJA 500
°C/W
Operating and Storage Temperature Range T J , T STG
-55 to +150 °C
Notes: 1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which
can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
2. No purposefully added lead. Halogen and Antimony Free.
3. Diodes Inc.’s “Green” policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.

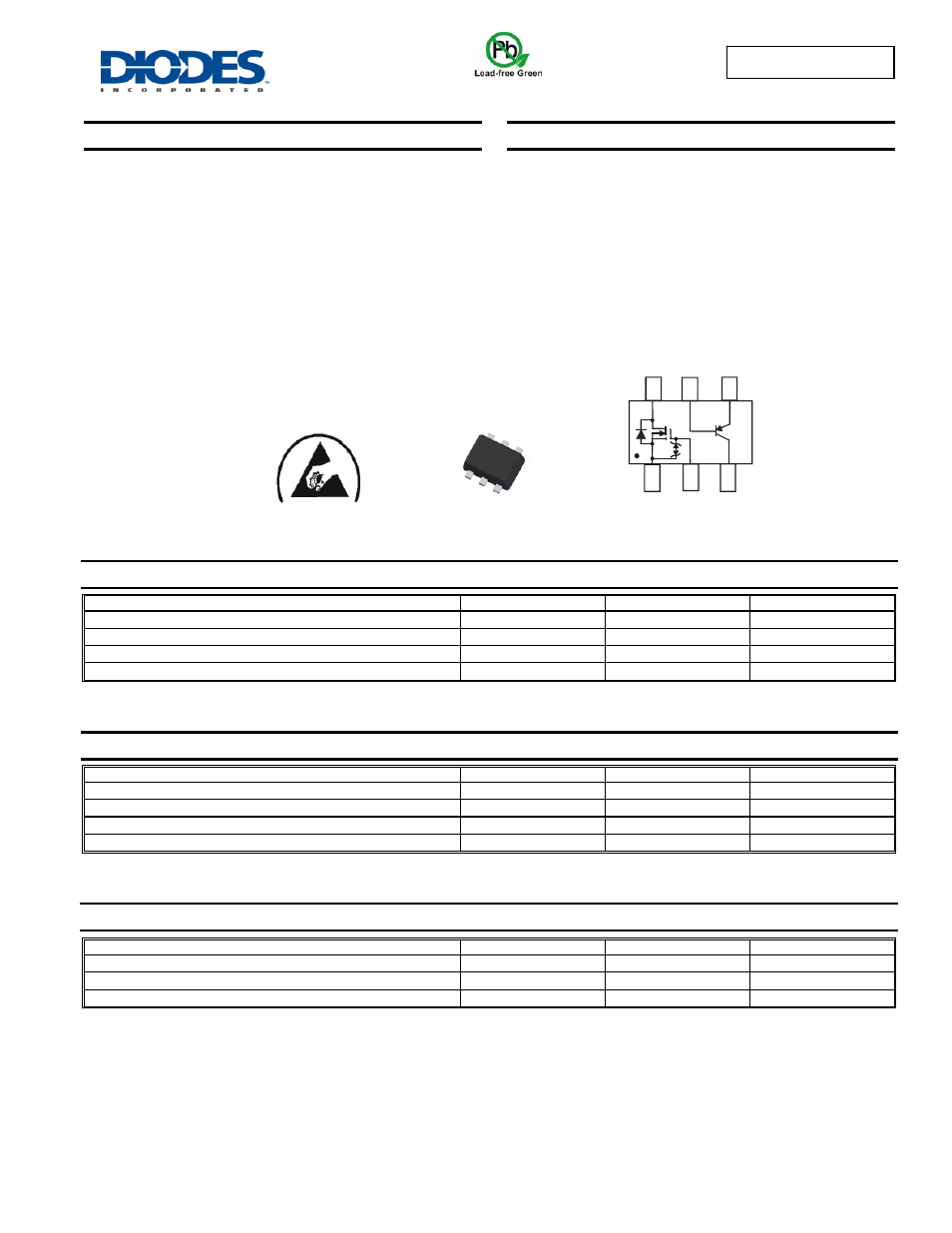

SOT-363
TOP VIEW
Internal Schematic
TOP VIEW ESD protected gate up to 2kV
E D
2
S
2
Q
1
G
2
Q
2
B
C
Please click here to visit our online spice models database.
