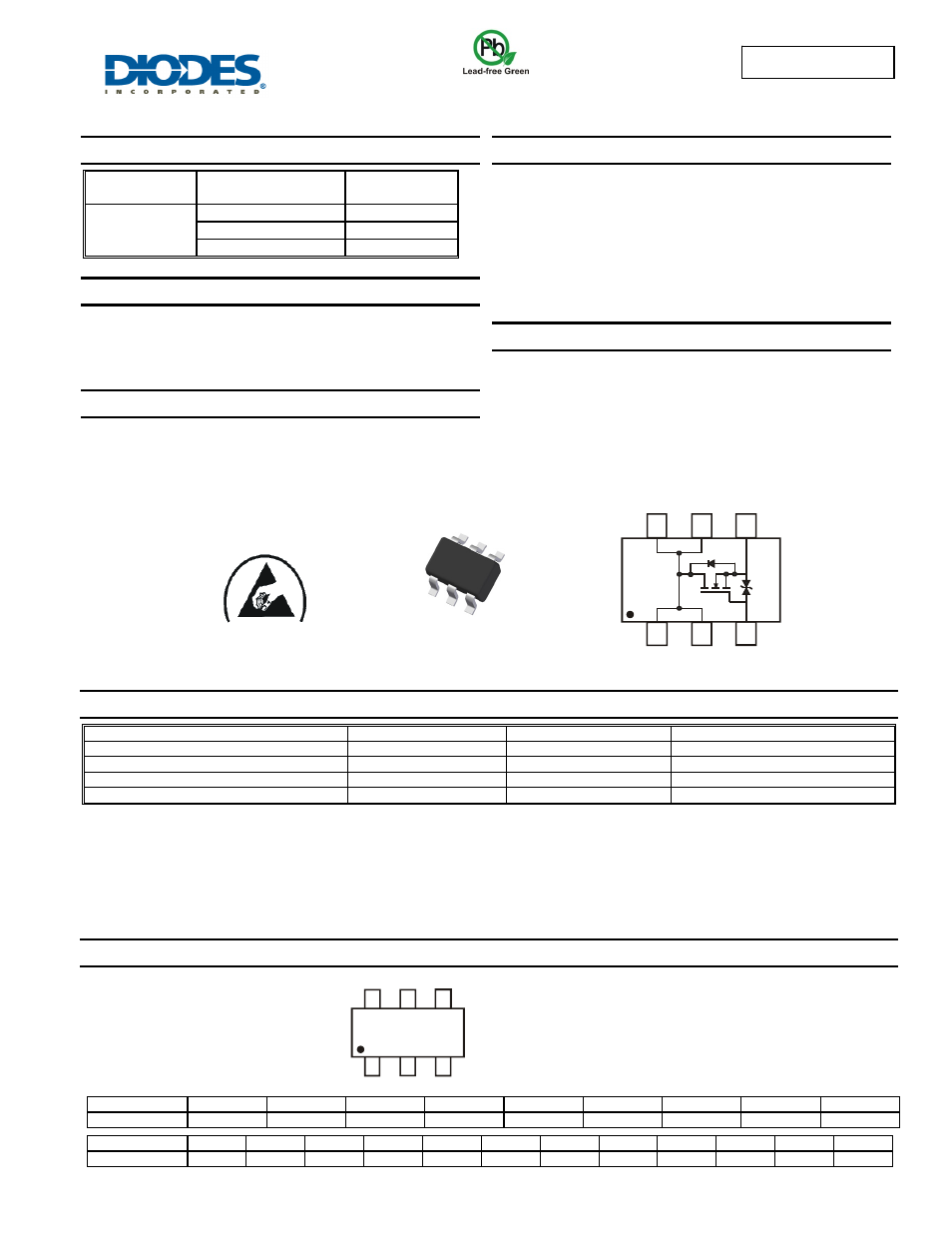

DMN3115UDM
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on) max
I
D
T
A
= +25°C
30V
60mΩ @ V
GS
= 4.5V
3.2A
80mΩ @ V
GS
= 2.5V
2.7A
130mΩ @ V
GS
= 1.5V
2.1A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
General Purpose Interfacing Switch
Power Management Functions
Analog Switch
Features
Low
On-Resistance
Very Low Gate Threshold Voltage
Low Input Capacitance
ESD
Protected
Gate
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOT26
Case Material – Molded Plastic, “Green” Molding Compound. UL
Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Terminal Connections: See Diagram
Weight: 0.015 grams (approximate)
Ordering Information
(Note 4 & 5)
Part Number
Qualification Case
Packaging
DMN3115UDM-7
Commercial
SOT26
3,000/Tape & Reel
DMN3115UDMQ-7
Automotive
SOT26
3,000/Tape & Reel
DMN3115UDM-13
Commercial
SOT26
10,000/Tape & Reel
DMN3115UDMQ-13
Automotive
SOT26
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to
5. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2007
2008
2009
2010
2011
2012
2013
2014
2015
Code U V W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT26
Top View
Top View
Internal Schematic
G1
S1
D3
D2
D4
D1
ESD PROTECTED
3N1 = Marking Code
YM = Date Code Marking
Y = Year (ex: U = 2007)
M = Month (ex: 9 = September)
3N1
YM
