DMN3051LDM
N-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low
On-Resistance
• 38
m
Ω @ V
GS
= 10V
• 64
m
Ω @ V
GS
= 4.5V
•
Low Input Capacitance
•
Fast Switching Speed
•
Lead Free By Design/RoHS Compliant (Note 2)
•
"Green" Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT-26
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram
• Terminals:
Finish
⎯ Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Marking Information: See Page 4
•
Ordering Information: See Page 4
•
Weight: 0.015 grams (approximate)
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Characteristic Symbol
Value
Units
Drain-Source Voltage
V
DSS
30 V
Gate-Source Voltage
V
GSS
±20 V
Drain Current (Note 1)
I
D
4.0 A
Pulsed Drain Current (Note 1)
I
DM
16 A
Thermal Characteristics
Characteristic
Symbol
Value
Units
Total Power Dissipation (Note 1)
P
D
900
mW
Thermal Resistance, Junction to Ambient
R
θJA
139
°C/W
Operating and Storage Temperature Range
T
J
, T
STG
-55 to +150
°C
Notes:
1. Device mounted on FR-4 PCB, minimum recommended pad layout on 2oz. Copper pads.
2. No purposefully added lead.
3. Diodes Inc.’s “Green” policy can be found on our webs

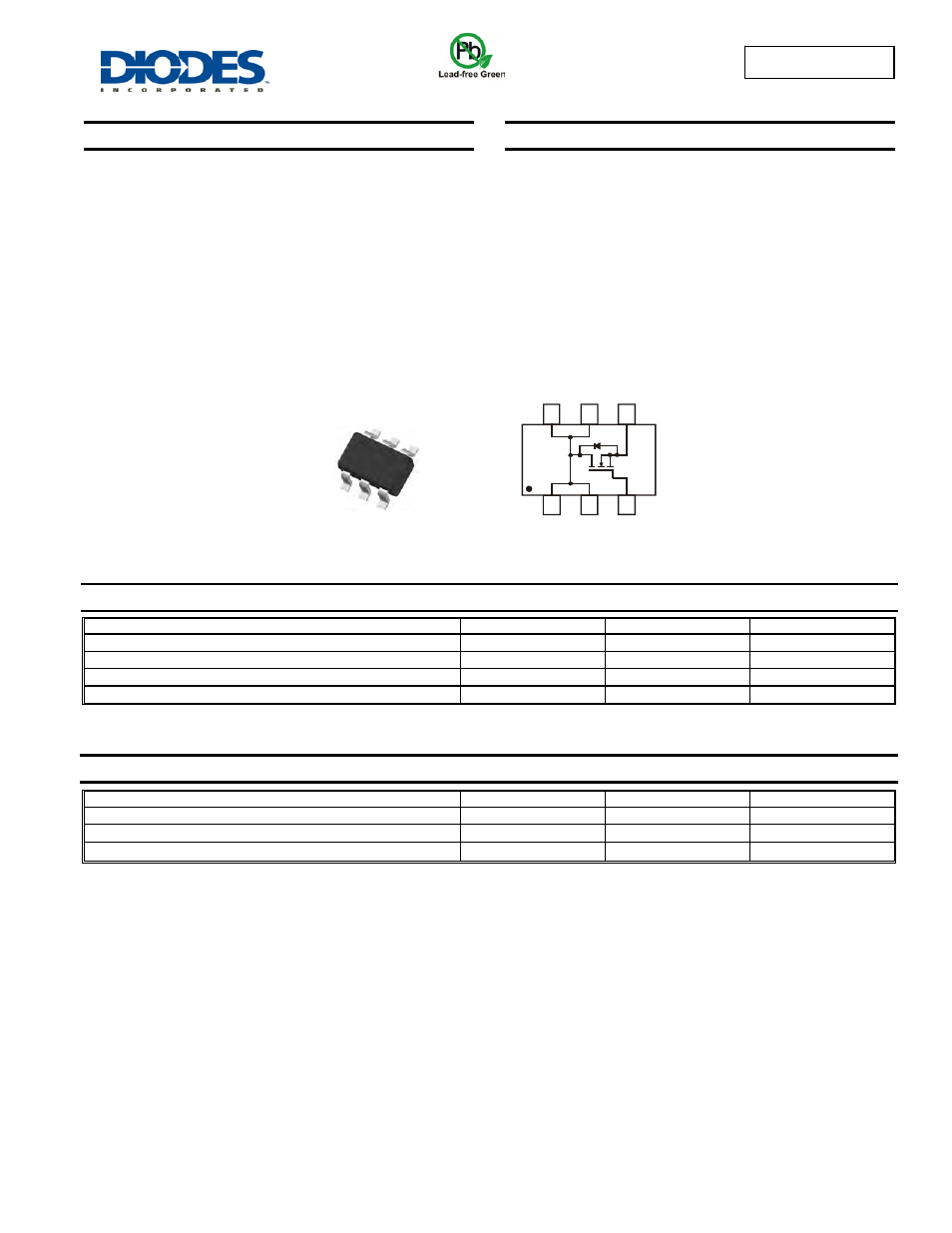

SOT-26
TOP VIEW
Internal Schematic
TOP VIEW
G
S
D
D
D
D
