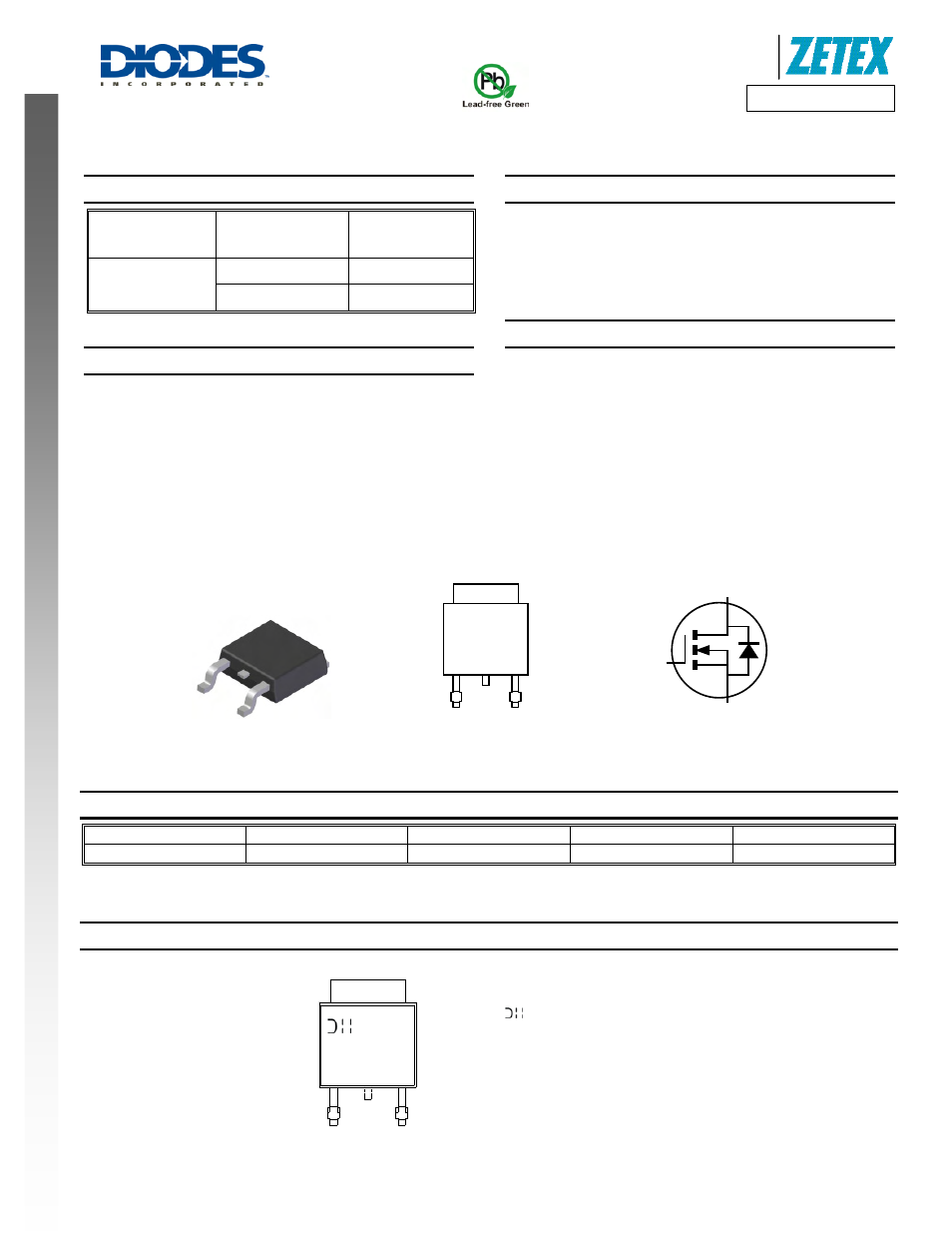

DMN3024LK3
30V TO252 (DPAK) N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(on)
I
D
T
A
= 25
°C
30V
24m
Ω @ V
GS
= 10V
14.4A
39m
Ω @ V
GS
= 4.5V
11.6A
Description and Applications
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
•
Backlighting
•
DC-DC Converters
•
Power management functions
Features and Benefits
•
Low on-resistance
•
Fast switching speed
•
Low gate drive
•
“Green” component and RoHS compliant (Note 1)
Mechanical Data
• Case:
TO-252
(DPAK)
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0 (Note 1)
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals Connections: See Diagram
•
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Marking Information: See Below
•
Ordering Information: See Below
•
Weight: 0.33 grams (approximate)
Ordering Information
(Note 1)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
DMN3024LK3-13 N3024L
13
16
2,500
Note:
1. Diodes, Inc. defines “Green” products as those which are Eu RoHS compliant and contain no halogens or antimony compounds; further information
about Diodes Inc.’s “Green” Policy can be found on our website. For packaging details, go to our website.
Marking Information
TOP VIEW
PIN OUT -TOP VIEW
D
S
G
Equivalent Circuit
G
S
D
D
= Manufacturer’s Marking
N3024L = Product Type Marking Code
YYWW = Date Code Marking
YY = Year (ex: 09 = 2009)
WW = Week (01-52)
YYWW
N3024L
