Diodes DMG7430LFG User Manual
Product summary, Description and applications, Features and benefits

DMG7430LFG
Document number: DS35497 Rev. 5 - 2
1 of 7
February 2012
© Diodes Incorporated
DMG7430LFG
ADVAN
CE I
N
F
O
RM
ATI
O
N
POWERDI is a registered trademark of Diodes Incorporated
N-CHANNEL ENHANCEMENT MODE MOSFET
POWERDI
®
Product Summary
V
(BR)DSS
R
DS(ON)
max
I
D
max
T
A
= 25°C
30V
11m
Ω @ V
GS
= 10V
10.5A
15m
Ω @ V
GS
= 4.5V
9.2A
Description and Applications
This MOSFET has been designed to minimize the on-state resistance
(R
DS(on)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
• Backlighting
•
Power Management Functions
• DC-DC
Converters
Features and Benefits
• Low
R
DS(ON)
– ensures on state losses are minimized
•
Small form factor thermally efficient package enables higher
density end products
•
Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
•
" Green” component and RoHS compliant (Note 1)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
POWERDI
®
3333-8
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminal
Connections
Indicator: See diagram
• Terminals:
Finish
⎯ NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.072 grams (approximate)
Ordering Information
(Note 2)
Part Number
Case
Packaging
DMG7430LFG-7
POWERDI
®
3333-8
2000/Tape & Reel
DMG7430LFG-13
POWERDI
®
3333-8
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2). All applicable RoHS exemptions applied.
2. For packaging details, go to our website at

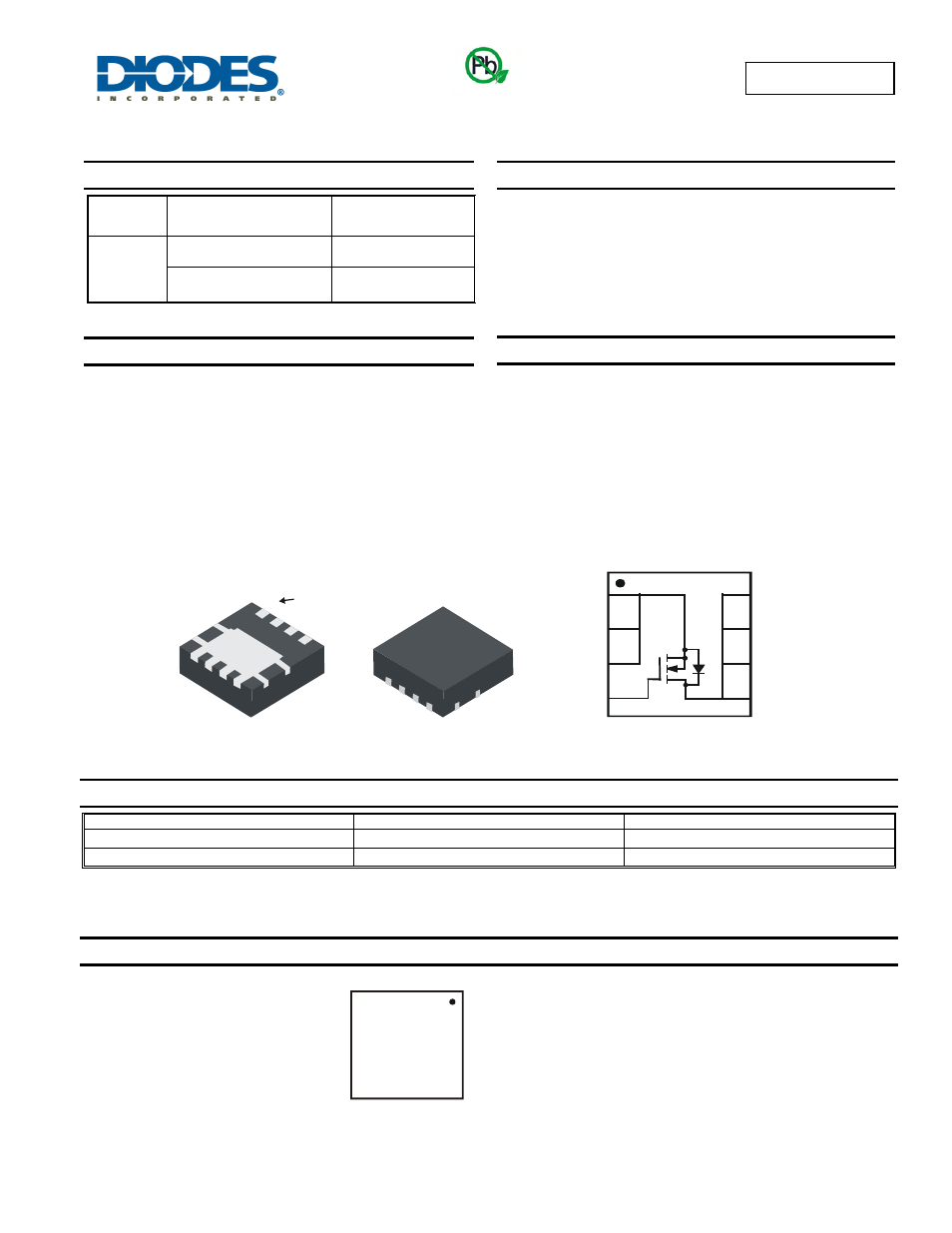

Marking Information
1
2
3
4
8
7
6
5
Top View
Internal Schematic
Top View
Bottom View
POWERDI
®
3333-8
G73
YYW
W
G73 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last digit of year (ex: 11 = 2011)
WW = Week code (01 ~ 53)
Green
S
S
S
G
D
D
D
D
Pin 1
