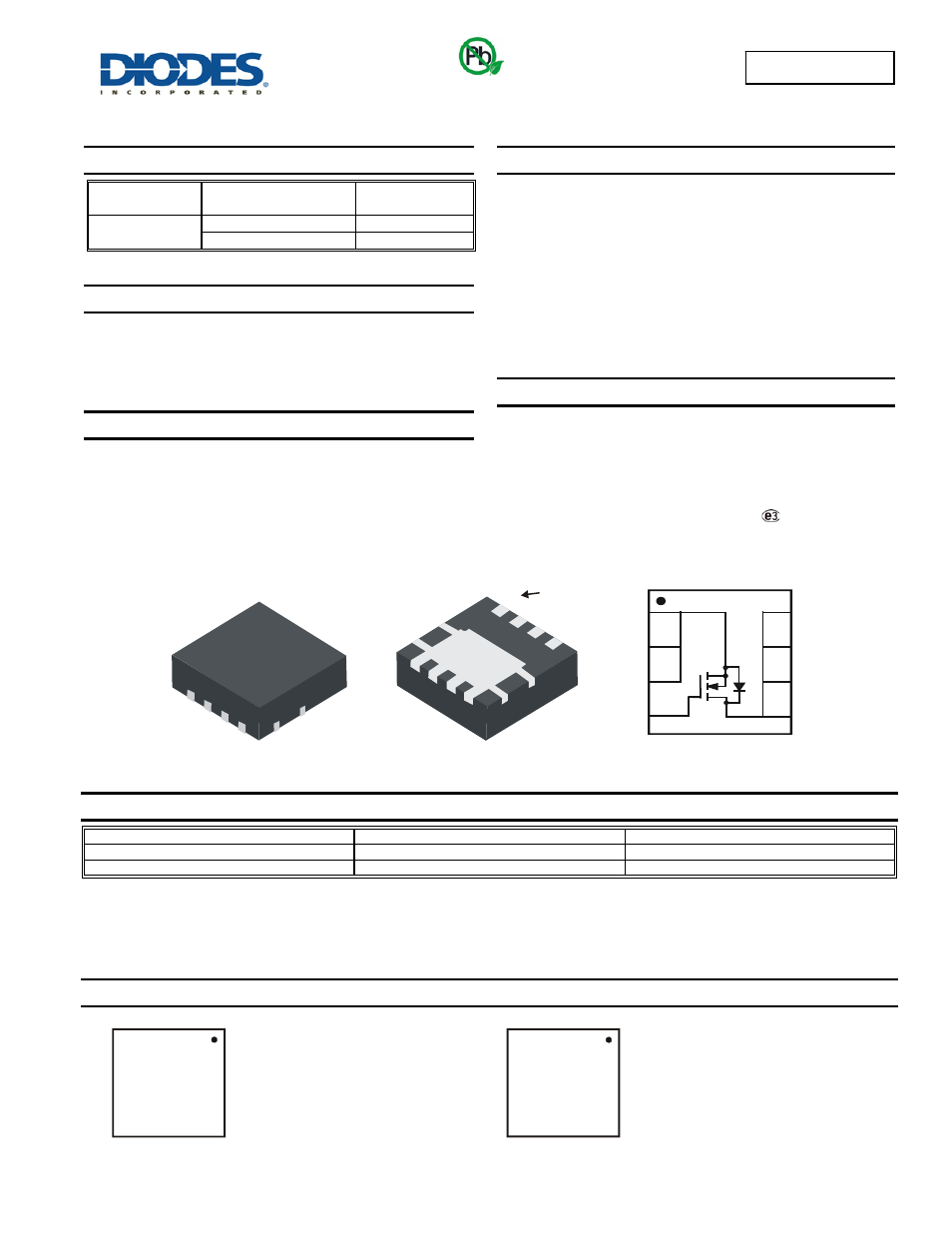

Diodes DMG7410SFG User Manual
Dmg7410sfg new prod uc t, Product summary, Description

POWERDI is a registered trademark of Diodes Incorporated.
DMG7410SFG
Document number: DS35108 Rev. 7 - 2
1 of 7
October 2012
© Diodes Incorporated
DMG7410SFG
NEW PROD
UC
T
N-CHANNEL ENHANCEMENT MODE MOSFET
POWERDI
®
Product Summary
V
(BR)DSS
R
DS(ON)
I
D
T
A
= 25°C
30V
20m
Ω @ V
GS
= 10V
8.0 A
27m
Ω @ V
GS
= 4.5V
6.5 A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(on)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
• Backlighting
• DC-DC
Converters
•
Power management functions
Features
• Low
R
DS(ON)
– ensures on state losses are minimized
•
Small form factor thermally efficient package enables higher
density end products
•
Occupies just 33% of the board area occupied by SO-8 enabling
smaller end product
•
100% UIS (Avalanche) rated
•
100% Rg tested
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
POWERDI3333-8
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: See Diagram Below
• Terminals:
Finish
⎯ Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.072 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMG7410SFG-7
POWERDI3333-8
2000 / Tape & Reel
DMG7410SFG-13
POWERDI3333-8
3000 / Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Bottom View
Top View
Internal Schematic
Top View
POWERDI3333-8
G74 = Product marking code
YYWW = Date code marking
YY = Last digit of year (ex: 10 for 2010)
WW = Week code (01 – 53)
1
2
3
4
8
7
6
5
G74
YYW
W
N39 = Product marking code
YYWW = Date code marking
YY = Last digit of year (ex: 10 for 2010)
WW = Week code (01 – 53)
S
S
S
G
D
D
D
D
Pin 1
N39
YYW
W
Green
