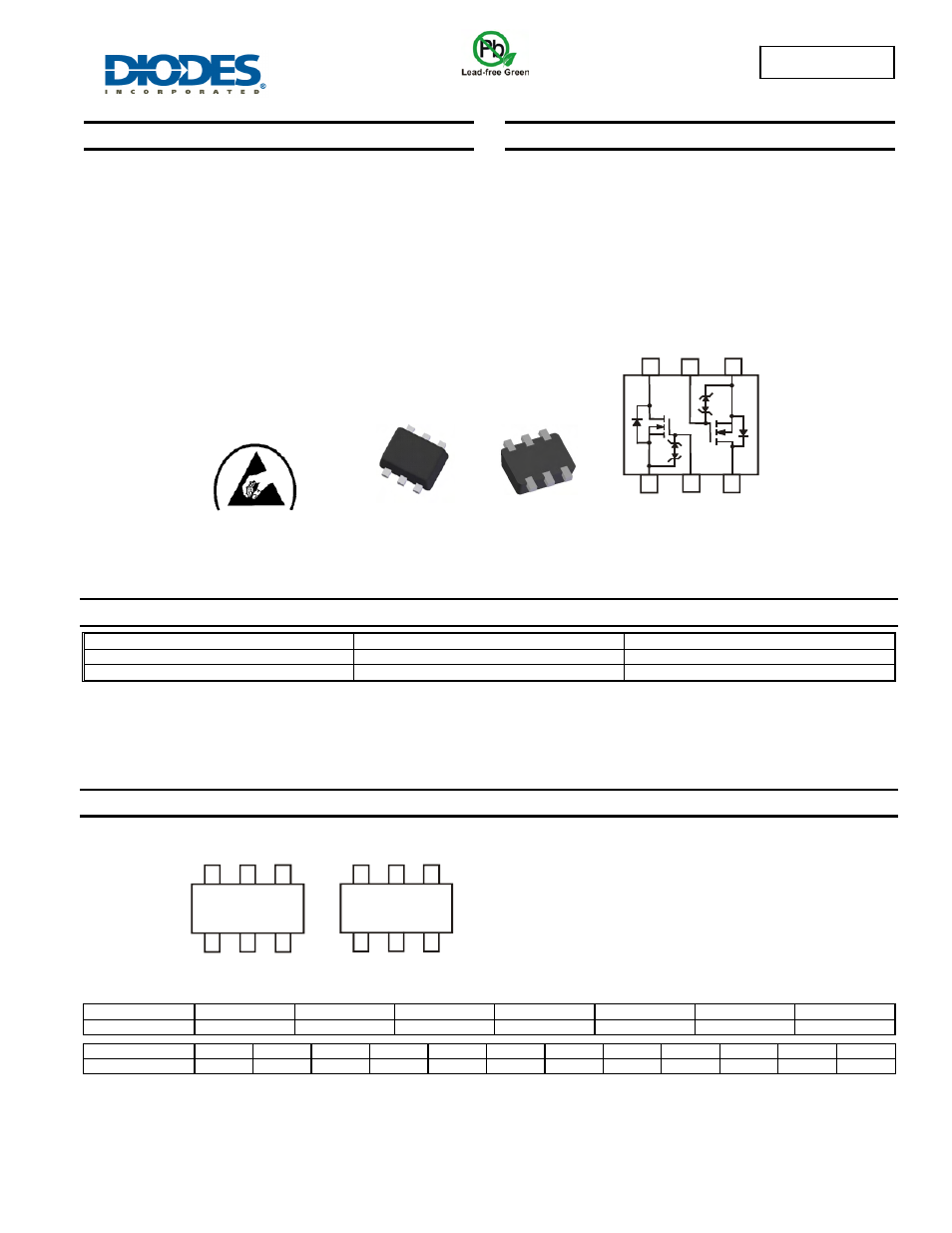

DMN2400UV
Document number: DS31852 Rev. 7 - 2
1 of 6
January 2011
© Diodes Incorporated
DMN2400UV
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low
On-Resistance
•
Low Gate Threshold Voltage
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
ESD Protected up to 2kV
•
Lead Free By Design/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
•
Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
• Case:
SOT-563
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals:
Finish
⎯ Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram
•
Weight: 0.006 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DMN2400UV-7
SOT-563
3,000/Tape & Reel
DMN2400UV-13
SOT-563
10,000/Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc.’s “Green” policy can be found on our w
Marking Information
Date Code Key
Year
2009
2010
2011
2012
2013
2014
2015
Code
W X Y Z A B C
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
SOT-563
Top View
Top View
Internal Schematic
ESD PROTECTED TO 2kV
Bottom View
S
1
D
1
D
2
S
2
G
1
G
2
24N
YM
24N and NAB = Marking Code
YM = Date Code Marking
Y = Year (ex: W = 2009)
M = Month (ex: 9 = September)
NAB YM
