DMN2040LTS
Document number: DS31941 Rev. 2 - 2
5 of 6
www.diodes.com
October 2009
© Diodes Incorporated
DMN2040LTS
NEW PROD
UC
T

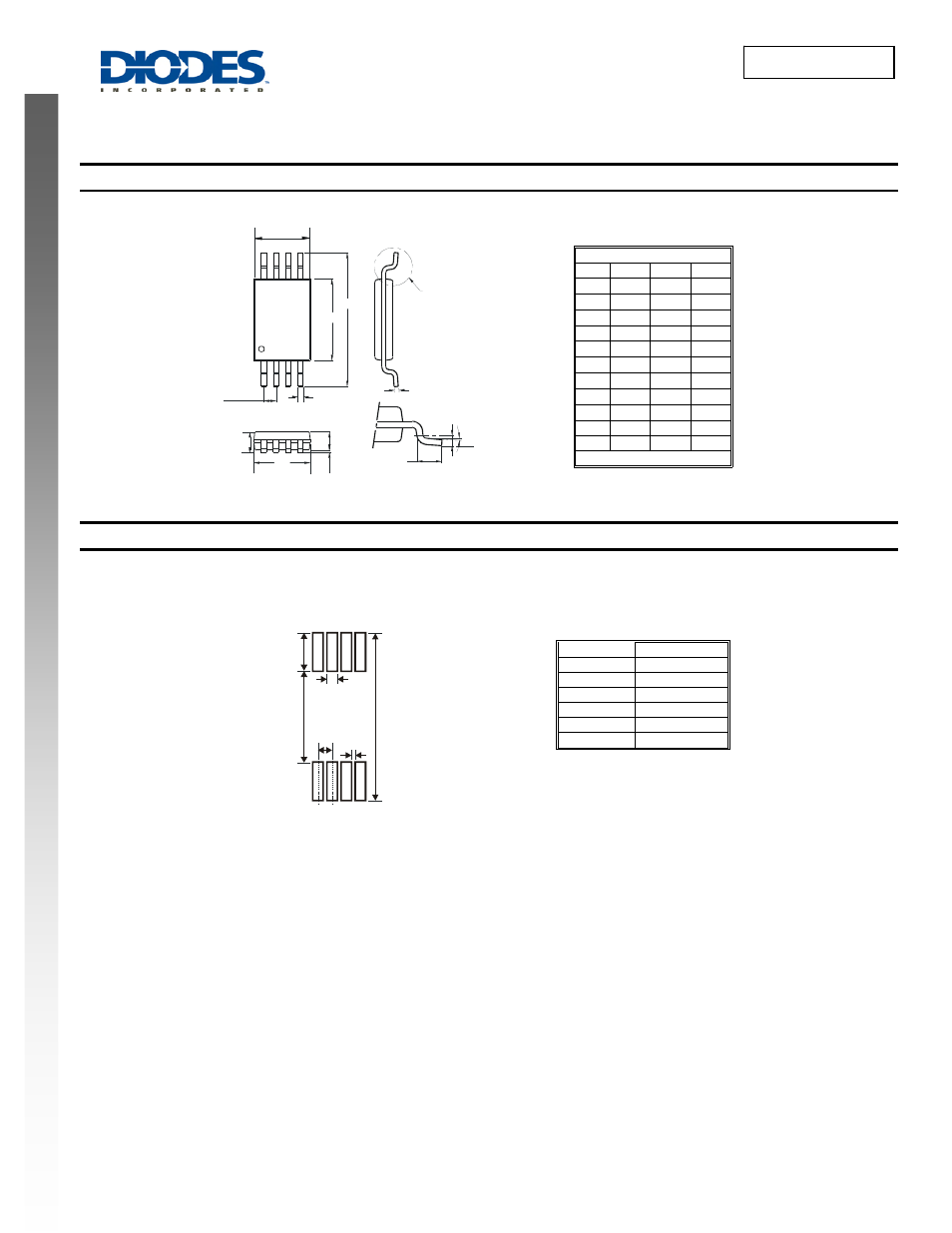

Package Outline Dimensions
Suggested Pad Layout
TSSOP-8L
Dim Min Max Typ
a 0.09 − −
A − 1.20 −
A1 0.05 0.15 −
A2 0.825 1.025 0.925
b 0.19 0.30 −
c 0.09 0.20 −
D 2.90 3.10 3.025
e − − 0.65
E − − 6.40
E1 4.30 4.50 4.425
L 0.45 0.75 0.60
All Dimensions in mm
Dimensions Value (in mm)
X 0.45
Y 1.78
C1 7.72
C2 0.65
C3 4.16
G 0.20
L
Gauge plane
See Detail C
D
E
A1
A2 A
e
a
Detail C
E1
b
D
c
Y
C3 C1
X
C2
G
