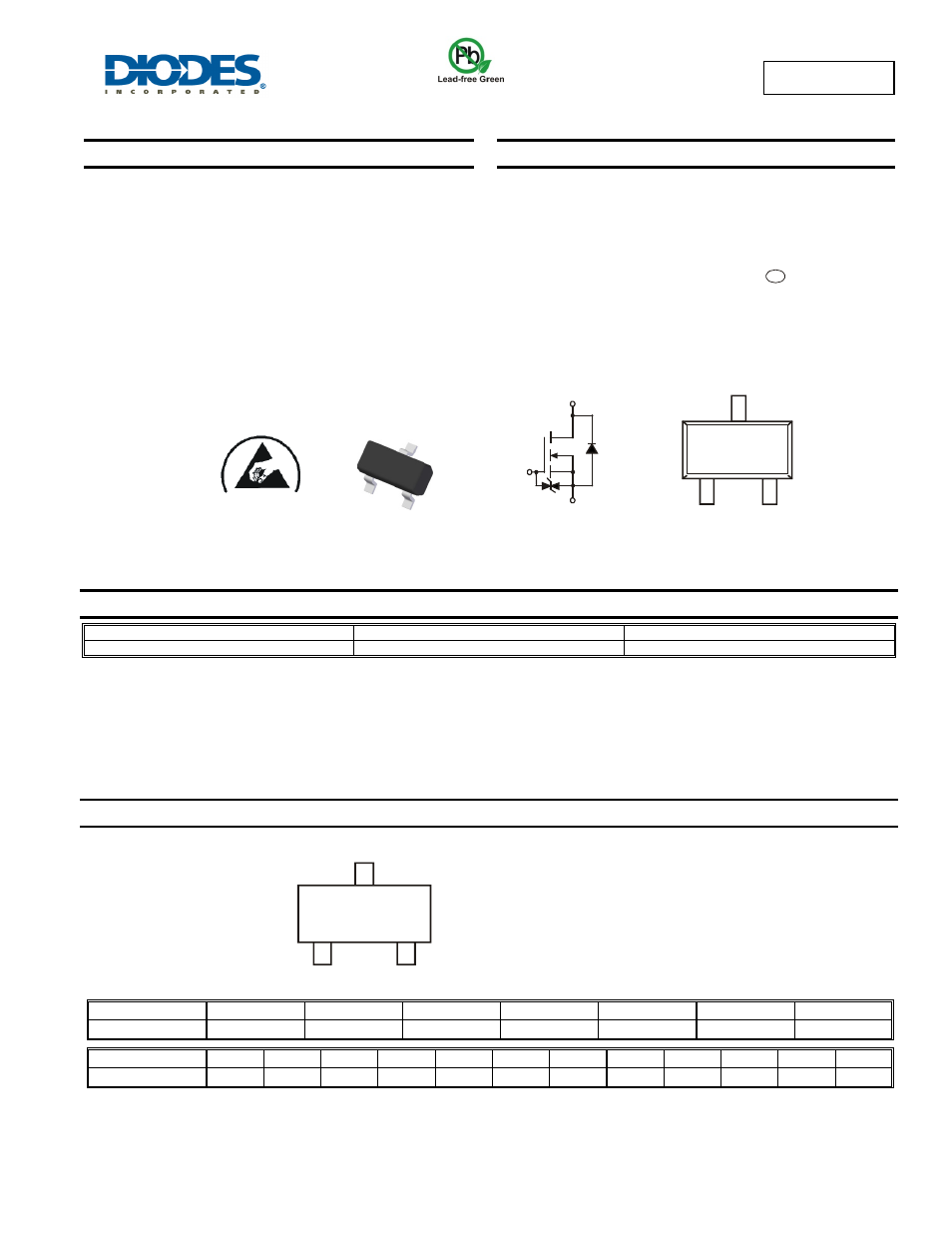

DMN2005K
Document number: DS30734 Rev. 7 - 2
1 of 6
November 2013
© Diodes Incorporated
DMN2005K
N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Features
Low
On-Resistance
Very Low Gate Threshold Voltage, 0.9V Max.
Fast Switching Speed
Low Input/Output Leakage
Ultra-Small Surface Mount Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
ESD Protected Gate
Mechanical Data
Case:
SOT23
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminal Connections: See Diagram
Terminals:
Finish
Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Marking Information: See Page 3
Ordering & Date Code Information: See Below
Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMN2005K-7
SOT23
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2006
2007
2008
2009
2010
2011
2012
Code T U V W X Y Z
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
e3
ESD protected
TOP VIEW
Source
Body
Diode
Gate
Gate
Protection
Diode
Drain
Equivalent Circuit
G
S
D
TOP VIEW
SOT23
DM = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: T = 2006
M = Month ex: 9 = September
DM
YM
