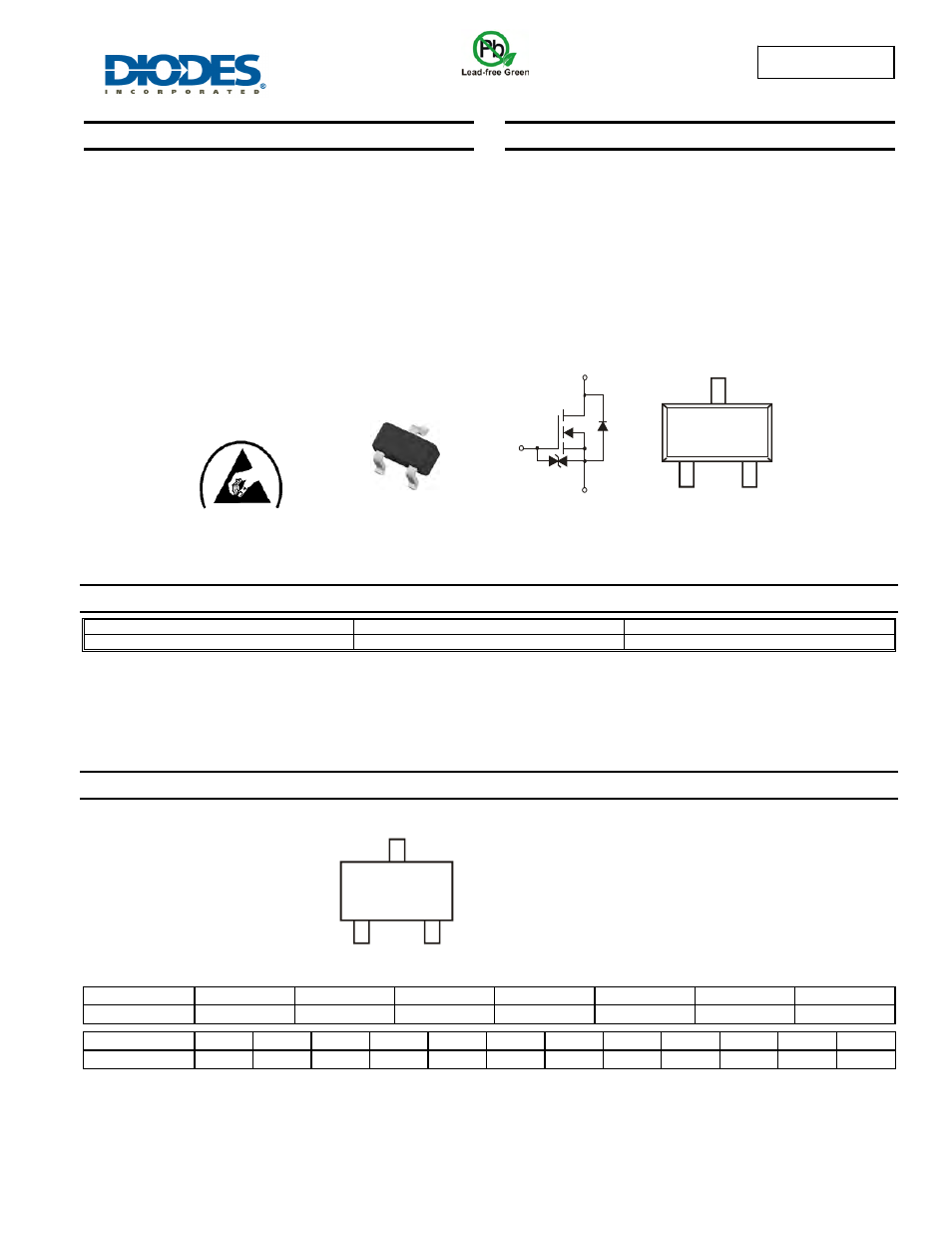

DMN2004TK
Document number: DS30936 Rev. 5 - 2
1 of 6
November 2010
© Diodes Incorporated
DMN2004TK
NEW PROD
UC
T
N-CHANNEL ENHANCEMENT MODE MOSFET
Features
• Low
On-Resistance
•
Low Gate Threshold Voltage
•
Low Input Capacitance
•
Fast Switching Speed
•
Low Input/Output Leakage
•
ESD Protected up to 2kV
•
Lead Free By Design/RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
•
Qualified to AEC-Q101 standards for High Reliability
Mechanical Data
• Case:
SOT-523
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
• Terminals:
Finish
⎯ Matte Tin annealed over Alloy 42
leadframe. Solderable per MIL-STD-202, Method 208
•
Terminal Connections: See Diagram
•
Weight: 0.002 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DMN2004TK-7
SOT-523
3000/Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc.’s “Green” policy can be found on our w
Marking Information
Date Code Key
Year
2006
2007
2008
2009
2010
2011
2012
Code T U V W X Y Z
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code
1 2 3 4 5 6 7 8 9 O N D
SOT-523
Top View
Equivalent Circuit
Top View
Source
Gate
Protection
Diode
Gate
Drain
G
S
D
ESD PROTECTED TO 2kV
NAB = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: T = 2006)
M = Month (ex: 9 = September)
NAB
YM
