DMG3414U
Document number: DS31739 Rev. 4 - 2
1 of 6
www.diodes.com
September 2013
© Diodes Incorporated
DMG3414U
NEW PROD
UC
T
N-CHANNEL ENHANCEMENT MODE MOSFET
Features
 Low On-Resistance
 25mΩ @ V
GS
= 4.5V
 29mΩ @ V
GS
= 2.5V
 37mΩ @ V
GS
= 1.8V
 Low Input Capacitance
 Fast Switching Speed
 Low Input/Output Leakage
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case: SOT23
 Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020D
 Terminals: Finish  Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
 Terminals Connections: See Diagram Below
 Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
DMG3414U-7 SOT23 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2009 2010 2011 2012 2013 2014 2015
Code W X Y Z A B C
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D

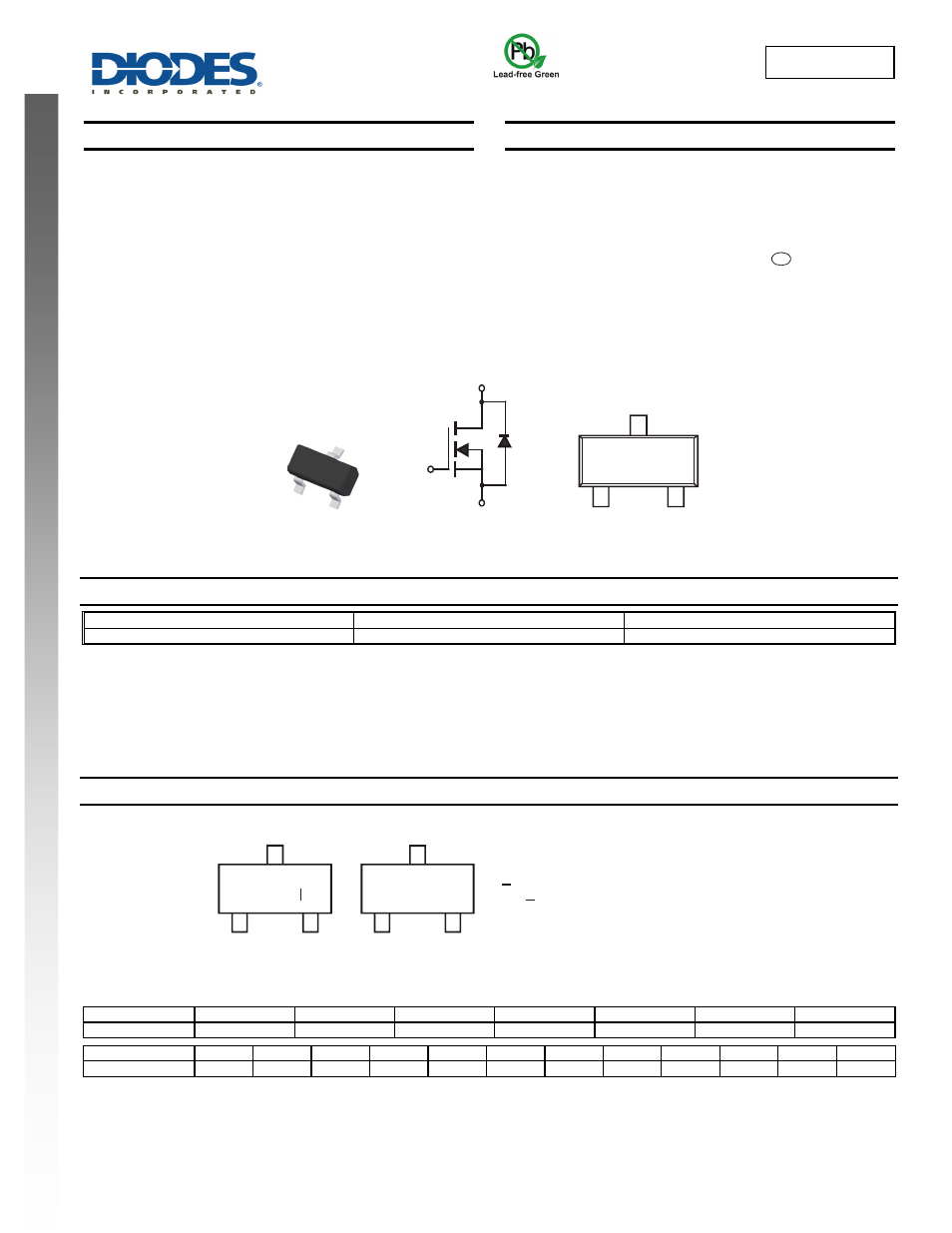

TOP VIEW Internal Schematic TOP VIEW
D
G S
Source
Gate
Drain
MN8 = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
= Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or = Year (ex: A = 2013)
M = Month (ex: 9 = September)
MN8
YM
Chengdu A/T Site Shanghai A/T Site
e3
MN8
YM
Y
YM
