DDTC (R1-ONLY SERIES) E

Document number: DS30315 Rev. 8 - 2

4 of 5

www.diodes.com

December 2011

© Diodes Incorporated

DDTC (R1-ONLY SERIES) E







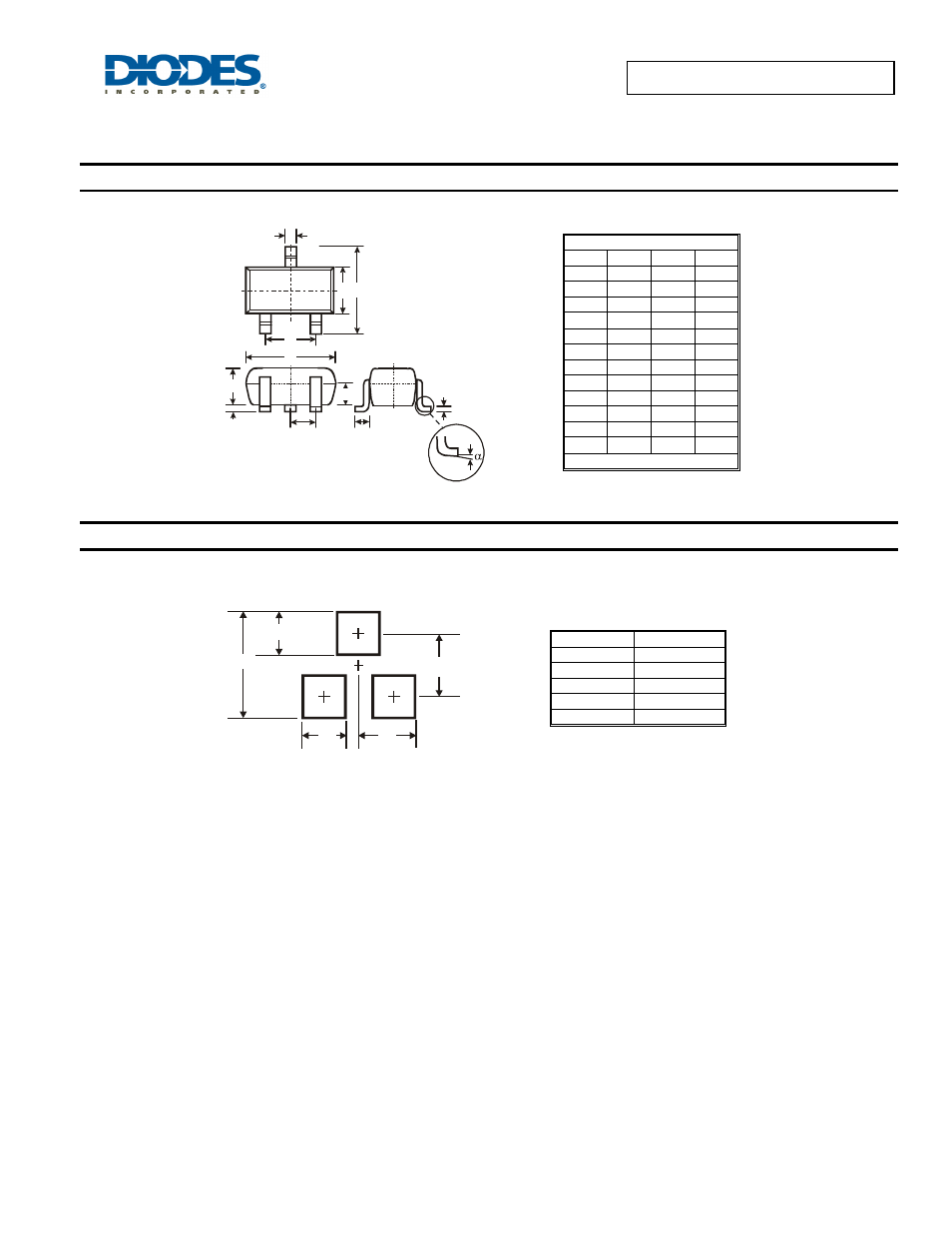

Package Outline Dimensions























Suggested Pad Layout
















SOT523

Dim Min Max Typ

A

0.15 0.30 0.22

B

0.75 0.85 0.80

C

1.45 1.75 1.60

D

0.50

G

0.90 1.10 1.00

H

1.50 1.70 1.60

J

0.00 0.10 0.05

K

0.60 0.80 0.75

L

0.10 0.30 0.22

M

0.10 0.20 0.12

N

0.45 0.65 0.50

α

0° 8°

All Dimensions in mm

Dimensions

Value (in mm)

Z

1.8

X

0.4

Y

0.51

C

1.3

E

0.7

A

M

J

L

D

B C

H

K

G

N

X

E

Y

C

Z
