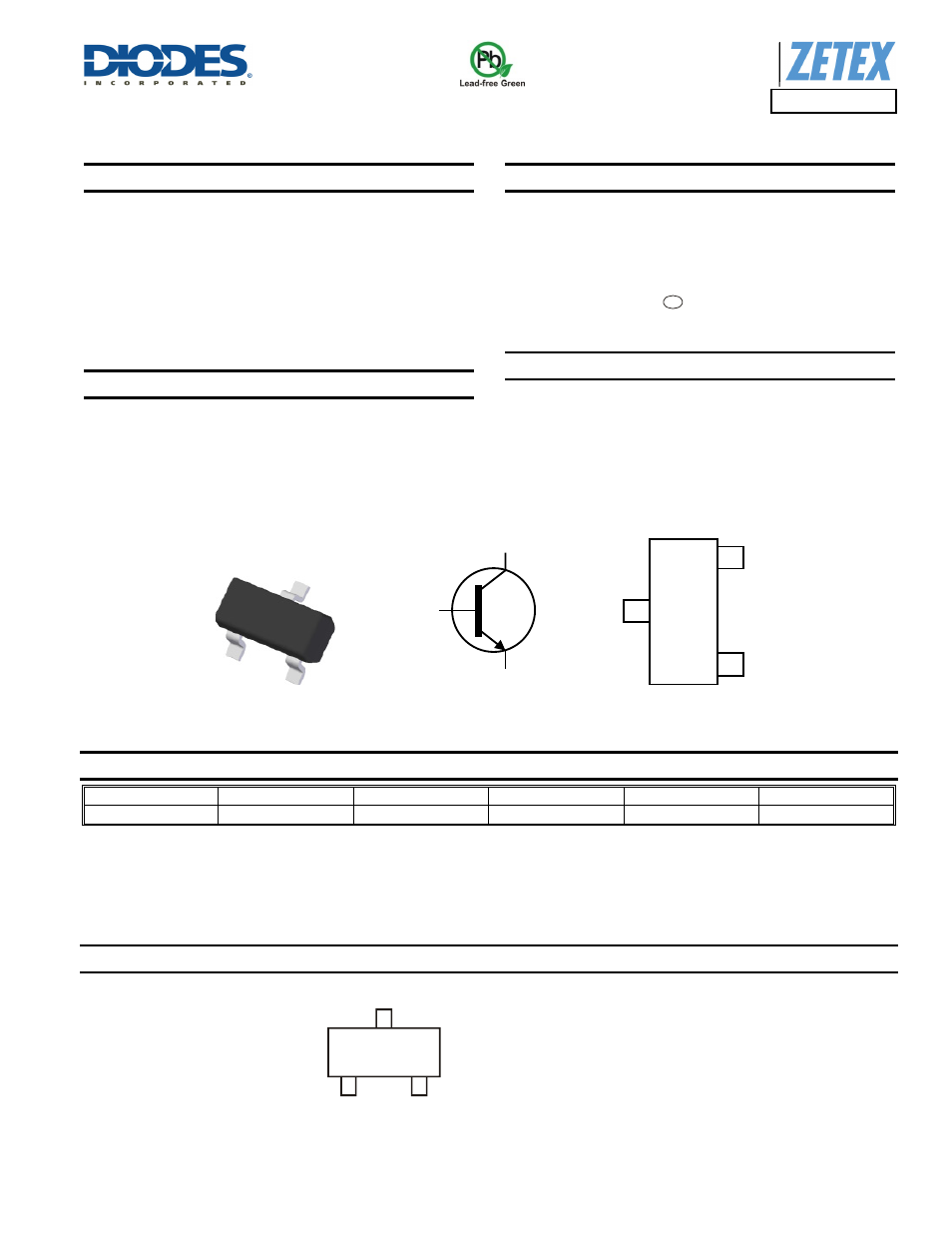

FMMT413
Datasheet Number: DS33083 Rev.4 - 2
1 of 6
February 2014
© Diodes Incorporated
FMMT413
A Product Line of
Diodes Incorporated
NPN AVALANCHE TRANSISTOR IN SOT23
Features
• Avalanche
Transistor
•
50A Peak Avalanche Current (Pulse width = 20ns)
• BV
CES
> 150V
• BV
CEO
> 50V
•
Specifically designed for Avalanche mode operation
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Description
The FMMT413 is an NPN silicon planar bipolar transistor designed for
operating in avalanche mode. Tight process control and low
inductance packaging combine to produce high current pulses with
fast edges.
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-
STD-202, Method 208
•
Weight: 0.008 grams (Approximate)
Applications
•
Laser Diode Drivers for Ranging and Measurement (LIDAR)
•
Automotive Radar Systems
Adaptive Cruise Control
Collision Avoidance System
•
Fast Edge Switch Generator
•
High Speed Pulse Generators
Ordering Information
(Note 4)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FMMT413TD AEC-Q101
413
7
8
500
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
413 = Product Type Marking Code
e3
Top View
Pin-Out
Top View
Device Symbol
C
E
B
C
E
B
SOT23
589
413
