Diodes FMMT560 User Manual
Fmmt560, Features, Mechanical data
FMMT560
Document Number: DS33102 Rev. 6 - 2
1 of 7
March 2014
© Diodes Incorporated
A Product Line of
Diodes Incorporated

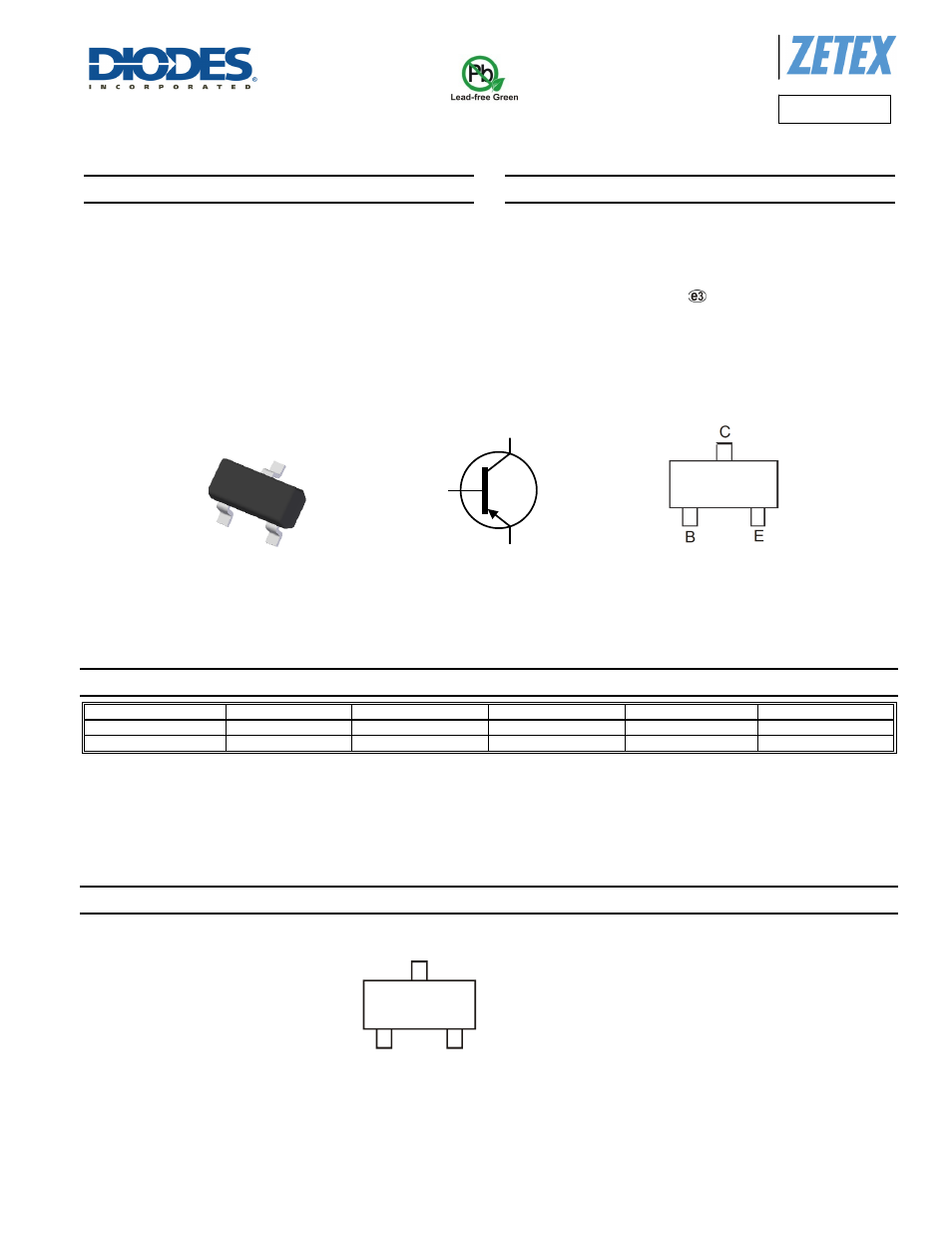

FMMT560
500V PNP HIGH VOLTAGE TRANSISTOR IN SOT23
Features
BV
CEO
> -500V
I
C
= -150mA high Continuous Collector Current
I
CM
Up to 500mA Peak Pulse Current
Excellent
h
FE
Characteristics up to I
C
= 100mA
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOT23
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight 0.008 grams (approximate)
Ordering Information
(Note 4)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
FMMT560TA AEC-Q101
560
7
8
3,000
FMMT560TC AEC-Q101
560
13
8
10,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
560 = Product Type Marking Code
C
E
B
Top View
SOT23
Device Symbol
Top View
Pin-Out
560
