Diodes DXT458P5 User Manual
Dxt458p5, New prod uc t, Features

DXT458P5
Document number: DS32067 Rev. 1 - 2
1 of 7
March 2010
© Diodes Incorporated
DXT458P5
PowerDI is a registered trademark of Diodes Incorporated.
ADVAN
CE I
N
F
O
RM
ATI
O
N
A Product Line of
Diodes Incorporated
NEW PROD
UC
T
NPN SILICON PLANAR HIGH VOLTAGE TRANSISTOR
PowerDI
®
5
Features
•
43% smaller than SOT223; 60% smaller than TO252
•
Maximum height just 1.1mm
•
Rated up to 2.8W
•
V
CEO
= 400V
•
I
C
= 300mA; I
CM
= 1A
•
Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)
•
“Green” Device (Note 2)
Applications
•
PSU start up switch
• Telecom
switch
Mechanical Data
• Case:
PowerDI
®
5
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
•
Weight: 0.093 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
DXT458P5-13 PowerDI
®
5
5000/Tape & Reel
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc’s “Green” Policy can be found on our websit
3. For packaging details, go to our website at
Marking Information

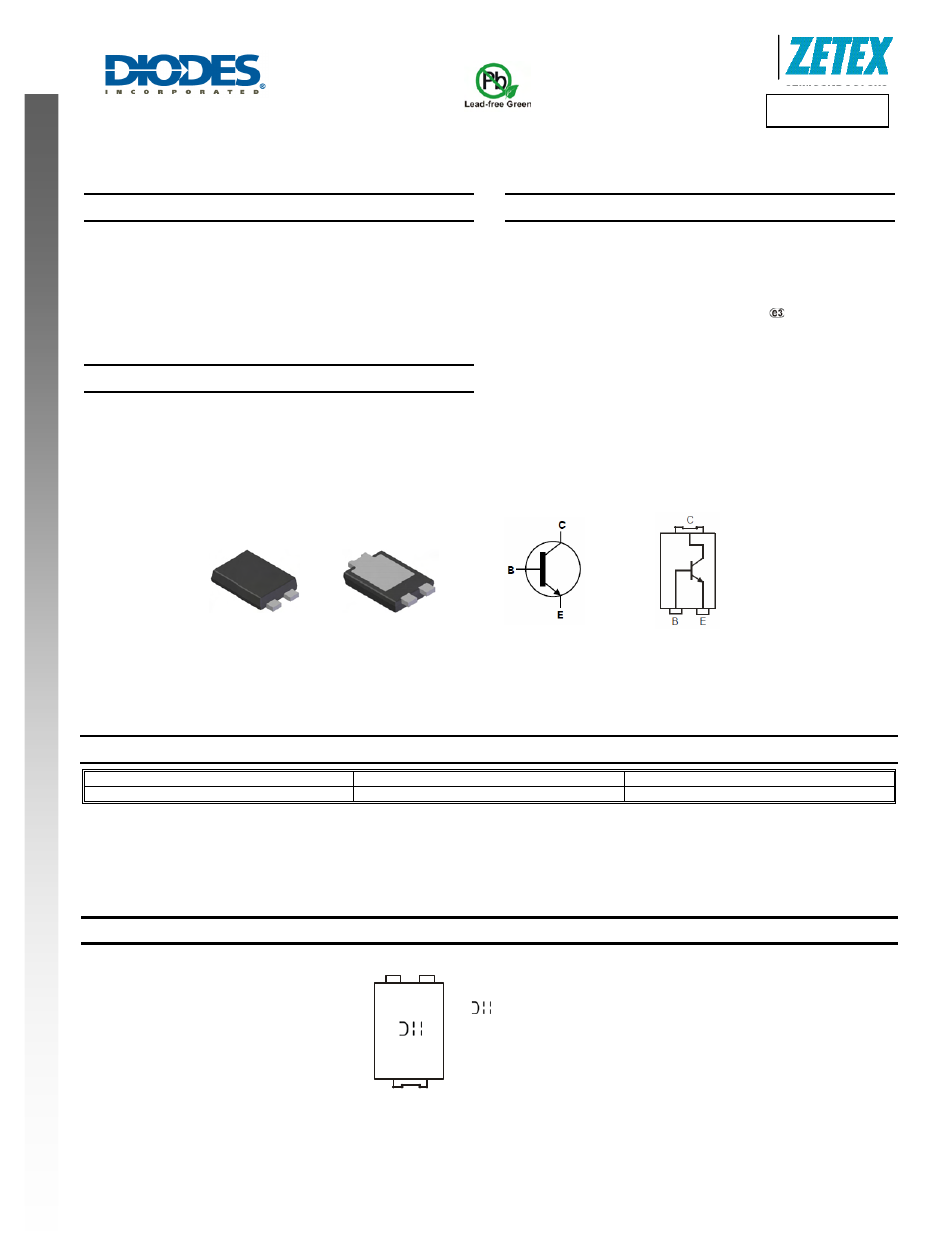

Top View
Bottom View
Pin-out diagram
Device Schematic
DXT458 = Product Type Marking Code
= Manufacturers’ Code Marking
K = Factory Designator
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 09 for 2009)
WW = Week code (01 to 53)
YYWWK
DXT458
