FZT853
Document Number DS33175 Rev. 3 - 2
1 of 7
www.diodes.com
January 2013
© Diodes Incorporated
FZT853
A Product Line of
Diodes Incorporated
100V NPN MEDIUM POWER TRANSISTOR IN SOT223
Features
• BV
CEO
> 100V
• I
C
= 6A high Continuous Collector Current
• I
CM
= 10A Peak Pulse Current
• Low Saturation Voltage V
CE(sat)
< 150mV @ 2A
• R
CE(sat)
= 50mΩ for a Low Equivalent On-Resistance
• h
FE
Specified Up to 10A for a High Gain Hold Up
• Complementary PNP Type: FZT953
• Lead-Free Finish; RoHS compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT223
• Case Material: Molded Plastic. “Green” Molding Compound.
• UL Flammability Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
• Weight: 0.112 grams (approximate)
Ordering Information
(Note 4)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
FZT853TA AEC-Q101 FZT853 7 12 1,000
Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com

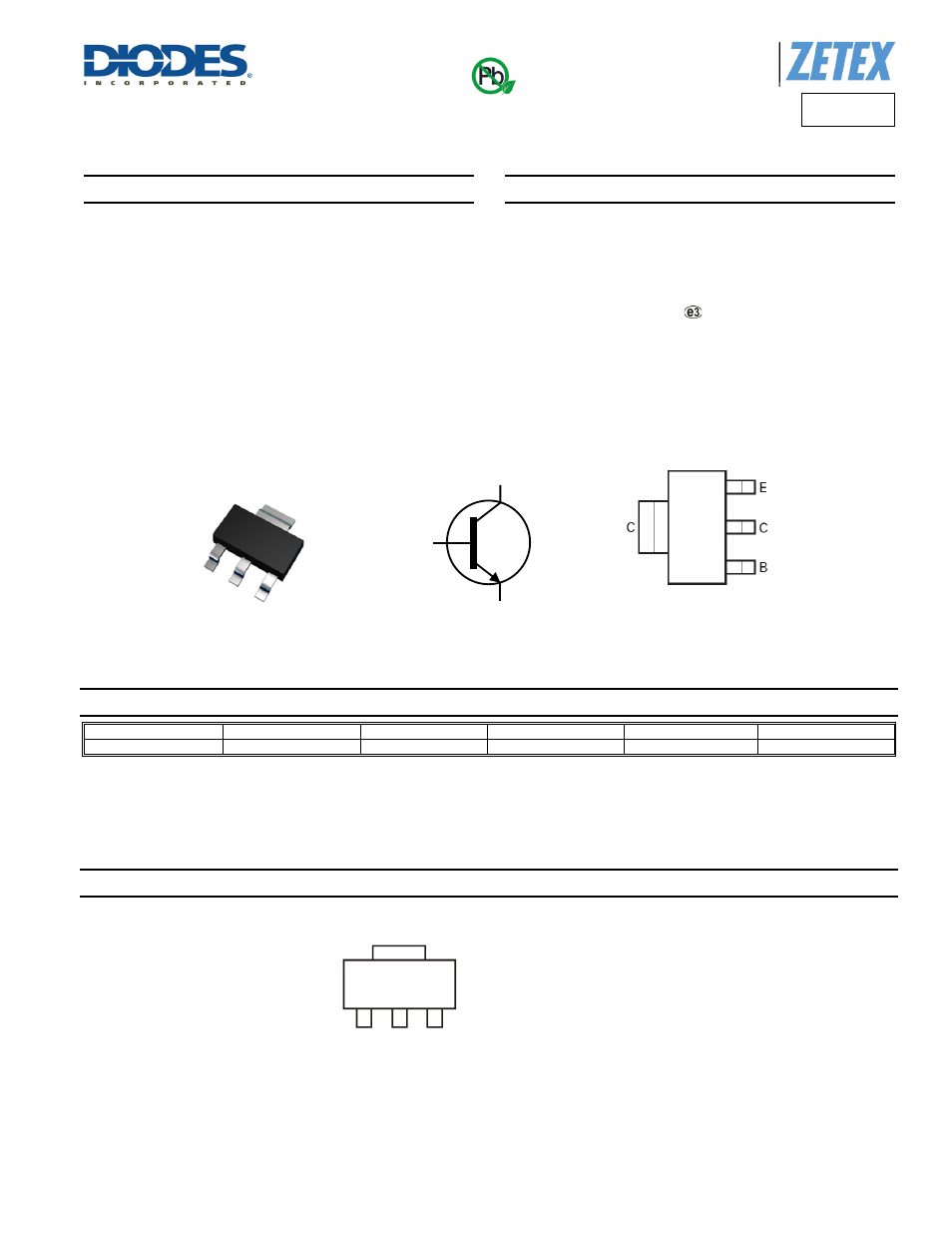

Marking Information
FZT853 = Product Type Marking Code
SOT223
Top View
Device Symbol
Top View
Pin-Out
Green
FZT
651
FZT
853
C
E
B
